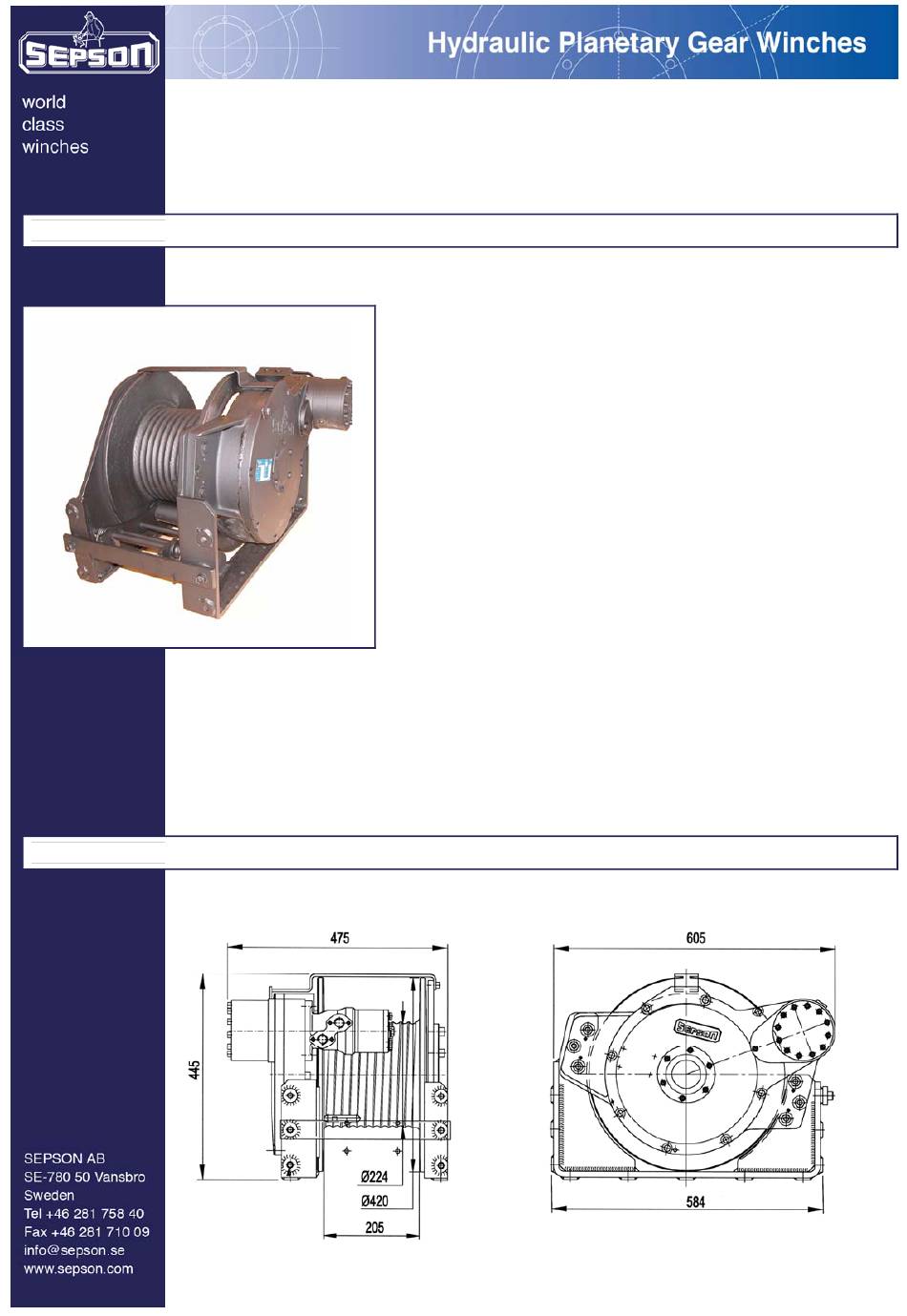

Dimensional drawing (dimensions in mm)
Pneumatic freespool clutch
10 TONNES WINCH
Pulling force
- bottom rope layer
- top rope layer
Rope speed
- bottom rope layer
- top rope layer
Rope speed in high auto 2-speed
- bottom rope layer
- top rope layer
Max oil pressure
Max oil flow
Drum diameter
Rope diameter
(Acc. to DIN 14584, MBL ≥ 197 kN)
Rope length
Numbers of layers
Winch weight
Rope weight
H100PF
Type No 63.31-050
Metric std.
US std.
(approx.)
10.0 tonnes
22 500 Lbs
6.5 tonnes
14 600 Lbs
6.0 m/min
20 ft/min
9.0 m/min
30 ft/min
n/a
n/a
n/a
n/a
160 bar
2300 psi
60 l/min
16 gal/min
224 mm
8.82 inch
16 mm
0.63 inch
60 m
197 ft
5
5
190 kg
427 Lbs
67 kg
151 Lbs
