ACC351-352, ACC361-362 - Quick Start Guide

Definition

NO (Normally Open) - This is a contact which remains open (as default) until activated, during the
"active" state the contact provides a closed circuit and starts conducting.
NC (Normally Closed) - Is the opposite of a NO contact. The contact will remain closed (as default)
until activated, during the "active" state the circuit breaks and stops current flow.

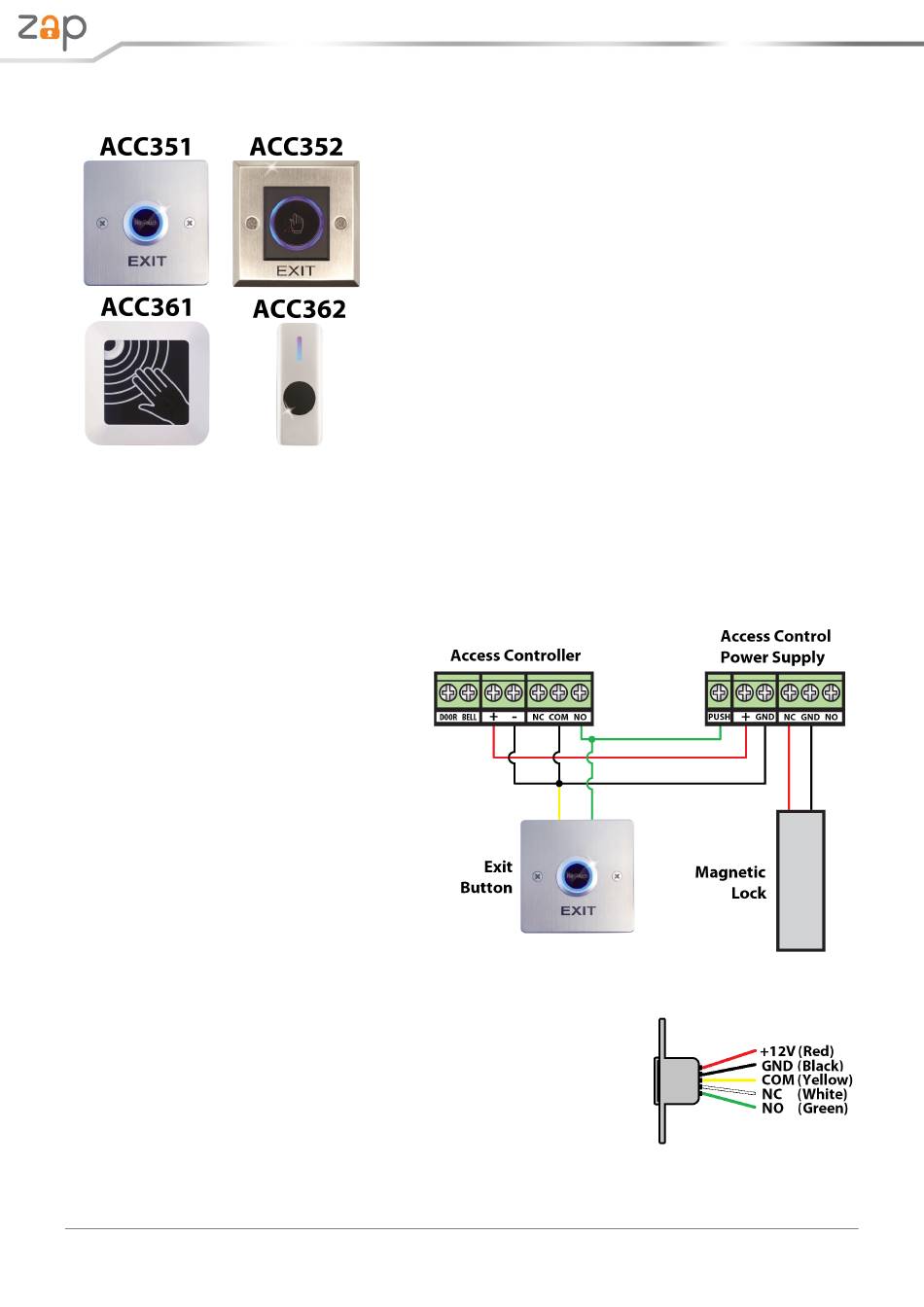

Setup Example

Exit buttons are used in access control
systems to provide a momentary contact
signal to the access controller to open a
magnetic lock.
This example shows a "Fail-safe"
scenario. When the exit button is
activated the access control power
supply then releases power from the
lock, and if power is lost then the lock
also releases.
Wire in NO or NC depending on the
access controller used and also on the
required state of the lock during a "Fail-
safe" or "Fail-secure" scenario.

Connections - ACC351-352, ACC361-362

For operation with a door access control panel and lock, the exit
button is wired with NC or NO and COM.
A permanent DC 12-24V supply is required to operate the contactless
exit buttons (not supplied with the product).
Document ref: qACC351-362

Exit Buttons

This guide covers the hygienic and convenient range of
contactless buttons. These buttons can be activated
without touching them to release the door, simply put your
hand near to the button to unlock it. The sensitivity can be
adjusted to detect at different ranges to suit the installation.

User Information

·
There are no user serviceable parts, opening or
attempting to repair the product will void the warranty.
·
Do not install or use the device if the wires connected are
damaged or have been subjected to water ingress.
·
Shut off all power to the access control system before
wiring this device.
·
Maintain a clean and safe environment at all times.
ZapCCTV.com
Contactless Exit Buttons
