EDX Mag Drill EM16 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
EM16
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Mag Drill EM16 and is the answer not in the manual?

Questions and answers

Summary of Contents for EDX Mag Drill EM16

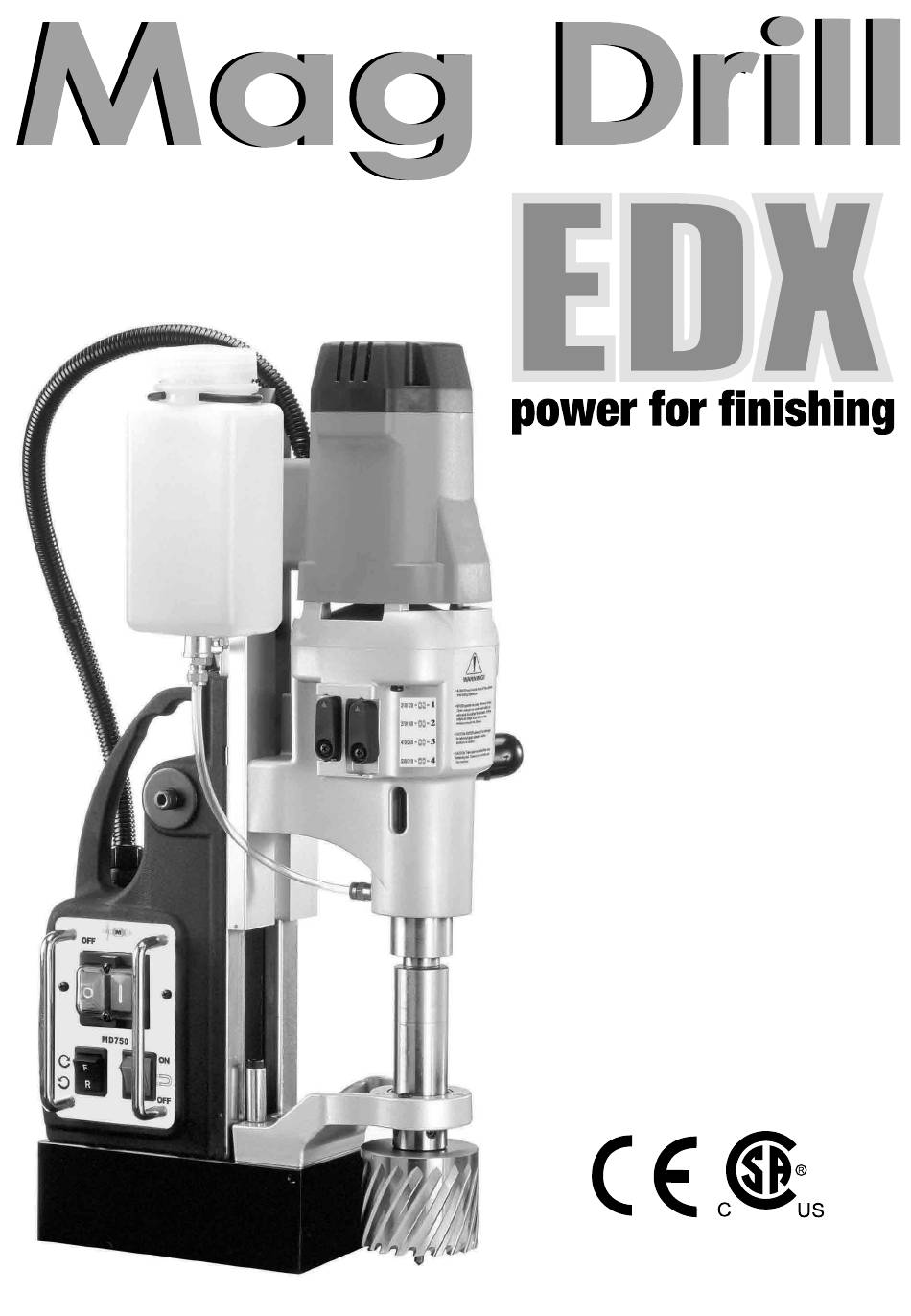

  • Page 1 EM16 SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
  • Page 2 EM16 4 Speed Drilling System Coolant tank Crank handle Coolant feed tap Gear selector Ejector port Motor switch Arbor Magnet switch Arbor support bracket Reversing switch Annular cutter (Not included) Magnet base Pilot pin (Not included) MT3 Twist drill bit MT3 Chuck adaptor MT3 Tapping adaptor (Not included)

  • Page 3: General Safety Instructions

    PORTABLE MAGNETIC CORE DRILLING SYSTEM WARNING! Read and understand all instruction before operating any drilling system. Failure to follow all instructions listed below may result in electrical shock, damage to drilling system and even personal injury. GENERAL SAFETY INSTRUCTIONS Work area Keep your working area clean and well lighted.
  • Page 4 PORTABLE MAGNETIC CORE DRILLING SYSTEM When operating a power tool outside, use an outdoor extension cord marked .W-A. or. W.. These cords are rated for outdoor use and reduce the risk of electric shock. Personal Safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication.
  • Page 5 PORTABLE MAGNETIC CORE DRILLING SYSTEM Store idle ling tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users. Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools, with sharp cutting edges are less likely to bind and are easier to control.
  • Page 6 PORTABLE MAGNETIC CORE DRILLING SYSTEM Symbols used in this manual IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.
  • Page 7 PORTABLE MAGNETIC CORE DRILLING SYSTEM SPECIFIC SAFETY RULES AND REGULATIONS Always use safety chain. Mounting can release. The magnet’s adhesion depends on the thickness of the work piece. Always ensure that the work piece is a minimum of 12mm (7/16 in.) thick. If it is not, then use a piece of steel plate at least12mm thick and larger than the magnet below the work piece to supplement the magnetic adhesion.
  • Page 8 PORTABLE MAGNETIC CORE DRILLING SYSTEM ASSEMBLY Coolant tank assembly required. First attach clear tube to the bottom of the coolant tank. To do this, first loosen the nut and slide nut onto the tube. Then slide tube onto the nipple. Then tighten the nut.

  • Page 9: Operation

    PORTABLE MAGNETIC CORE DRILLING SYSTEM SPECIAL INSTRUCTIONS FOR 4-SPEED MT3 EQUIPPED MODELS CHANGING TOOLS & ADAPTORS WITH MT3 SHANK To insert a tool, turn the tool until the tang lines up and firmly push into place. It is helpful to tap with a soft-faced mallet to fully engage the taper.
  • Page 10 PORTABLE MAGNETIC CORE DRILLING SYSTEM WARNING: NEVER operate 60mm (2-3/8 in.) or larger cutters unless the plate thickness is mini mum 20mm (13/16 in.) MAGNET LIFTING MAY RESULT. If the plate thickness is not enough, supplement the magnetic adhesion by adding a 10mm or thicker plate directly the magnet’s position under the work piece.

  • Page 11: Twist Drills

    PORTABLE MAGNETIC CORE DRILLING SYSTEM For the RIGHT HAND SLIDER the gears select by engagement dogs, similar to a motorcycle transmission design. These MUST BE SELECTED BY TURNING THE ARBOR to allow the dogs to engage. They may also be engaged while the motor is running, provided that it is not under load.

  • Page 12: Maintenance

    PORTABLE MAGNETIC CORE DRILLING SYSTEM CAUTION: To avoid damage to the tap or machine, be very careful to stop the machine in time to NOT allow the tap bottom out. The motor continues to coast for a while after being shut off, so plan for this and anticipate. This machine does NOT have a clutch.
  • Page 13 PORTABLE MAGNETIC CORE DRILLING SYSTEM THE GIBS (DOVETAIL SLIDES) The gibes require adjustment if too loose. To adjust, loosen the lock nuts and adjust the adjustor screws evenly while moving the handle up and down. Adjust so that there is no free play, yet any binding anywhere in its range of travel.
  • Page 14 EM16 4 Speed Drilling System Wiring...
  • Page 16 EM16 4 Speed Drilling System Exploded View & Parts list...
  • Page 17 Item No. Parts Name Q'TY Item No. Parts Name Q'TY INTERNAL CIR CLIP R-19 FLAT WASHER ARBOR WASHER COOLANT TANK BRACKET RING 12x4 COOLANT TANK 400CC WATER SEAL BRASS NUT SPRING FLAT WASHER 10x23x2 SET SCREW M8x7 O-RING 10.7x2 MT3 ARBOR COOLANT TAP SPINDLE COOLANT TUBE...
