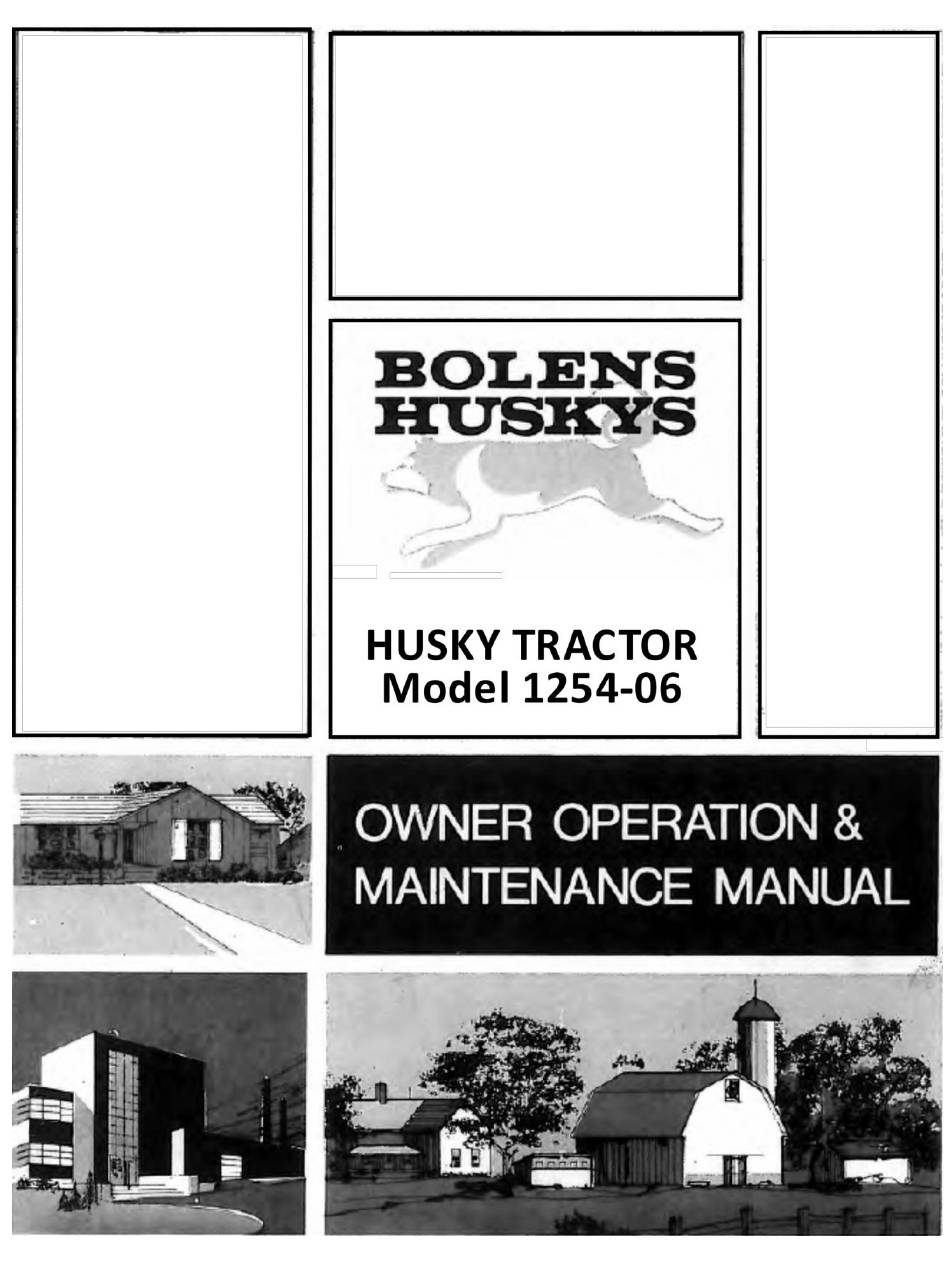

Husky 1254-06 Manual
  1. Manuals
  2. Brands
  3. Husky Manuals
  4. Tractor
  5. 1254-06
  6. Manual

Husky 1254-06 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Husky 1254-06

Summary of Contents for Husky 1254-06

  • Page 2: Table Of Contents

    Controls ..............Lubrication ............Pre-Operational Checks ........Minor Trouble Shooting Guide ......Break-In Period ............. Wiring Diagram ........... Starting the Engine ..........Storing Your Husky Tractor ......... Operation .............. Preventative Maintenance ........PRINTED AT BOLENS 2/72 FORM NO. 552533 2/72...
  • Page 3 OWNER This is an operational and general maintenance manual which does not attempt to cover major repairs. All major repair work must be per- formed by an AUTHORIZED DEALER for the factory warranty to be valid. BOLENS equipment is carefully designed, engineered, and manu- factured to give good performance if properly operated and maintained.

  • Page 4: General Safety Precautions

    GENERAL SAFETY PRECAUTIONS 12. Always look back to be certain no one Preventing accidents is the responsibility of is i n the way before using reverse. This will every equipment operator. The following general safety precautions must be fully avoid the possibility of r unning over any understood and followed by every operator of this tractor children, other persons or pets who might be in the area in and its attachments.

  • Page 5: Serial Number

    For your own personal reference, fill in the serial number 4. Serial number of engine (Fig. 2) spaces provided below. 5. Spec. number of engine (Fig. 2) 1. Model number of tractor (Fig. 1) 1254-06 2. Serial number of tractor (Fig. 1) Figure 1 Figure 2...

  • Page 6: Controls

    CONTROLS LOCATION & FUNCTION 2. AMMETER. Before operating the tractor, the operator should become familiar with the function and location of each control to Indicates rate of charge to or discharge from battery. ensure proper and efficient operation. The following listed numbers and accompanying informa- 3.

  • Page 7: Pre-Operational Checks

    3. Inspect battery for: pre-operational check list, and perform each check prior to A. Proper electrolyte level. starting or operating the Husky. REFER TO PREVENTIVE MAINTENANCE SECTION OF MANUAL, page 9, for B. Clean cables of dirt and corrosion. details.

  • Page 8: Starting The Engine

    STARTING THE ENGINE EMERGENCY STARTING In the event of electrical failure, get in touch with your DEALER for assistance in locating the trouble. Should the battery be too low on power to start the unit, it is always best to remove the battery and have it recharged. 1.

  • Page 9: Operation

    IN OFF POSITION AND THE CLUTCH/BRAKE PEDAL IS FULLY DEPRESSED. THREE-SPEED TRANSMISSION The HUSKY features a 3-speed geared transmission plus a second range to give you a wide choice of operating speeds. NOTE: TO PREVENT DAMAGE TO THE GEARS, DO NOT SHIFT GEARS WHILE THE TRACTOR IS IN MOTION.

  • Page 10: Preventative Maintenance

    ONCE EACH WEEK (OR EVERY 7 OPERATING DAYS ): maintenance will lead to longer operating life of the remove cartridge and rinse under a faucet with cold water, HUSKY. then wash by repeated dipping for several minutes in a solution of lukewarm water and a mild, NON-SUDSING The removal of debris, dirt and grease accumulations are detergent.
  • Page 11 PREVENTIVE MAINTENANCE Continued) FUEL VALVE ELECTRIC STORAGE BATTERIES GIVE OFF HIGHLY FLAMMABLE HYDROGEN A fuel shut off valve is in the line from the fuel tank to the GAS WHEN CHARGING, AND CONTINUE carburetor. See Figure 12 for location. TO DO SO FOR SOME TIME AFTER RECEIVING A STEADY CHARGE.

  • Page 12: Adjustments

    ADJUSTMENTS CARBURETOR If the carburetor needs readjustment, open the carburetor MAIN JET ADJUSTMENT needle valve approximately 2 full turns from its seat. After the engine is started and warmed up, adjust the needle valve for best operation under full load, if possible. In cold weather, starting may be facilitated by opening the needle valve slightly more, then readjusting to normal running position after engine is started.
  • Page 13 ADJUSTMENTS (Continued) P.T.O. BELT - REMOVAL There are two interlock switches on this unit, one on the 1. Loosen belt guides from P.T.O. support and remove clutch brake pedal and one on the power take-off control. P.T.O. belts from pulley. If the interlock switch on the power take-off needs adjustment, refer to Figure 18, and, with P.T.O.
  • Page 14 ADJUSTMENTS (Continued) 4. Adjust nuts on adjusting rod to insure adequate brake shoe pressure. (See Figure 20.) ALWAYS APPLY PARKING BRAKE WHENEVER LEAVING TRACTOR UNAT- TENDED OR ON INCLINES. OPERATING TRACTOR WITH PARKING BRAKE ON WILL DAMAGE THE BRAKE. ALWAYS USE MAIN BRAKE WHEN SHIFTING ON INCLINES.

  • Page 15: Power Take-Off (P.t.o.)

    ADJUSTMENTS (Continued) SEAT ADJUSTMENT In order for the tractor to freewheel controlled differential must also be disengaged. Turn the differential control knob, Figure 8, page 8 counterclockwise as far as it will go. DO To adjust seat, loosen two capscrews beneath tractor seat NOT USE A WRENCH.

  • Page 16: Maintenance Chart

    MAINTENANCE CHART Length of Type of MAINTENANCE REQUIRED Operation Maintenance Engine Cooling Air Screen - Daily & Brush Clean 8 Hrs.* Engine Air Cleaner - Daily* Shake Out Dirt Weekly* Wash with Non-Sudsing Detergent After 5 Washings Replace Cooling Fins – (Engine) - Clean –...

  • Page 17: Lubrication Chart

    LUBRICATION CHART Length of Type of Amount LUBRICATION REQUIRED Operation Lubrication Required 1. Engine Crankcase - Check Daily Bolens Add Oil & 8 Hrs. Engine Oil To Full Mark (Spring, Summer, Autumn) 50 Hrs.* Bolens 16014 Replace (+ 120° F. to 40° F.) SAE 30 Oil 1 Qt.

  • Page 18: Lubrication

    The numerically listed locations on the lubrication chart Proper lubrication and regular maintenance will increase the correspond to those numbers shown on Figures 24, 25, 26, operating life of your HUSKY tractor. It is suggested that lubrication recommendations in this manual be followed. A 27 and 28.

  • Page 20: Storing Your Husky Tractor

    STORING YOUR HUSKY TRACTOR Always keep your HUSKY tractor in a dry protected place 5. Drain crankcase oil while engine is warm. when not in use. This will prolong operating life and preserve the appearance of the tractor. With year around 6.
  • Page 21 WHEEL WEIGHTS – Front and rear weights “HUSH TONE” MUFFLER KIT – Available for for increased traction when plowing or to reduce slippage when dozing snow or in loose your 1254 HUSKY Tractor for quieter operation. soil. Model No. 16620.
  • Page 22 LUBRICATION AND MAINTENANCE RECORD DATE DESCRIPTION OF MAINTENANCE HRS. RUN PERFORMED...
