PXLNET NODE MANUAL

1 - 42

Version 2.3.0

PxLNet Node Manual

Table of Contents

Need help?

Do you have a question about the PXLNET NODE and is the answer not in the manual?

Questions and answers

Summary of Contents for DiGidot PXLNET NODE

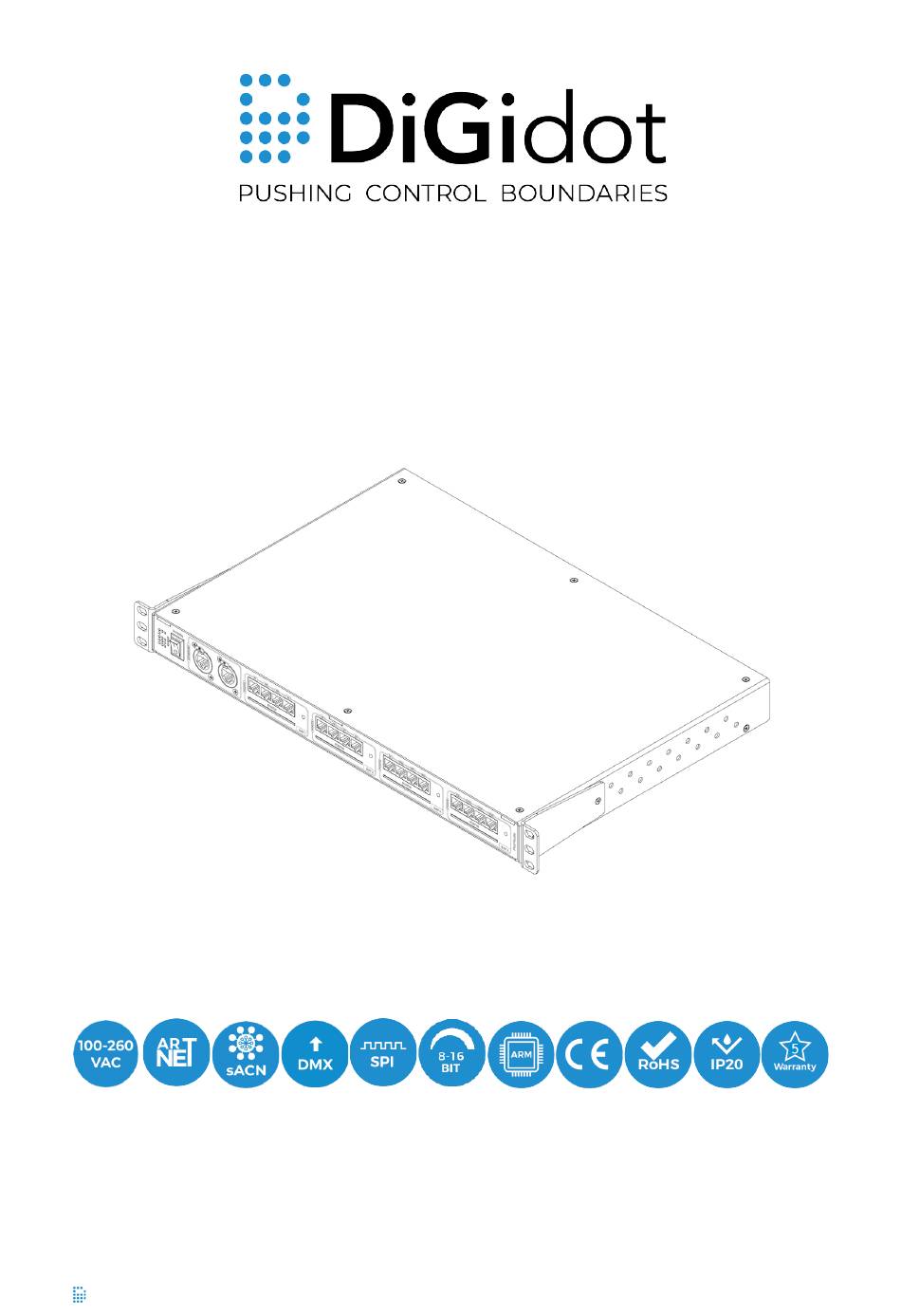

Page 1 PXLNET NODE MANUAL 1 - 42 Version 2.3.0 PxLNet Node Manual...
Page 2: Thank You For Choosing Digidot
THANK YOU FOR CHOOSING DIGIDOT! We strive to offer you the latest technology in LED lighting control and we’re constantly innovating and expanding our control platform. We’re convinced that you have everything you need to create a truly mesmerizing and innovative piece of light art.
Page 3: Table Of Contents
Support Ticket TIPS & TROUBLESHOOTING Standard troubleshooting checklist Status LEDs No output signal from DiGidot PxLNet Node DiGidot PxLNet Node not receiving signal Art-Net/sACN software doesn’t recognize the DiGidot PxLNet Node Factory reset 3 - 42 Version 2.3.0 PxLNet Node Manual...
Page 4 Having trouble with your DiGidot PxLNet Node Setup? Forgot the username or password for the DiGidot PxLNet Node? Can’t find your protocol/IC? Some LED’s/colors are not responding correctly ACCESSORIES VARIOUS Online resources Remarks Terminology Compliances & EU declaration of Conformity...
Page 5: Introduction
19” housing guarantee optimal flexibility and performance for all demanding Projects. The PxLNet Node converts Art-Net or sACN to SPI or DMX and is able to output a staggering amount of 96 universes (8 per port) in total. Please refer to our DiGidot Performance Guide to check what the maximum number of universes you can configure per port .
Page 6: Product Information
PRODUCT INFORMATION Box contents 1 x DiGidot PxLNet Node U96 1 x Powercable 16x DiGidot PxLNet Transceiver 1 x Spare fuse NOTE: We put great care in our products and have a high quality control standard. Nonetheless we advise to double check for missing or damaged items.
Page 7: Technical Specifications
Up to 49.152 Art-Net or sACN channels (96 universes) Ethernet: RJ45 compatible, for 100/1000 Base-TX Ethernet Programming & control: DiGidot PxLNet Node web-based user interface DiGidot PxLNet Node app Any type of Art-Net or sACN Software/Device (visit our website: digidot.eu...
Page 8: Product Drawings
Art-Net or sACN controller required In order for the DiGidot PxLNet Node to work in a live system setup, a third-party Art-Net or sACN software or console is required. The DiGidot PxLNet Node controllers are known to be working with various professional grade softwares and consoles, such as: MADRIX, Pharos, ArKaos, Resolume Arena, MadMapper, POET, grandMA and many more.
Page 9: Key Features Explained
The I/O ports can also be configured as 16x DMX. IP address filter With this feature you can configure the DiGidot PxLNet Node to only listen to a specific IP address when using Art-Net as input protocol. Signals from other IP addresses will be ignored.
Page 10 In case of absence or loss of the control signal, a fallback color can be set for every DiGidot PxLNet Node. You can also set the delay time before the fallback activates. Online/offline firmware updates We offer online updates which can be installed easily from the user interface. These updates can also be downloaded and installed on the DiGidot PxLNet Node controllers are not connected to the internet.
Page 11: Before Installation
If this is the case in any way, turn off the power of the device and contact your supplier immediately. " The DiGidot PxLNet Node is designed for indoor use (dry locations) only. Exposure to rain or moisture may cause fatal damage to the controller and increase risk of electrical shock. 11 - 42 Version 2.3.0...
Page 12: Mounting Options
Mounting options Install the DiGidot PxLNet Node properly in a 19” rack, and protect the device from direct sunlight, rain, moisture. Make sure that the device is installed and secured properly and that it’s not able to move around. If you have any doubts regarding the environmental circumstances of your application, please contact your DiGidot reseller or DiGidot Technologies B.V.
Page 13: Installation & Wiring
INSTALLATION & WIRING The DiGidot PxLNet Node is not designed to power the LED lights, but only to transmit signal/data to the LED lights/control IC’s. An additional external power supply with properly rated output capacity is required to power the LED lights.
Page 14 This option shows 16x SPI Data only outputs. Each SPI Ground wire must be the same length as the Data wire per output, to prevent timing issues. View the manual of the PxLNet Transceiver to see all schema options with PxLNet. 14 - 42 Version 2.3.0 PxLNet Node Manual...
Page 15 This option shows 16x DMX outputs. Every DMX signal requires a connected ground as indicated above. Cable should be a DMX cable with an impedance of 110 Ohm or a CAT6E (s/FTP recommended) or better. 15 - 42 Version 2.3.0 PxLNet Node Manual...
Page 16 This option shows 16x DMX TTL. Every DMX signal requires a connected ground as indicated above. Cable should be DMX cable with an impedance of 110 Ohm or CAT6 (s/FTP recommended) or better. 16 - 42 Version 2.3.0 PxLNet Node Manual...
Page 17 Connecting ethernet The DiGidot PxLNet Node has a built-in Gigabit switch that allows multiple units to be daisy chained. It’s recommended to not daisy chain more than 8 PxLNet Nodes. 17 - 42 Version 2.3.0 PxLNet Node Manual...
Page 18 Connect the DiGidot PxLNet Node to a power source and switch the device on with the power switch on the front. You can also daisy chain the power cable with a C14 male to C13 female cable. 18 - 42 Version 2.3.0...
Page 19: Configuration
Accessing a DiGidot PxLNet Node controller works as follows: 1. Connect the DiGidot PxLNet Node to a power source. Read chapter ‘Connecting power’. 2. Use an Ethernet cable (Cat 5E or better) to connect the DiGidot PxLNet Node to a network port of a computer.
Page 20: Device Network Settings For Art-Net And Sacn
Router (empty) R outer for Internet ac c es s Your computer is now ready to access the DiGidot PxLNet Node. Open your web browser and go to http://10.254.254.254. Device network settings for Art-Net and sACN The device network settings can be changed in the DiGidot PxLNet Node user interface. This is required in case you want to communicate with an Art-Net or sACN control device.
Page 21 Home > Settings > Network. You can change the IP addresses and subnet mask of the DiGidot PxLNet Node. The IP addresses needs to be unique in your network to avoid IP conflicts. Every bay uses it’s own IP address. If you're using Art-Net, it's recommended that the subnet mask is identical on both the computer and the controller side.
Page 22: Interface
Getting started Home > Getting started In order to get started quickly or if you’re new to using the DiGidot PxLNet Node, we recommend using the 'Getting Started' wizard from the 'Home' menu. This wizard will guide you through all the essential steps to get the DiGidot PxLNet Node up and running.
Page 23: Groups
Response time shows the network message response time.! When the Response time light is green, the network connection is working. When the Response time light is red the DiGidot PxLNet Node is not responding. Click on the “timeout” text to get more information about the timeout session.
Page 24: Account
Port This shows which ports have been configured as an output. ! If you click on a port, it will highlight the DiGidot PxLNet Node output until you click again. Actions Restart: will restart all devices that are currently displayed on the Monitor page.
Page 25: Input & Output Configuration
Art-Net out universes can also be used to record them from an Art-Net stream in order to play back later and send them over Art-Net again. The DiGidot PxLNet Node can therefore also be used as an Art-Net playback recorder.
Page 26: In/Out Configuration Item Page
By entering a start channel (0-511), all channel data before this channel offset will be skipped. Example Goal: You want to use channel 100 up to channel 200 as output channel 0-100. Configuration settings will be as follows: " Start channel is set to 100. 26 - 42 Version 2.3.0 PxLNet Node Manual...
Page 27 NOTE: Combining input channels will not reduce the amount of output channels. The DiGidot PxLNet Node is always limited to the total amount of output channels corresponding to the license. The number of input universes is not limited.
Page 28: Network Settings
TIP: In order to quickly test your outputs, you can toggle all ports on to full white when clicking the bulb icon. Network settings Home > Settings > Network This page shows a tab for both Ethernet network related settings of the DiGidot PxLNet Node. 28 - 42 Version 2.3.0 PxLNet Node Manual...
Page 29: Ethernet Configuration
MAC addresses These are the unique device MAC addresses. Every bay on the DiGidot PxLNet Node got an own MAC address. This address cannot be changed and is being used for identification and network communication. Ethernet configuration IP addresses The ethernet IP addresses of the DiGidot PxLNet Node. Every bay on the DiGidot PxLNet Node got an...
Page 30: License
Network This tab will show additional information about the connected ethernet ports and Wi-Fi. Trigger This tab will show the loaded triggers and if the DiGidot PxLNet Node will respond to external trigger calls. Playback The playback tab will show information about scenes and/or playlists playing. This tab will also show information about the FPS, Total processed frames and skipped frames of the different input protocols.
Page 31: Interface Settings
Make sure that you're not sending Art-Net or sACN if you choose to broadcast! After the update is completed the DiGidot PxLNet Node status lights will return to idle state, fading blue to cyan.
Page 32: Support Overview
This page shows all support items. Node Manual Home > support > Manual This page shows the manual of the DiGidot PxLNet Node. The manual is always compatible with the connected DiGidot PxLNet Node firmware/interface. An internet connection is required to open this page.
Page 33: Tips & Troubleshooting
Network, License, Update, File browser and Device page. 10. Perform a factory reset. Disconnect the power from the DiGidot PxLNet Node, press and hold the onboard button on the front, apply power and hold the button for at least 10 seconds. Once the status LED’s turn to blinking yellow, the factory reset is initiated, once the status LEDs turn to...
Page 34: Status Leds
Status LEDs The DiGidot PxLNet Node has a front view status LED indicator for every bay. There are several states of the device. Definition of status light indicators: Light colors Category Explanation Fading blue-cyan light Informative The DiGidot PxLNet Node is Idle with a license...
Page 35: Art-Net/Sacn Software Doesn't Recognize The Digidot Pxlnet Node
DiGidot PxLNet Node device(s). In case your console or software continues to fail to discover the DiGidot PxLNet Node you can try to reboot your DiGidot PxLNet Node device(s).
Page 36: Forgot The Username Or Password For The Digidot Pxlnet Node
CMD + Spacebar and search for Terminal App. Type ping and the IP address of the DiGidot PxLNet Node ‘ping 10.254.254.254’ and then press the Enter key of your keyboard to ping the DiGidot PxLNet Node device. A timeout will indicate a broken connection.
Page 37 Don’t connect the VCC from different power supplies. TIP: Do not use excessive wire gauges to transfer data from the DiGidot PxLNet Node to the LED products, this will only increase the risk of failures. Typically, we recommend to use wire gauges for the data signal of 0.3-0.5 mm...
Page 38: Faq
Please visit our website digidot.eu/support/faq for all FAQ’s and further support. 38 - 42 Version 2.3.0 PxLNet Node Manual...
Page 39: Accessories
RJ45 bus and solder pads for signal input DiGidot RJ45 Network Cable Art. no.: 20330 " Spare RJ45 Network cable for connecting and daisy chaining DiGidot PxLNet Node DiGidot RJ45 DMX Adapter Art. no.: 20329 " Connects to a network cable that runs prom a PxLNet Transmitter port and can be plugged in any DMX controlled product with an XLR-3 socket.
Page 40: Various
Typically, a universe is referred as one DMX control network consisting of 512 control channels, also typically associated with one DMX output. DiGidot also refers to a universe as one set of 512 control Channels that belong to specific Art-Net, sACN or DMX universes. But when we mention...
Page 41: Compliances & Eu Declaration Of Conformity
Feedback Tell us all about your experience with DiGidot! The continuous development of the DiGidot control platform is only possible thanks to feedback from our users. If you have any suggestions, please contact us by email: info@digidot.eu. Imprint...
Page 42: Trademarks
Any form of unintended or misuse of this information and/or DiGidot products indemnifies DiGidot Technologies BV from liability and warranty obligations.
