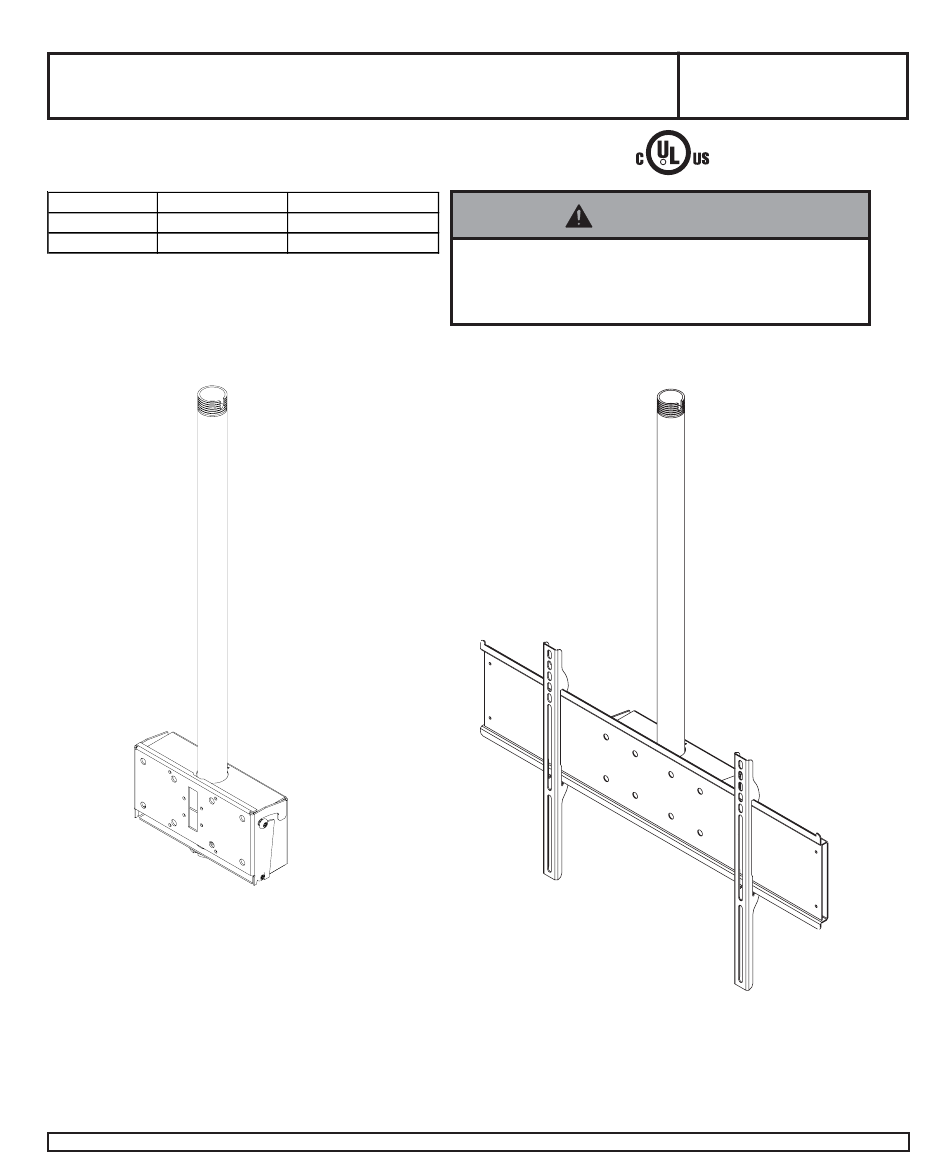

Installation and Assembly -
Read instruction sheet before you start installation and assembly.
Model
Max. Load
PLCM-UNL
200 lb. (90.7 kg.)
PLCM-1
225 lb. (102.3 kg.)
PLCM 1
Note: Installation for 32" - 60" LCD and Flat Panel Screens for model PLCM-UNL
Note: Installation for 32" - 71" LCD and Flat Panel Screens for model PLCM-1
Solid•Point
Straight Column Mount
Screen Size Range
32'' - 60''
32'' - 71''
• Installer must verify that the ceiling will safely support
™
Flat Panel
WARNING
the combined weight of all attached equipment and
hardware.
PLCM UNL
1 of 5
ISSUED:08-20-02 SHEET #: 200-9404-9 03-21-07
Model: PLCM 1,
PLCM UNL
This product is intended for use with UL
Listed products and must be installed by a
R
qualified professional installer.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rehabmart Solid-Point PLCM 1
Summary of Contents for Rehabmart Solid-Point PLCM 1
- Page 1 ™ Solid•Point Flat Panel Model: PLCM 1, Installation and Assembly - PLCM UNL Straight Column Mount This product is intended for use with UL Read instruction sheet before you start installation and assembly. Listed products and must be installed by a qualified professional installer.
- Page 2 Before you begin, make sure all parts shown are included with your product. PARTS LIST Description Part # A ceiling arm box 201-1062 B tilt bracket 200-1552 C 33" support pipe 139-1088 D retaining collar 1800-375 E M5 x .8 x 10 mm penta-pin™ screw 505-9010 F 2.875 OD x 2.125 ID x .062 H fiber washer 540-9432...
- Page 3 Thread support pipe (C) into threaded fitting in ceiling plate (UL Listed CMJ470, not included). Tighten - four or five complete turns - leaving slot aligned with one small hole in the side of the ceiling plate threaded fitting. Insert and tighten one M5 x .8 x 10 mm penta-pin screw (E) provided with ceiling plate as shown.
- Page 4 Note: Refer to adapter plate instruction sheet (sold separately for model PLCM 1, not evaluated by UL) for attachment of adapter plate to plasma before proceeding with step 2. For LCD screen adapter bracket, skip to step 2 on page 5. Attach tilt bracket (B) to adapter plate using four M10 x 15 mm penta-pin screws (G) in accordance with appropriate drawing below.
- Page 5 Note: Refer to adapter bracket instruction sheet (sold separately, not evaluated by UL) for attachment of adapter bracket to LCD screen before proceeding with step 2. Attach tilt bracket (B) to adapter bracket using four M5 x 8 mm phillips screws (J). Note: Do not use M5 x 6 mm screws that are included with the adapter bracket LCD SCREEN ADAPTER BRACKET...
