GE Profile JB988SHSS Dimensions And Installation Information

TM
JB988SH – GE Profile
™
Electrical outlet locat ABC.eps

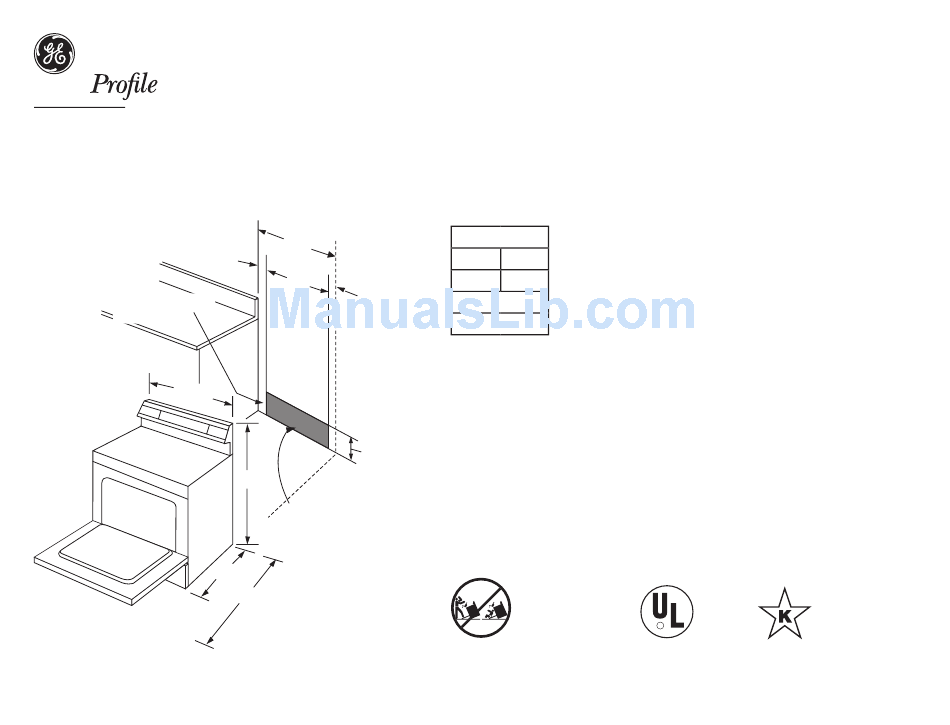

Dimensions (in inches)
2-1/2
Acceptable electrical
outlet area
29-7/8
25-3/8
*Dimension from wall to front of closed door handle is 27-3/8" .
Specification Revised 9/04
221076
30" Free-Standing CleanDesign Electric Range
30
25
2-1/2
7-1/2
46-7/8
Preferred electrical
outlet area
Roughed-in dimensions
47-5/8
KW Rating
240V 13.0
208V 10.9
Breaker Size
40 Amps
†
Note: Check local codes for required breaker size.
†
Effective January 1, 1996, the National Electrical Code requires that new construction (not existing)
utilize a 4-conductor connection to an electric range.
Receptacle Locations
Locally approved flexible service cord or conduit must be used because terminals are not accessible
after range installation. See shaded area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed directly against wall.
Note: 30" ranges conform to U.L. requirements for 0" spacing from adjacent walls below countertops.
To reduce possibility of scorching walls, engineering recommends a minimum of 1-1/2" spacing to
allow for possible extended, high-heat, no-load heating element operation.
Installation Information: Before installing, consult installation instructions packed with product for
current dimensional data.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
