Chuango RC-80 User Manual

Wireless Remote
Control
RC-80
User Manual

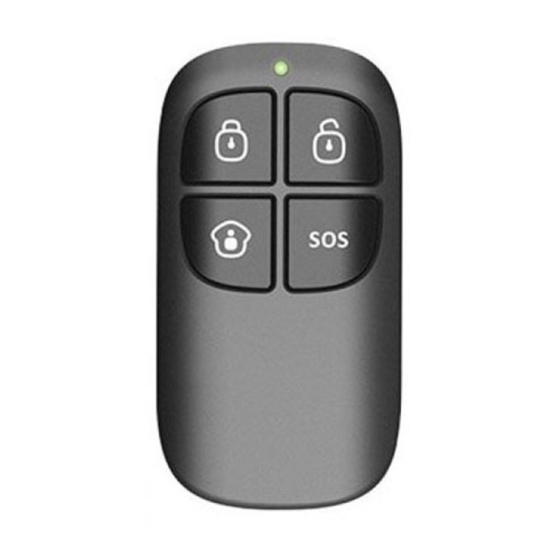

Introduction
The remote control enables you to turn the alarm system on
and off before entering the home or after exiting. If there is
an emergency, press SOS button on the remote control to
trigger the panel. RC-80, compact and portable, is designed
to fit on a keychain, in a pocket, or in a purse.
LED Indication
LED flashes once: sends the transmitting signal.
Dim light: Low battery, please replace the battery
immediately.
All manuals and user guides at all-guides.com
Overview
Arm
Stay
Usage
Arm
Disarm
Stay/
Home Mode
Panic
Mute Arm
Mute Disarm
Declaration of Conformity
We declare on our sole responsibility that this equipment complies with the essential requirements of the Radio and
Telecommunications Terminal Equipment Directive, 1999/5/EC, and that any applicable Essential Test Suite measurements have
been performed.
2200
CE versions of the Wireless Remote Co ntrol (M/N:
essential requirements of the European Radio and Telecommunication Terminal Directive 1999/5/CE.
Specifications
LED Indicator
Power supply DC 3V (CR2025 Lithium Battery x 1pc)
Working current
Disarm
Transmitting distance
Radio frequency
Panic
Housing material
Operation Condition
Temperature -10°C ~ +55°C
Relative humidity ≤80% (non-condensing)
Dimensions (L x W x H)
Press to arm the alarm panel and all of the accessories.
(Away Mode)
Press to disarm the alarm system.
Press to arm all sensors except the ones in zone A or Home Mode Zone,
sensors in zone A or Home Mode Zone will not activate an alarm.
Press to activate a panic alarm and the control panel auto-dials
the pre-set phone numbers immediately.
Press to arm the system in mute.
Press to disarm the system in mute.
RC-80 ) which display the CE symbol on the product label, comply with the
≤ 7mA
≤ 80m (in open area)
315MHz or 433.92MHz (± 75KHz)
ABS plastic
58 x 31 x 9.5mm
Ver : RC-80-UM-EN-V1.0
2015 Chuango. All Rights Reser ved.
