– INSTRUCTION MANUAL –

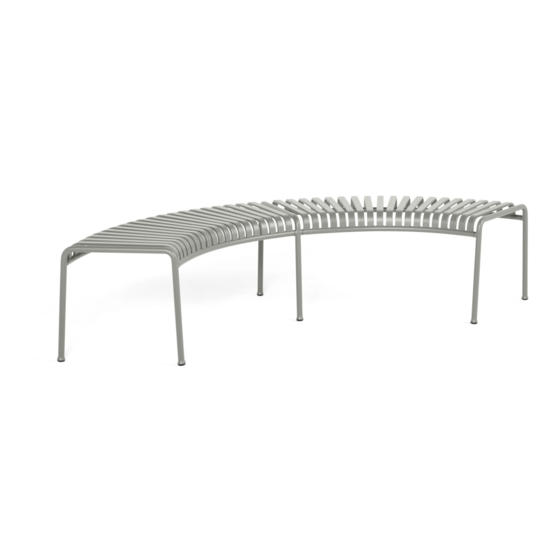

PALISSADE PARK BENCH
DESIGN BY RONAN & ERWAN BOUROULLEC

Advertisement

loading
Need help?

Need help?

Do you have a question about the PALISSADE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hay PALISSADE

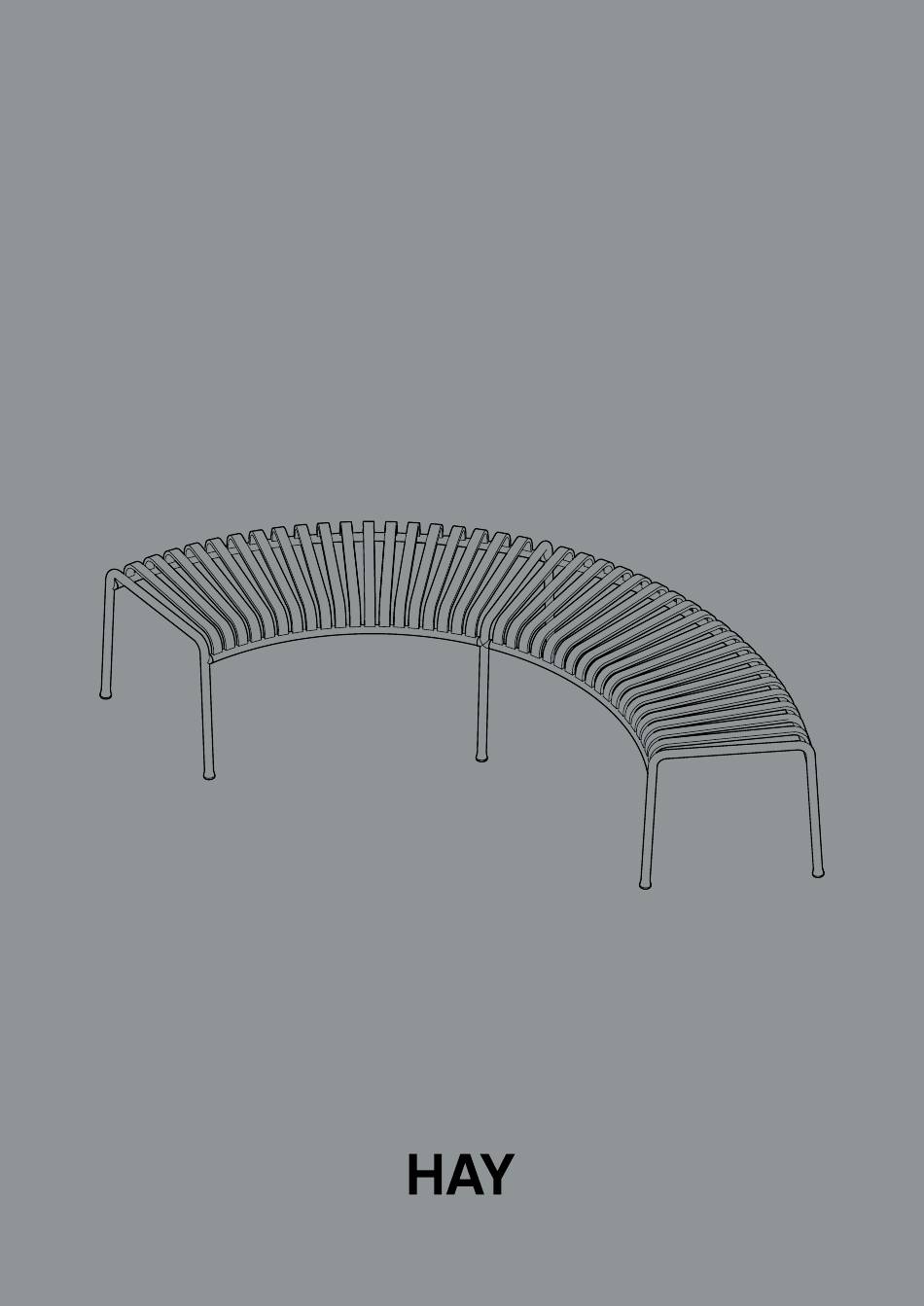

  • Page 1 – INSTRUCTION MANUAL – PALISSADE PARK BENCH DESIGN BY RONAN & ERWAN BOUROULLEC...
  • Page 3 / All products in the Palissade collection / Minor spots of rust under the furniture are handcrafted and minor blemishes and bases are considered as a natural and imperfections may be visible.
  • Page 4: Care And Maintenance

    They can be retouched and protected from corrosion with a special repair lacquer available at HAY stores and authorized dealers. If the metal is uncovered it is necessary to sand the area before repairing it (grain 220).
  • Page 5 – PARTS –   Seat x2 Allen key x1    Leg x1 Leg x1 Middle leg x1   Washer x8 Screw x16...
  • Page 6 Protect the bench top from scratches and other damage while assembling.
  • Page 7     Insert the legs into the seats , with washers in between. Make sure the arrow on each leg points towards the inner curve of the seat, as shown in the illustration.      NOTICE Arrow should point ...
  • Page 8   Secure the legs with the screws and the Allen key Start by loosely tightening all the screws before tightening them all completely.  ...
  • Page 9   Insert the middle leg with the washers in between. The arrow should point towards the inner curve of the seats, as illustrated below.    NOTICE  Arrow should point towards the inner curve  of the seats.
  • Page 10   Secure the middle leg with the screws using the Allen key Start by loosely tightening all the screws before tightening them all completely.  ...
  • Page 11 Done!
  • Page 12 – Care & Maintenance – Our Care & Maintenance offers guidance for optimal maintenance of your HAY product. It includes advice and instructions on cleaning and caring for specific materials to prolong the life of your furniture. Please find our Care & Maintenance...
  • Page 16 Havnen 1 8700 Horsens Denmark +45 4282 0282 / hay@hay.com 01/10/2021...
