Summary of Contents for Kzyee KM301

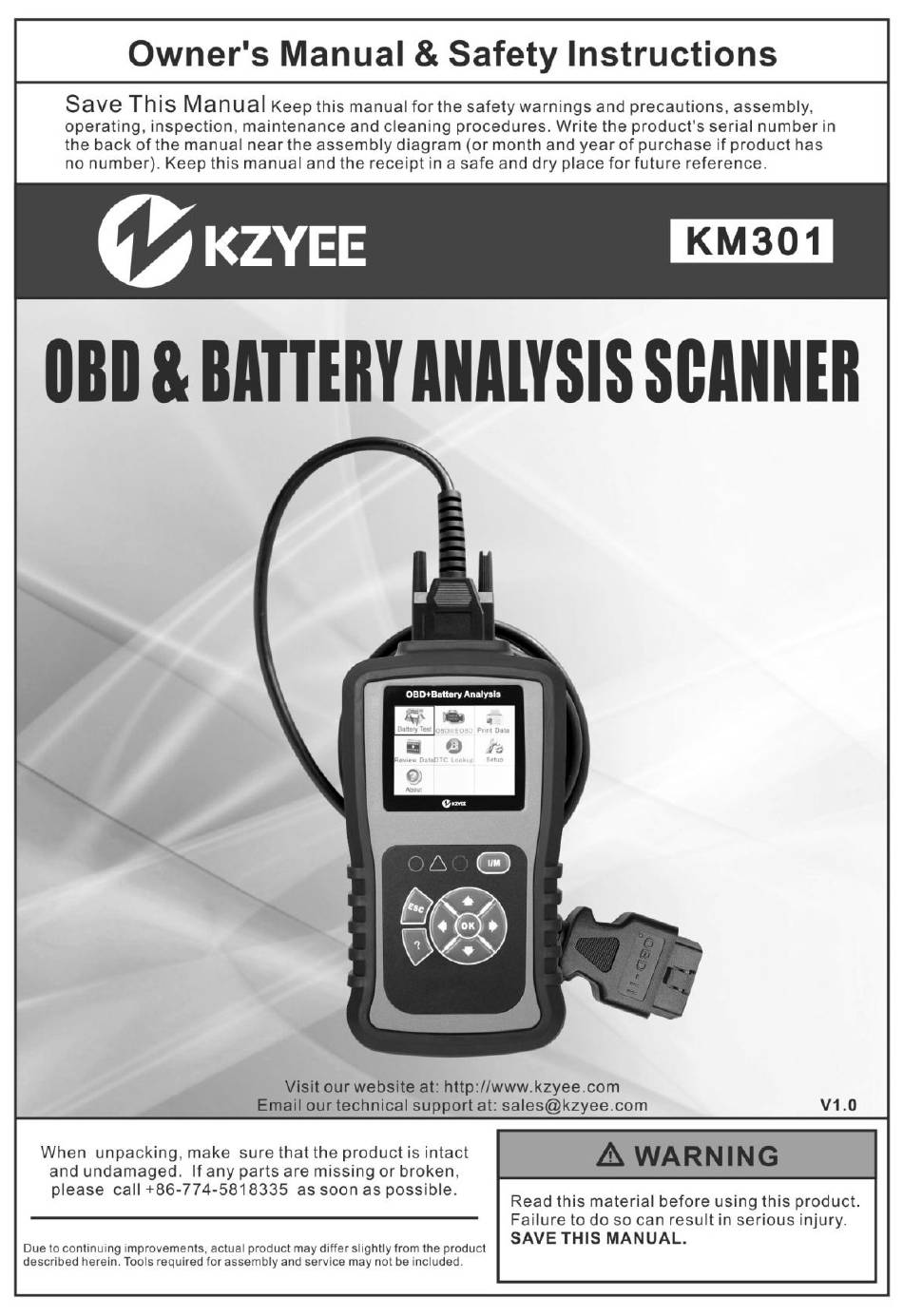

Page 1 OBDII /CAN SCAN TOOL - 1 -...
Page 2: Table Of Contents
OBD & Battery Analysis Scanner Table of Contents I/M Readiness Quick-Check....26 Specifications..........1 Diagnostic Test Modes......27 Setup - Before Use........2 Read Trouble Codes.......28 Operating Instructions....... 4 DTC Lookup..........29 Connect Scan Tool........4 Erase Codes..........30 Battery Test..........5 View Live PID Data.........
Page 3: Specifications
OBD & Battery Analysis Scanner Important Safety Information To prevent personal injury or damage to vehicles and/or the Scan Tool, read this instruction manual first and observe the following safety precautions, at a minimum, whenever working on a vehicle: Always perform automotive testing in a safe environment. Wear safety eye protection.
Page 4: Setup - Before Use
OBD & Battery Analysis Scanner Setup - Before Use: Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document including all text under subheadings therein before set up or use. Functions Figure 1 - 2 -...
Page 5 OBD & Battery Analysis Scanner Help Button OBD II Cable View detailed information, if available. Connects the Scan Tool to the vehicle’s DLC. USB Connector Connects the Scan Tool to a PC for LCD Screen updating software and printing. Red LED I/M Button Indicates there is a problem in one Quick-checks emissions test...
Page 6: Operating Instructions
OBD & Battery Analysis Scanner Operating Instructions Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document including all text under subheadings therein before set up or use of this product. TO PREVENT SERIOUS INJURY AND DEATH: Exhaust gases are poisonous.
Page 7: Battery Test
OBD & Battery Analysis Scanner Battery Test Notes： This product is a testing tool for 12V battery vehicles. The working DC voltage range of this product is 8 to 30 volts. The battery voltage will be slightly higher than the normal value when it is just fully charged.
Page 8: Battery Test
OBD & Battery Analysis Scanner Battery Test Battery Test can determine battery Use Up/Down button to select status, including voltage, CCA, electronic Battery Test, then press OK. resistance, rated CCA, charge value, Battery Test health and test results. According to the battery label, input AH value - battery 1.Battery Test rated capacity to start test.
Page 9 OBD & Battery Analysis Scanner Screen auto prompt Testing** Please wait for about 3 seconds. Use the Up/Down button to go to previous or next screen, select Battery Test Standard, then press Battery Test Testing** Selection Test Standard Figure12 1/10 10.
Page 10: Battery Test Result
OBD & Battery Analysis Scanner Battery Test Result Includes 5 types as following: Good Battery Bad Cell, Replace Battery Test Battery Test Healthy: 490CCA Healthy: 0CCA Charge: 12.64V Charge: 10.64V Ω Internal R= 6.1m Ω Internal R= 45.2m Rated: 500A Rated: 500A GOOD...
Page 11 OBD & Battery Analysis Scanner Battery System Standard and Rating The battery test will test each battery according to the selected system and rating. Use UP/DOWN key to select according to the actual system standard and rating marked on the battery. See in the below picture, the arrow indicates location. Figure19 CCA: Cold Cranking Amps, specified by SAE&BCI, most frequently used value for starting battery at 0°F (-18°C).
Page 12: Cranking Test
OBD & Battery Analysis Scanner Cranking Test Connect the clamp to the battery Cranking Test before the engine starts. Red clip connects positive (+) terminal and black clip connects negative (-). RPM Detected From main menu of battery test, use the Up/Down button to select Battery Test, then press OK.
Page 13: Charging System And Ripple Test
OBD & Battery Analysis Scanner Charging System and Ripple Test 1. Connect the clamp to the battery After the ripple test, tester will after the engine starts. Red clip automatically start the loaded connects positive (+) terminal and voltage test. It takes 3 seconds. black clip connects negative (-).
Page 14: Charging Test Result
OBD & Battery Analysis Scanner After the test finished, tester displays the effective charging volts, ripple Charging Test test result and charging test Loaded: 12.27V result.Press ESC to exit. Unloaded: 12.27V Ripple: NO-OUTPUT Figure31 NOTE: If no increase rev detected, it shall be the fault of generator regulator or connection with battery failed.
Page 15: Quick Test
OBD & Battery Analysis Scanner Quick Test Please wait for about 3 seconds. From main menu of battery test, press UP/DOWN key to select the Quick Test Ah, then press OK to Battery Test confirm. Main Menu Testing 1.Battery Test 2.Quick Test Ah 3.Review Data 4.Print Data...
Page 16: Review Data
Download Installsoftware Download KM301-BatteryTestPrint Connect the tool to the computer via the USB cable. Install the KM301-BatteryTestPrint.exe and select default. After installation, open the KM301-BatteryTestPrint on the desktop. Select print. If there are some data history in print Main Menu software, please kindly press the Clean 1.Battery Test...
Page 17 OBD & Battery Analysis Scanner Printing data. Print Data Printing Figure40 8. Once the data is transferred to the computer, the print software will show data to be print. Battery Test Healthy: 410A(CCA) Charge: 11.97V Ω Internal R= 6.61m Rated: 400A GOOD,RECHARGE Figure41...
Page 18 OBD & Battery Analysis Scanner - 16 -...
Page 19: Obd Overview
OBD & Battery Analysis Scanner Overview OBD II On-Board Diagnostics When a problem is detected, the OBD II The first generation of On-Board system turns on a warning lamp (MIL) on the Diagnostics (called OBDI) was developed vehicle instrument panel to alert the driver by the California Air Resources Board typically by the phrase of “Check Engine”...
Page 20: Definitions
OBD & Battery Analysis Scanner Definitions • Drive Cycle • EOBD: European On-Board A set of driving procedures that, Diagnostics when met, provide the Enabling Essentially the same as OBD II, with Criteria for the I/M Monitors to run the same Data Link Connector and and complete their diagnostic tests.
Page 21: I/M Monitors
OBD & Battery Analysis Scanner I/M Monitors Inspection and Maintenance diagnostic tests that the Control Modules perform on specific sub-systems of the vehicle. • Non-Continuous: Monitors that require There are two types of Monitors: specific operating conditions to be met •...
Page 22: Diagnostic Test Modes
OBD & Battery Analysis Scanner Diagnostic Test Modes Diagnostic Test Modes as described in the latest OBD II standard SAE J1979. Note: Not all Modes are supported by all vehicles. Mode $01 – Identifies the Powertrain Mode $06 – Non-Continuously Monitored information and shows current data Systems test results.
Page 23: Diagnostic Trouble Code
OBD & Battery Analysis Scanner Diagnostic Trouble Code A five digit alphanumeric identifier for a fault condition identified by the OBD II system. There are three types of DTCs: Pending - When a fault condition Stored - ADTC is stored when a fault is identified during a Drive Cycle, condition has occurred that meets but does not meet enough...
Page 24: Setup
OBD & Battery Analysis Scanner Setup From the Main Menu, use the Up/ Down/ Left/ Right button to select Setup, then press OK. Note: Setup is not required to operate the Scan Tool. System Setup Language Configure Monitors Unit of Measure Key Beep Set Status Beep Set Tool Self-test...
Page 25 OBD & Battery Analysis Scanner Configure Monitors Note: Configuring the Monitors is not required to operate the Scan Tool. Custom Data Set BEFORE CONFIGURING MONITORS: ] – Select/Deselect • Run “I/M Readiness Quick-Check” on page 26 to determine which ] – Select/Deselect all [OK] –...
Page 26 OBD & Battery Analysis Scanner Unit of Measure From System Setup, use the Unit of Measure Up/ Down button to select Unit Of Measure, then press OK English Select English or Metric, Metric then press OK. Figure58 Key Beep Set - Control Sound When Buttons are Pressed From System Setup, use the Key Beep Set Up/ Down button to select Key...
Page 27 OBD & Battery Analysis Scanner Tool Self-test From System Setup, select Tool Self-test, then press OK. Display Test From Tool Self-test, use the Up/ Toverify that the LCD screen is Down button to select functioning properly, a color test will run. Display Test, then press OK.
Page 28: I/M Readiness Quick-Check
OBD & Battery Analysis Scanner I/M Readiness Quick-Check View results and interpret data as Tocheck emissions readiness prior to described below. having a vehicle inspected for a state Emissions Test. To determine which Monitors to configure. CAUTION: Do not connect or disconnect the Scan Tool while the ignition is on or the engine is running.
Page 29: Diagnostic Test Modes
OBD & Battery Analysis Scanner Diagnostic Test Modes CAUTION: Do not connect or 2. Turn the vehicle’s ignition ON with the engine OFF. disconnect the Scan Tool while the ignition is on or the engine is running. Note: Not all vehicles return the same data, results may vary from the examples Connect the Scan Tool.
Page 30: Read Trouble Codes
OBD & Battery Analysis Scanner Read Trouble Codes Modes $03, $07 and $0A Request Emission-Related DTCs From Diagnostic Menu, usethe Diagnostic Menu 1/11 Up/ Down button to select Read Codes, then press OK. Read Codes Erase Codes Live Data View Freeze Frame I/M Readiness 02 Monitor Test...
Page 31: Dtc Lookup
OBD & Battery Analysis Scanner DTC Lookup Search the DTC library for code definitions. From the Main Menu, use the Up/ Down/ P0212 Left/ Right button select DTC Lookup, then press OK. Injector Circuit/Open Cylinder 12 Figure 72 Press the button to view likely causes for the DTC.
Page 32: Erase Codes
OBD & Battery Analysis Scanner Erase Codes Mode $04 Clear/Reset Emission-Related Diagnostic Information WARNING! Do not clear any DTCs Choose whether or not to erase codes. before the vehicle has been repaired and the system has been checked Erase Codes completely by a qualified technician.
Page 33: View Live Pid Data
OBD & Battery Analysis Scanner View Live PID Data This function allows viewing of one frame From Live Data, use the Up/ Down button to of data only, for multiple frame viewing, see select View Data, then “Record Live PID Data” on page 33. press OK.
Page 34 OBD & Battery Analysis Scanner Custom Data Set - View Selected PIDs From View Data, use the Up/ Down Select PIDs to view. button to select Custom Data Set, then press OK. Custom Data Set 4/20 View Data 2/3. DTC_CNT √...
Page 35: Record Live Pid Data
OBD & Battery Analysis Scanner Record Live PID Data View multiple frames of data collected over a From Live Data, use the Up/ Down button to select Record Data, then press OK. period of time. This section contains advanced Live Data 2/3.
Page 36 OBD & Battery Analysis Scanner Complete Data Set - Record All PIDs (continued) From Select Memory, have After the passenger determines the passenger select a memory that recording is finished, stop location, then press OK. driving. Data can be viewed immediately or saved to view later.
Page 37 OBD & Battery Analysis Scanner Custom Data Set - Record Select PIDs Have the passenger select a Trigger WARNING! DO NOT attempt to operate Mode: the Scan Tool while driving the vehicle. Have a passenger operate the Scan Tool. • Manual Trigger - Recording willbegin after memory location is selected.
Page 38: Playback Live Pid Data
OBD & Battery Analysis Scanner Custom Data Set - Record Select PIDs (continued) After the passenger determines Interpret data according to “Playback Data” on page 34. that recording is finished, stop driving. Data can be viewed Note: If necessary, have a qualified immediately or saved to view later.
Page 39: View Freeze Frame Data
OBD & Battery Analysis Scanner View Freeze Frame Data Mode $02 Request Powertrain Freeze Frame Data View the vehicle’s operating View data. conditions when a DTC is stored. This section contains advanced View Freeze Frame functions. Some data may need to be interpreted by a qualified technician.
Page 40: 02 Monitor Test
OBD & Battery Analysis Scanner 02 Monitor Test Mode $05 Request Oxygen Sensor Monitoring Test Results (2007 and older vehicles only) View the oxygen sensor test data on Select a sensor, then press OK. pre-CAN vehicles. For CAN vehicles, see On-Board O2 Monitor Test Monitor Test on page 39.
Page 41: On-Board Monitor Test
OBD & Battery Analysis Scanner On-Board Monitor Test Mode $06 Request On-Board Monitoring Test Results for Specific Monitored Systems View test data for Non Continuous Monitors. Select vehicle manufacturer. This section contains advanced Vehicle Manufacturer 1/28 functions. Some data may need to be interpreted by a qualified technician.
Page 42: Component Test
OBD & Battery Analysis Scanner Component Test Mode $08 - Request Control of On-Board System, Test or Component If the vehicle responds, a confirmation Command the PCM to run an Evaporative Leak Test. message will be displayed. This section contains advanced Component Test functions.
Page 43: Mode $09 Vehicle Information
OBD & Battery Analysis Scanner Mode $09 Vehicle Information View vehicle information, such as Vehicle Info. VIN, Calibration ID, and CVN. Vehicle ID Number Note: Not all vehicles return the same Calibration ID data, results may vary from the examples Cal.
Page 44: Modules Present
OBD & Battery Analysis Scanner Modules Present View Control Module IDs and their 2. Control Module will display. Communication Protocols. 3. In Figure 127 below, the example vehicle Note: Not all Modules are supported by uses a CAN bus and has the followingODB all vehicles.
Page 45: Print Data
OBD & Battery Analysis Scanner Review Data - Mode $01 - Current Powertrain Diagnostic Data Select and view data as needed. View data from the last recorded test. Note: Not all vehicles return the same data, results may vary from the examples Review Data given herein.
Page 46: Update
This function allows you to update the Scan Tool software and DTC library through a computer. Download the driver from the internet: Go to www.kzyee.com Search for KM301 Download Installsoftware Download Update Software (if there is an update available) Open Update Instructions PDF Follow instructions Connect the Scan Tool to the computer with the supplied USB Cable.
Page 47 OBD & Battery Analysis Scanner - 45 -...
Page 48 Limited 90 Day Warranty KZYEE makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
