Summary of Contents for Steelman PRO 78823

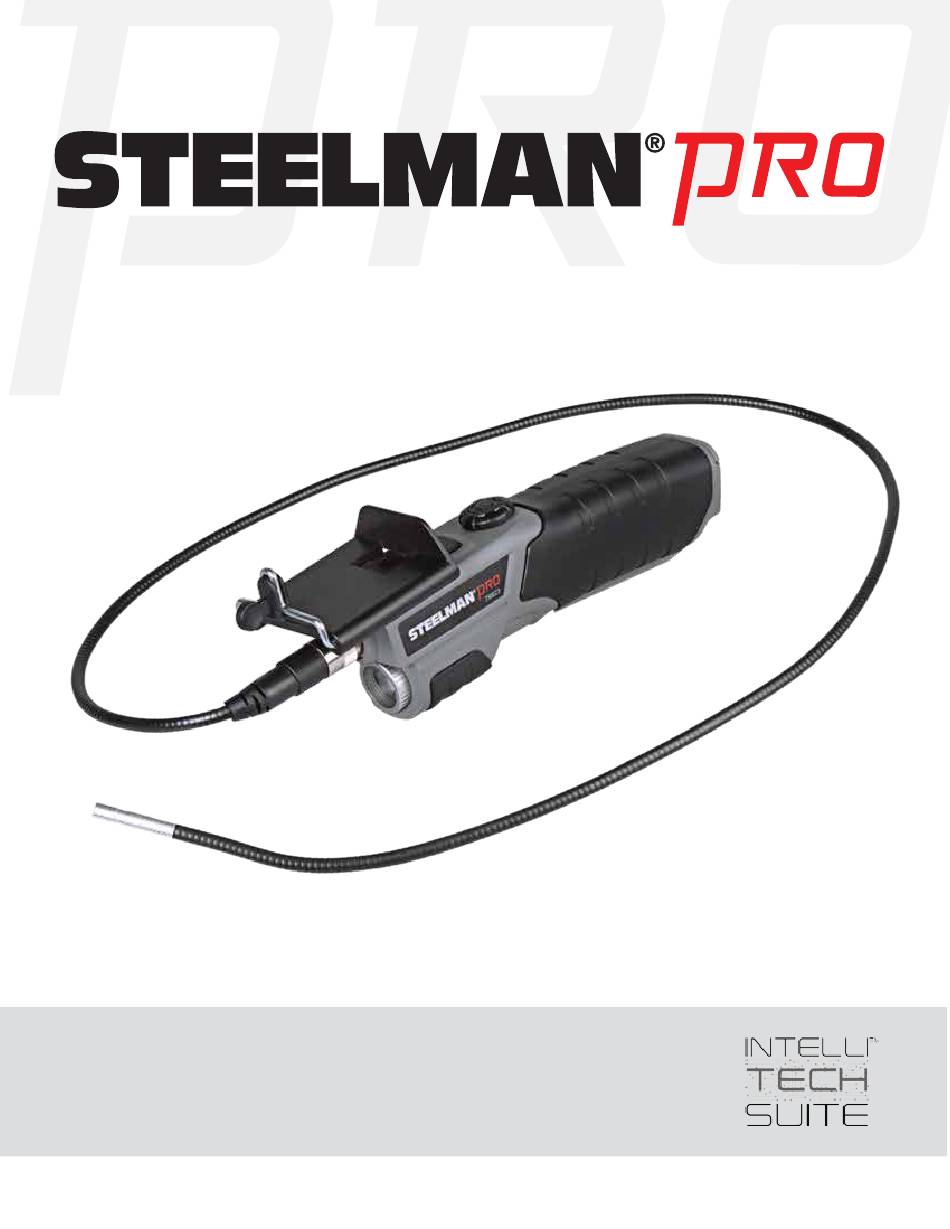

- Page 1 7 8 8 2 3 WI - FI VI D EO S C O PE U S E R G U I D E...
-
Page 2: Table Of Contents
Android Phone and Tablet Software Setup ™ iPhone and iPad Software Setup PC Software Setup Using the Steelman PRO Wi-Fi Video Scope - Mobile Devices Camera Selection Page Camera Preview Page Viewing and Sharing Saved Images and Videos Software Settings... -
Page 3: Overview
Up to 5 viewing devices may be connected to the Wi-Fi at one time. Applications The Steelman PRO Wi-Fi Video Scope has many potential applications, including, but not limited to: • Automotive repair and maintenance • Inspection of hard to reach or hard to see areas on vehicles, equipment, and structures •... -
Page 4: Component Overview
Wi-FI Video Scope Set Up Component Overview 78 8 24 78 82 5 Wi-Fi Video Scope Wi-Fi Video Scope Shaft Wi-Fi Video Scope Hardware Set-up 1. Open battery compartment by sliding battery door down 2. Insert 4 AA alkaline batteries, making sure to insert correctly according to polarity 3. -
Page 5: Android ™ Phone And Tablet Software Setup
• Press the “Search” button to scan for Wi-Fi networks • Select the “Steelman_PRO_Video_Scope” network • Connect to the network and enter the password “00000000” • Start the Steelman PRO Wi-Fi Video scope application Wi-Fi Settings Screen Wi-Fi Connection Screen... -
Page 6: Iphone And Ipad Software Setup
Software Setup • Open iTunes Store and search for “Steelman PRO Video Scope” • Download and install app • On your iPhone or iPad open the Settings page • From the Settings page, select “Wi-Fi Settings” • Select the “Steelman_PRO_Video_Scope” network •... -
Page 7: Pc Software Setup
• On the taskbar, click the Wi-Fi Settings icon • Click and highlight “Steelman_PRO_Video_Scope” network Wi-Fi Networks List • Click the “Connect” button • When prompted, enter the Wi-Fi network password, “00000000” • Start the Steelman PRO Wi-Fi Video Scope application... -
Page 8: Using The Steelman Pro Wi-Fi Video Scope - Mobile Devices
Using the Steelman PRO Wi-Fi Video Scope - Android, IPhone, and IPad Camera Selection Page • Launch the Steelman PRO Wi-Fi Video Scope App • From the “Camera” page, select “Steelman PRO Video Scope” Camera Page Camera Preview Page The camera preview page displays a real time picture of what the camera aimed at and also allows control over camera functions. -
Page 9: Viewing And Sharing Saved Images And Videos
• To capture an image of what the camera is currently displaying, press the button. A message that the image was successfully saved will be displayed. • To record a video, press the button. The will flash GREEN and a recording message will appear, along with a timer of the elapsed time of the recording. - Page 10 • To access the Media Gallery, click the button from the Camera Selection page. • Select the “Steelman PRO Video Scope” from the Source List. Thumbnails of all saved items will be displayed. • Tap on any file to view it. Tap and hold on the file to delete or share.
-
Page 11: Software Settings
Software Settings Several software functions can be modified using the Settings page. Additionally, customer support contact information can be found here. • To access the settings page, click on the button from the Camera Selection screen. • The Auto Record Audio slider determines if the microphone will be activated or not during recording. -
Page 12: Using The Steelman Pro Wi-Fi Video Scope - Windows 10
Using the Steelman PRO Wi-Fi Video Scope - Windows Camera Selection Page • Launch the Steelman PRO Wi-Fi Video Scope App • From the “Settings” page, select Device “IP Camera:WifiVideoScope” Camera Preview Page The camera preview area displays a real time picture of what the camera aimed at and also allows control over camera functions. -
Page 13: Viewing And Sharing Saved Images And Videos
Viewing and Sharing Saved Images and Videos • Videos and Photos can be viewed by going to the Photos or Videos Tab and clicking on the desired image or video. • To print photos, click on the button • To email photos, click on the button •...
