Summary of Contents for CLEANCUT ULTRA-LOW

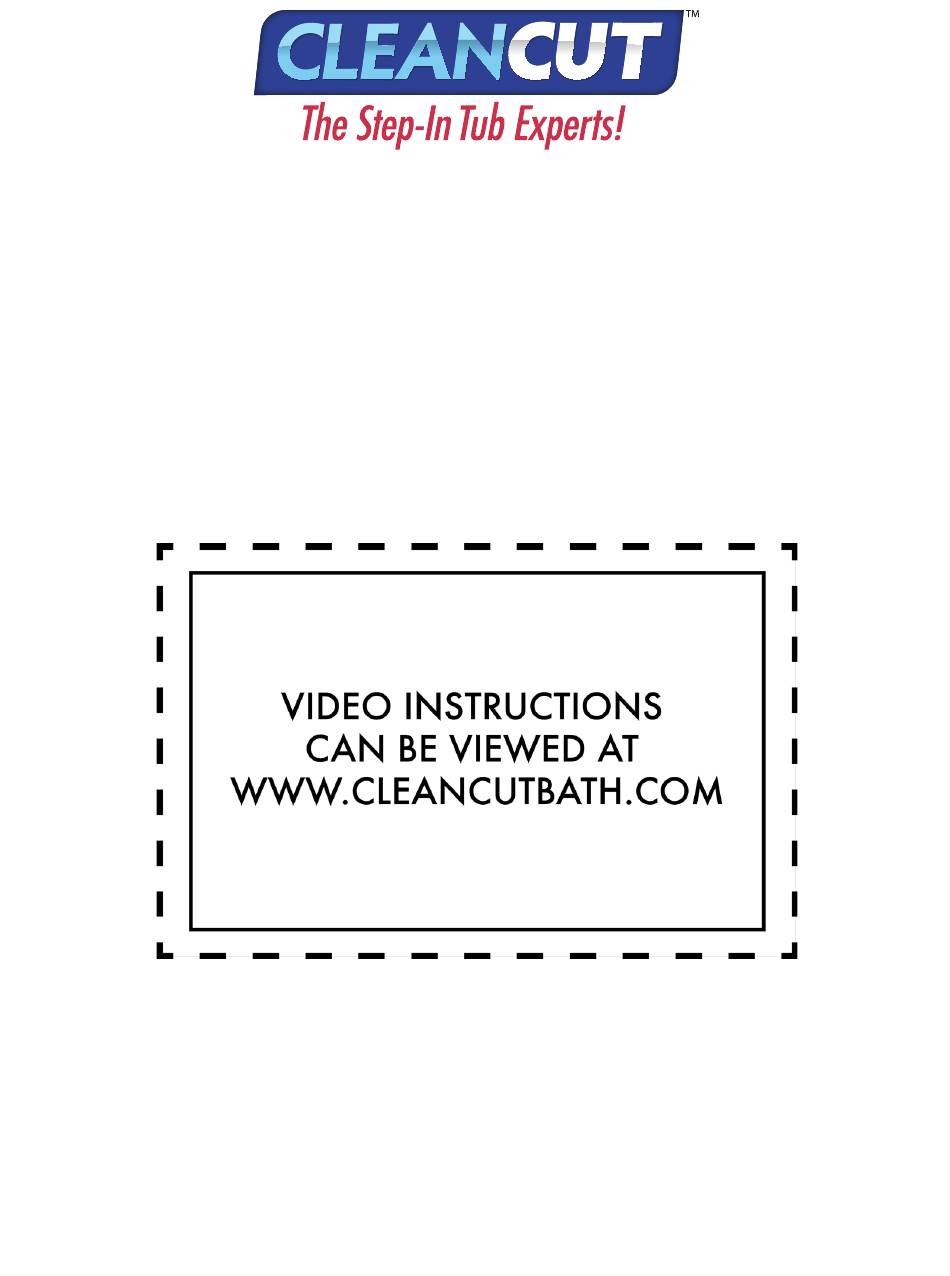

- Page 1 CLEANCUT ULTRA-LOW INSTALLATION GUIDE COPYRIGHT © 2020 SAFEWAY SAFETY STEP, LLC (DBA “CleanCut”) All Rights Reserved Reproduction or Distribution of this Installation Manual is Strictly Prohibited...
-
Page 2: Additional Questions
SUBSEQUENT USE OF THE CLEANCUT ULTRA-LOW. FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS INSTALLATION MANUAL SHALL VOID ANY WARRANTY GIVEN WITH RESPECT TO THE CLEANCUT ULTRA-LOW. IMPORTANT REMINDER - PLEASE REGISTER THE PRODUCT WARRANTY BY VISITING WWW.CLEANCUTBATH.COM/WARRANTY. ADDITIONAL CARE & USE AND WARRANTY INFORMATION IS INCLUDED IN THE KIT. - Page 3 Page 3 of 11 This manual includes an overview of the CleanCut Ultra-Low kit as well as step-by-step instructions for installation. CleanCut Ultra-Low Installation Kit The CleanCut Ultra-Low installation kit includes the following items: • One CleanCut Ultra-Low • One CleanCut Ultra-Low Support Box Structure (large & small box) •...
- Page 4 Keep in mind that it may not be possible to place the CleanCut Ultra-Low directly in the center of the tub due to obstructions in the tub area such as the placement of sinks, vanities or commodes and the use of shower seats may warrant moving the opening forward as well.
- Page 5 Then cut all four downward cuts. Finish by cutting the two adjoining top pieces. The opening for the CleanCut Ultra-Low is now completed and you can remove the cut-out section. Use caution when removing the cut-out section as there may be sharp or jagged edges both on the cut-out segment and along the edges of where the cuts were made on the sides of the tub.
- Page 6 CleanCut Ultra-Low. Place the right end of the CleanCut Ultra-Low on the ground in order to trace the left side of the CleanCut Ultra-Low. Place the top of the paper template approximately 1” from the top of the CleanCut Ultra-Low (Figure 3).
- Page 7 ULTRA-LOW ULTRA-LOW. Place the Ultra-Low as shown in Figure 4. Use a tape measure and transfer the shape of the inside of the tub edge to the Ultra-Low. The inside of the tub may be irregular in shape, so measurements for the inside line must be made every 3”...
- Page 8 CleanCut Ultra-Low. It is important that a blade less than 2” is used to cut out the CleanCut Ultra-Low so as to prevent accidentally cutting through the top of the Ultra-Low. Snap off any excess length on the stock jigsaw blade beyond 2”.
- Page 9 Page 9 of 11 Support Box Structure Installation Once the CleanCut Ultra-Low has been cut and a satisfactory fit into the tub opening is achieved, it will be necessary to assemble the support box structure to provide support to the CleanCut Ultra-Low.
- Page 10 Insert the small box in the channel. At this point, do not adhere the small support box to anything. Place the large support box into the channel and over the top of the small box. Place the CleanCut Ultra-Low into position and compress the CleanCut Ultra-Low downward to determine the proper height and placement for the support box structure.
- Page 11 Spend some time at the end of the job to again clean up the tub and bathroom area. Upon completion, place a sign on CleanCut Ultra-Low warning not to use the tub for 2 days while the adhesive cures.
