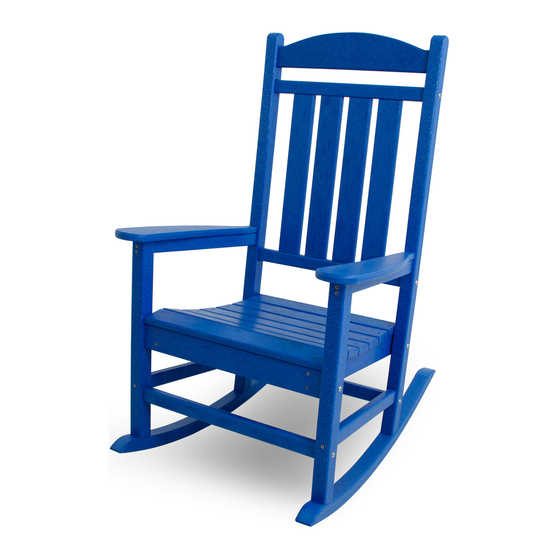

Polywood R100 Manual

Model: R100
__(1) Hardware pack
__(2) Sideframes
__(2) Rocker bottoms
__(1) Back
__(1) Seat
__(1) Long brace
__(1) Short brace
__(1) Head piece
TOOLS NEEDED
4MM HEX KEY, ALLEN, T-HANDLE
INCLUDED
4MM HEX KEY, SHORT, FOR DRILL
INCLUDED
Qty. Description
A - .27 X 2-1/2 SOCKET WAFER A
4
B - .27 X 3 SOCKET WAFER A
12

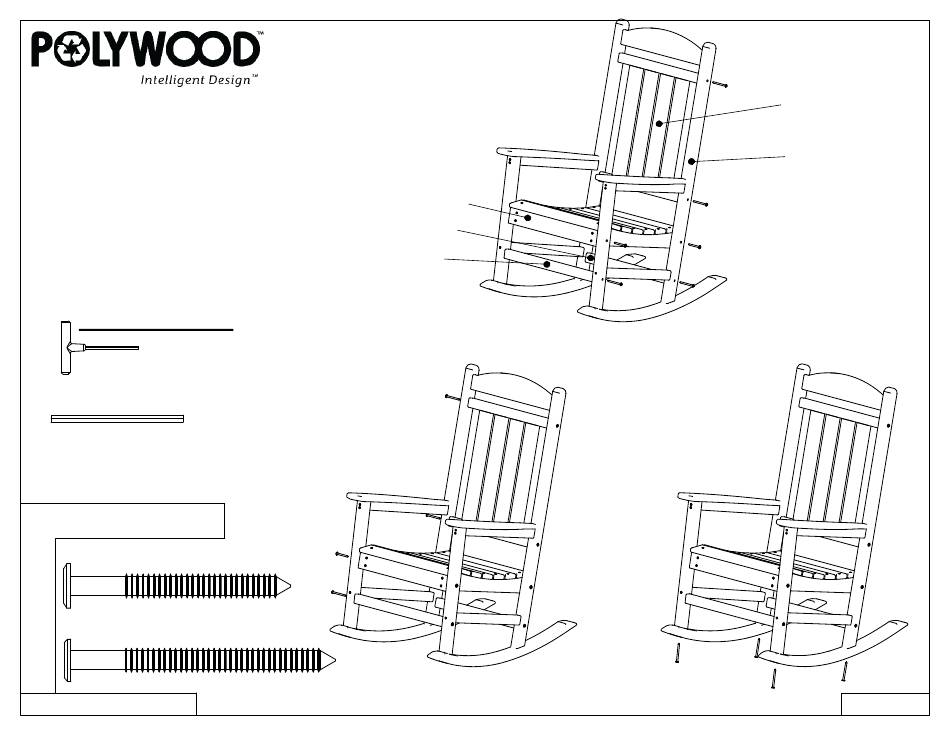

ASSEMBLY INSTRUCTIONS
Step 1
Attach long brace, short brace and back
using (4) .27x3" screws.
Attach seat using (2) .27x2 1/2" screws
Note: front of seat is wider
Seat frame
Short brace
Long brace
Step 2
Insert head piece into top of post
Repeat step 1 on other side
HARDWARE IS COATED STAINLESS STEEL UNLESS OTHERWISE SPECIFIED
A
B
Step 3
Attach rocker bottom with (4) 14x3" screws
Head
NOTE: Partialy thread both
screws
into post before tightening.
Rocker bottoms may require
some
flexing for proper fit.
B
back frame
sideframe
B
A
B
9/13/2012
