TECH TIP: WC400 Router Component Installation
The following is the instructions for installing a router into the WC400.
Setup
1.
Insert an activated 2FF-sized SIM into the router. Unscrew and remove the MC400 modular modem door from
the router. Insert the card into the SIM1 slot, metal contacts up and notch in. It will click into place. Depress
again to remove. Insert the secondary SIM card into the SIM2 slot if desired.
2.
If using a MC400 modular modem, insert activated 2FF-sized SIM card(s) into the modem.
Insert the card into the SIM1 slot, metal contacts down and notch in. Insert the secondary SIM into the SIM2
slot, if desired.
900 Klein Road – Plano, TX 75074
Tel: 972.424.6511; Fax:
972.663.0767
www.luminator.com

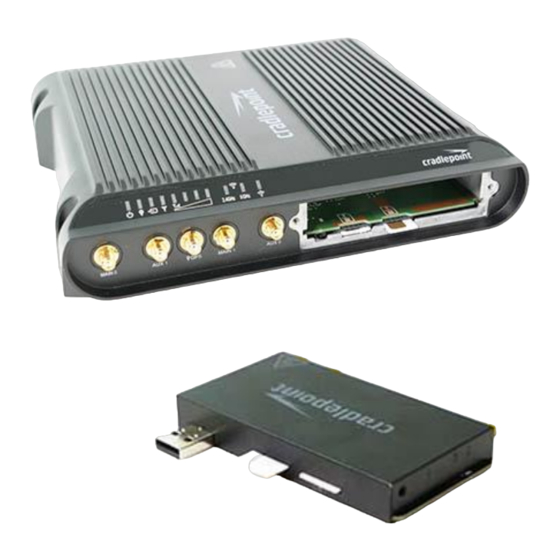

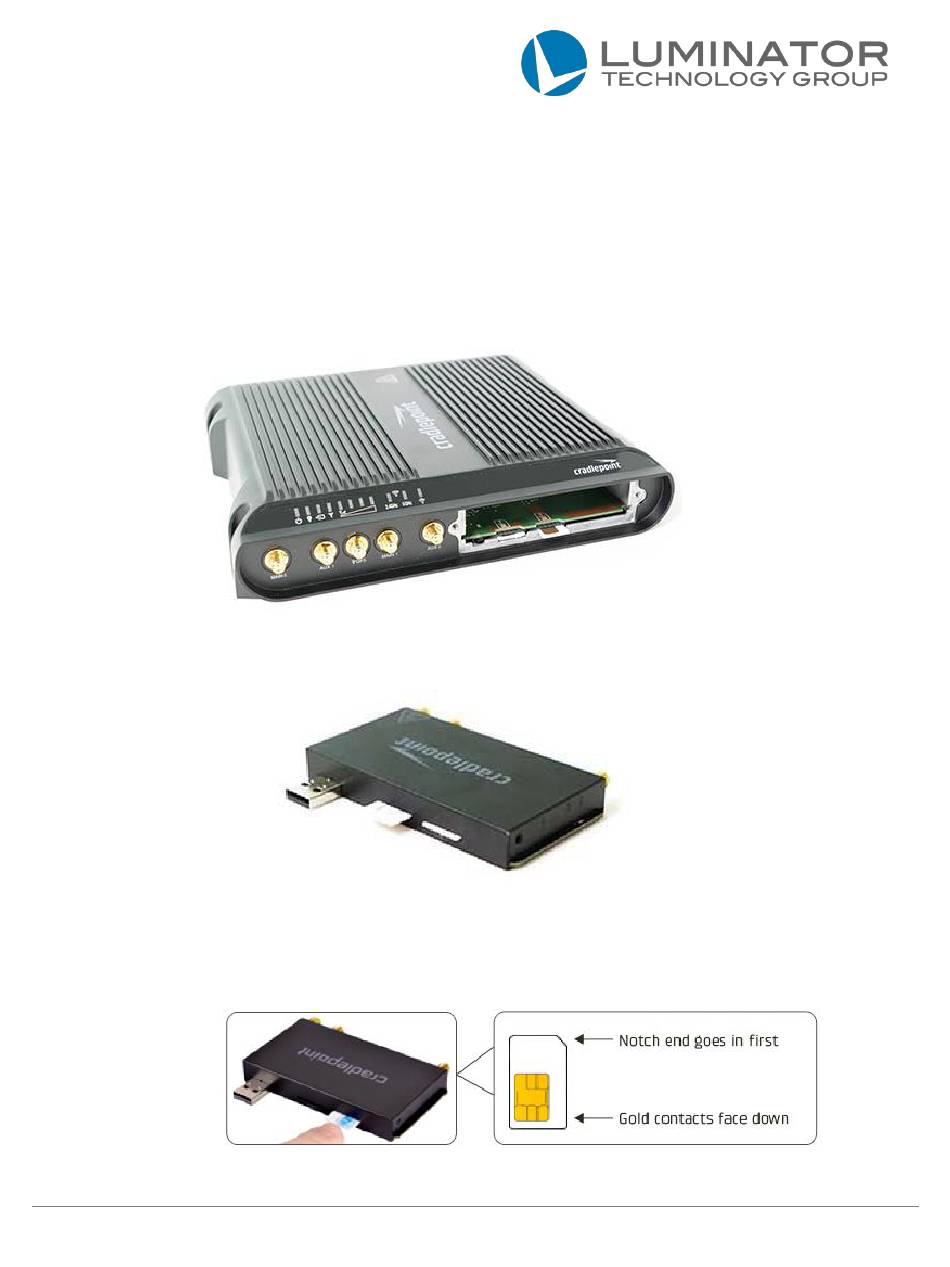

Figure 1: WC400 without cover
Figure 2: MC400 Modem
Figure 3: SIM card installation
Advertisement
Table of Contents
Summary of Contents for Luminator MC400
- Page 1 The following is the instructions for installing a router into the WC400. Setup Insert an activated 2FF-sized SIM into the router. Unscrew and remove the MC400 modular modem door from the router. Insert the card into the SIM1 slot, metal contacts up and notch in. It will click into place. Depress again to remove.
- Page 2 Slide the MC400 modular modem into the IBR1700, Cradlepoint logo side up, USB plug first. Replace the modem door and secure with the screws. Remove the plastic port covers from the modem door before returning the cover to the router.
- Page 3 When an external USB modem is plugged in, only the Signal Strength LEDs will light up Please contact technical support at: 888-AVT-USA1 (425-483-7100) or by email: support@apollovideo.com for further information or assistance. Page 3 900 Klein Road – Plano, TX 75074 Tel: 972.424.6511; Fax: 972.663.0767 www.luminator.com...
