Summary of Contents for Innowater PHRX

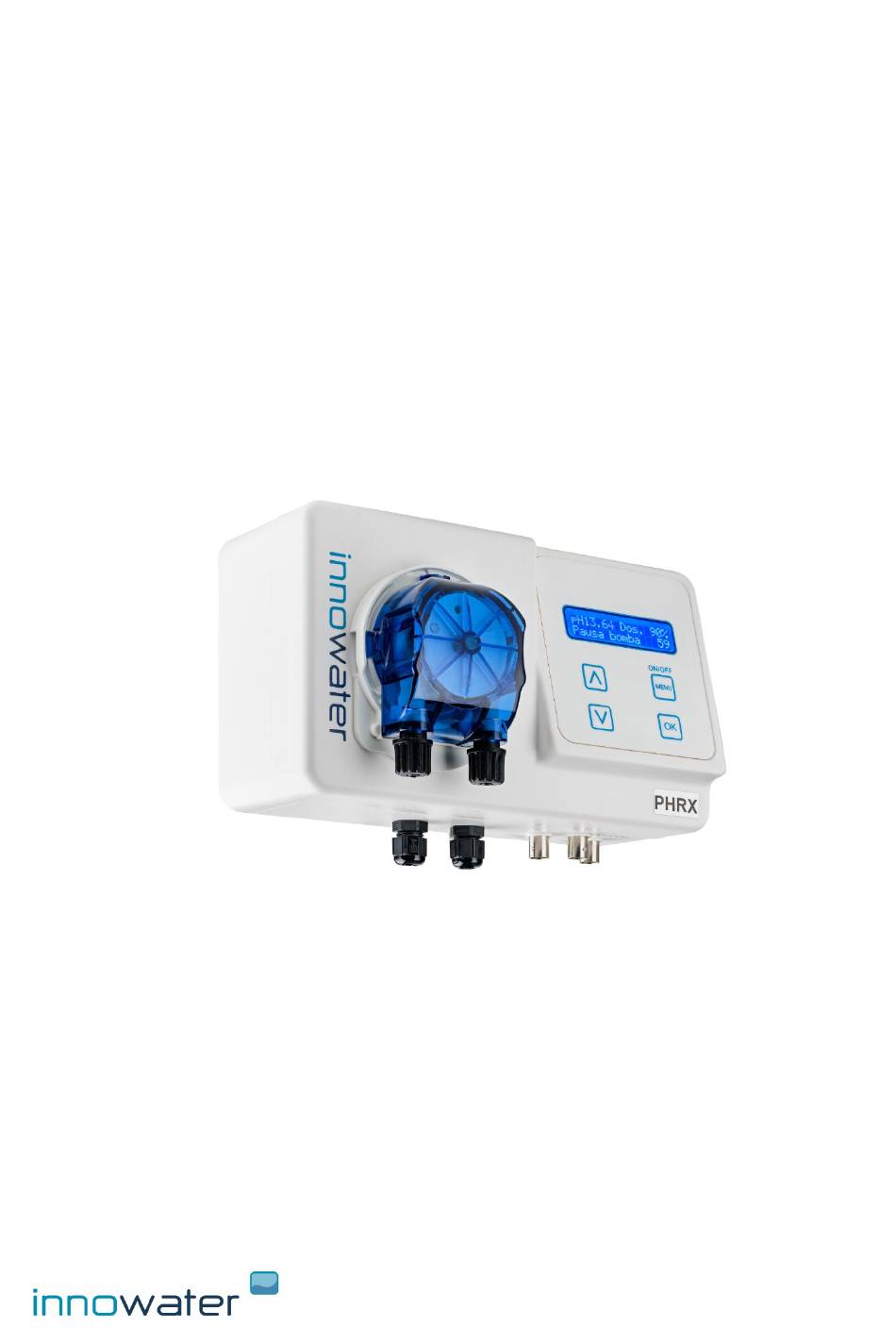

Page 1 MANUAL Innowater PHRX Rev.05/19...
Page 3 WARNINGS Before carrying out any installation or maintenance of the pHrx, disconnect it from the mains power supply. This appliance is not intended for use by persons (including children) that lack experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a responsible person.
Page 4: Table Of Contents
4.3-4.4 Probe calibration ..........10 4.5. Factory calibration ..........11 4.6. Dosing alarm ............12 5. ORP configuration ..........13 5.1. Setpoints ............... 13 5.2. ON/OFF mode (with chlorinator) ....... 15 5.3. Probe calibration ............ 15 5.4. Factory calibration ..........16 INNOWATER PHRH...
Page 5: Description
1. DESCRIPTION The pHrx allows you to correct the pH an ORP level of your pool. The device monitors the pH continuously by means of its pH sensor and sends a dosing signal to the pump which will, in turn, injects acid in the pool when needed. The device will control the work of the pump depending on the measurement of the probe and the setpoints programmed.
Page 6: Instalation
Immerse the suction filter together with the level probe that you have fixed to into the acid container and make sure that it stands upright and stable on the bottom. Close the container as good as you can. INNOWATER PHRH...
Page 7 ORP control cable output Control cable provides a dry contact to control the device. Depending on the setpoint configured it can generate a proportional PWM duty cycle or an ON/OFF signal. If the device controls a saltwater chlorinator, setpoint must be configured as an ON/OFF signal.
Page 8: Operating
Pump stopped (pH below or equal to setpoint) (2) ORP output ON: Closed contact (ORP below of setpoint) output OFF: Open contact (ORP equal or above setpoint) Λ V) key To go back to main screen push arrow ( INNOWATER PHRH...
Page 9: Start Up. On/Off
3.3 Start up— ON/OFF To turn on the equipment press ON/OFF (MENU) for two seconds. Main screen will appear. To turn OFF, from the main screen, press ON/OFF (MENU) for two seconds. ON/OFF 7.40 650 mV 100% Press Menu to access to the main menu. Use the arrows to scroll the different functions.
Page 10: Setpoints
- When the pH is between both points, the chlorinator will send a proportional signal defined by both points. For example, in the case of the figure, if the pH is at 8 the pump will dose at 40%. INNOWATER PHRH...
Page 11: Ph Configuration
- When the pH is above the upper set point, the pump will dose to the fixed volume defined for the upper point. In the case of the figure, 90%. A: pH B: pH You can set both points and choose the percentage of dosage for each of them. To do this, press the cursor with the MENU key in the parameter you want to modify and act with the arrows to change the value.
Page 12: 4.4 Probe Calibration
Factory values. For example, if when calibrating with the pH4 solution the reading value, Lec, indicates 6.05, the calibration won´t be saved and the value 4.00 will be maintained. INNOWATER PHRH...
Page 13: Factory Calibration
4.5 Factory calibration pH configuration 5 Factory calib. The submenu 5 Factory calib, gives you the possibility to reset general calibration parameters that correspond, approximately, with those of a new probe and which are the ones programmed by the chlorinator from factory values. This can be useful if you have saved successive calibrations and do not have the buffer solutions for a correct calibration.
Page 14 ORP value to stabilize so, altough dosage is at 100%, ORP output will remain OFF for a period of time. Also, the device has an hysteresis to avoid fast changes and rebounds. INNOWATER PHRH...
Page 15: Orp Configuration
5.1 Setpoint ORP Config. 2 Setpoints To enter press OK, it will show the following screen: A: RH 650mV B: RH 700mV The calculation of the production is made by setting of two setpoints, A and B, and the % of production that is desired for each of those points. A: RH 650mV B: RH 700mV - When the ORP is below the lower set point, the signal will work at its maximum...
Page 16 - When ORP is below the value, output will remain ON (closed contact) - If ORP is above the value, output will remain OFF (open contact) 5.2.1 To work with a domestic INNOWATER salt water chlorinator, you have to set the following parameters in the chlorinator: Enter “Control Ext”...
Page 17: On/Off Mode (With Chlorinator)
Activate external control: MENU CONTROL EXT External control 1 on /off ACTIVATED In “2 mode”, choose the option “Open = active”: MENU CONTROL EXT Mode 2 Mode Open = active In “3 Production”, set 0%: MENU CONTROL EXT Production if 3 Production active This way, when chlorinator receives the order to produce chlorine, it will do it at the...
Page 18: Factory Calibration
MAIN MENU LCD Contrast 4 LCD Contrast - ■ ■ ■ ■ Press OK key to enter and scroll with the help of the arrows to choose the desired LCD contrast. Press OK key to confirm and Exit. INNOWATER PHRH...
