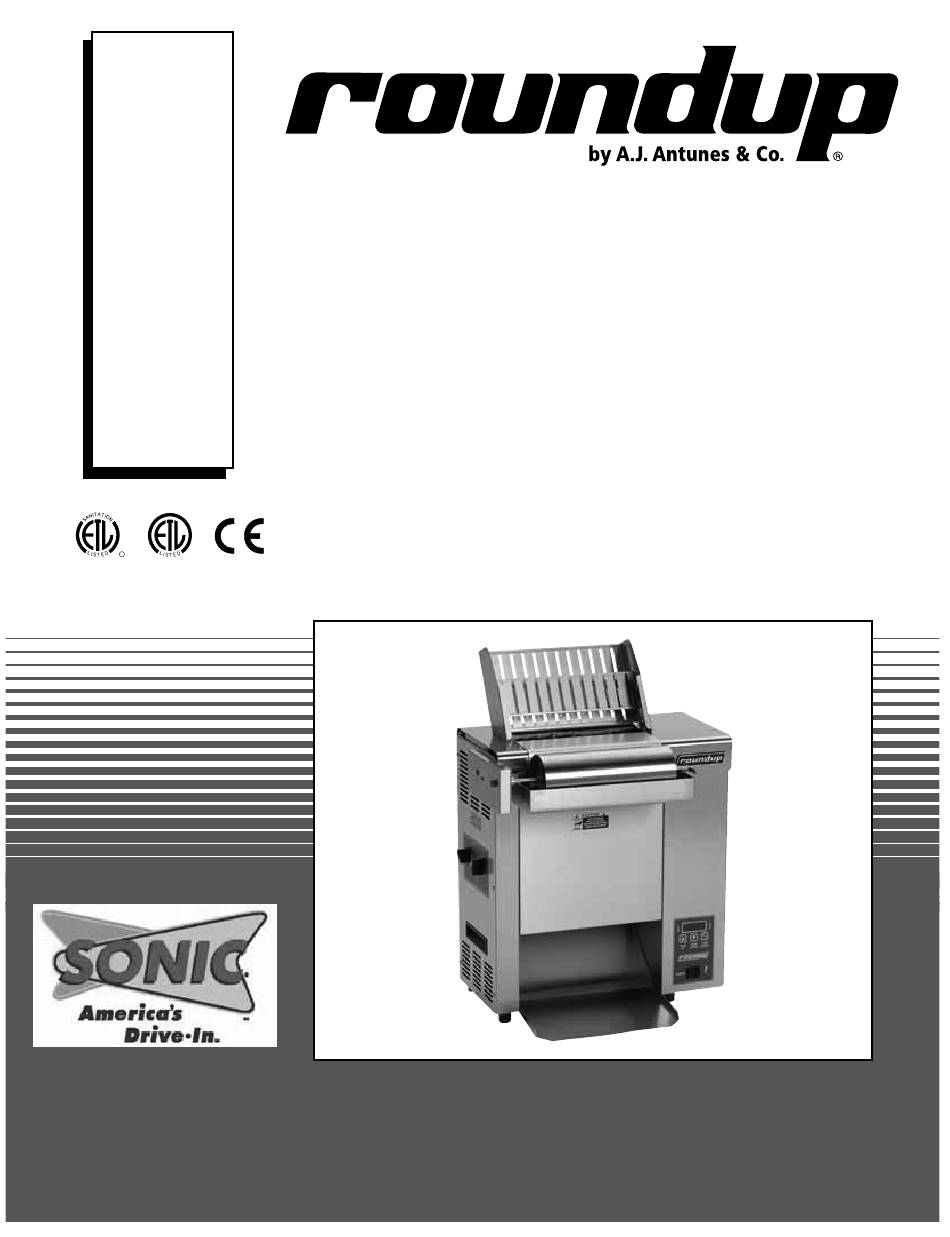

Sonic roundup VCT-1000 Owner's Manual

Vertical contact toaster

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

MaNufactuRiNg

NuMBeRS:

9210718

9210725

9210726

Vertical contact

toaster

With Mechanical Driven Butter Wheel Model

VCT-1000

P/N 1010926 Rev. B 04/12

Sonic

owner

s Manual

Table of Contents

Need help?

Do you have a question about the roundup VCT-1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sonic roundup VCT-1000

Page 1 MaNufactuRiNg NuMBeRS: 9210718 9210725 9210726 Vertical contact toaster With Mechanical Driven Butter Wheel Model VCT-1000 P/N 1010926 Rev. B 04/12 Sonic owner s Manual ’...
Page 2: Table Of Contents
• Damage from tampering with, removal of, or changing any preset control or safety device. iMPoRtaNt! Keep these instructions for future reference. if the unit changes ownership, be sure this manual accompanies the equipment. P/N 1010926 Rev. B 04/12 Sonic A.J. Antunes & Co.
Page 3: Service/Technical Assistance
You may also contact the factory at 1-877-392-7854 Model No.: if you have trouble locating your nearest authorized Service agency. Serial No.: Mfg. No.: Refer to the service agency directory included with your unit. P/N 1010926 Rev. B 04/12 Sonic A.J. Antunes & Co.
Page 4: Important Safety Information
Service agency. products will be highlighted with bold face let- ters followed by the abbreviated HcS (Hazard communication Standard). See Hazard communication Standard manual for the appro- priated Material Safety Data Sheets (MSDS). P/N 1010926 Rev. B 04/12 Sonic A.J. Antunes & Co.
Page 5: Specifications
250 Vac 9210726 Non–Locking (assembly only) Vct-1000cf NeMa 5-15P 15 9210725 amp, 120 Vac Non–Locking (assembly only) Dimensions 15-1/4” (387.35 mm) 20-5/16" (515.87 mm) 29-3/16” (741.36 mm) 9-3/4” (247.65 mm) P/N 1010926 Rev. B 04/12 Sonic A.J. Antunes & Co.
Page 6: Installation
• Do NOT block or cover any openings on the unit. service agency by ordering P/n 7000249 (3-Pack) • Do NOT immerse cord or plug in water. or P/n 7000250 (10-Pack). • Keep cord away from heated surfaces. • Do NOT allow cord to hang over edge of table or counter. • Connect the unit to the power supply. Refer to the specification plate for the proper voltage. P/N 1010926 Rev. B 04/12 Sonic A.J. Antunes & Co.
Page 7 Yellow Support Switch front conveyor Belt chain Rear conveyor cover assembly Spring tensioner assembly Bun chute front conveyor cover assembly figure 1. Vct-1000 toaster with mechanical Driven butter wheel P/N 1010926 Rev. B 04/12 Sonic A.J. Antunes & Co.
Page 8: Operation
Heat Shield (figure 1). the conveyor belt chains will nOt rotate unless the Heat shield is seated properly in place and activat- ing the conveyor interlock safety switch. P/N 1010926 Rev. B 04/12 Sonic A.J. Antunes & Co.
Page 9: Maintenance
6. once the silver side of the Release Sheet is 7000249 (3-Pack) or P/n 7000250 (10-Pack). dry, Repeat Step 5 on the black side. if properly cleaned, the Release Sheet surface should be smooth to the touch when dry. P/N 1010926 Rev. B 04/12 Sonic A.J. Antunes & Co.
Page 10: Replacing The Black And Silver Release Sheet
9. Reassemble the conveyor Belt chain onto shorten the conveyor belt chain by 1/4” overall. the sprockets as described below in Replacing conveyor Belt chains. 12. Reassemble the unit and return to service. P/N 1010926 Rev. B 04/12 Sonic A.J. Antunes & Co.
Page 11: Replacing The Spring Tensioners
7. replacing spring tensioner assy. nOte: make sure the conveyor belt chain is installed under the Upper support rod and over the lower support rod. P/N 1010926 Rev. B 04/12 Sonic A.J. Antunes & Co.
Page 12: Troubleshooting
Belt chains too loose. adjust conveyor Belt chain length as described in the Maintenance section of this manual. Spring tensioner assembly is Replace Spring tensioner assembly if damaged damaged or missing. or missing. P/N 1010926 Rev. B 04/12 Sonic A.J. Antunes & Co.
Page 13 Release Sheet is sticky and not Clean Release Sheets according to the Daily Cleaning smooth (due to improper clean- section of this manual. Replace if the Release Sheet ing or excessive butter/oil is still sticky after cleaning. accumulation. P/N 1010926 Rev. B 04/12 Sonic A.J. Antunes & Co.
Page 14: Wiring Diagram
% 14 GA. TFE-200°C TERMINAL BLOCK HI-LIMIT *WHT THERMOSTAT %WHT POWER SWITCH = WHT MOTOR 50 Hz INDICATOR LIGHT THERMOSTAT % BLK 60 Hz % BLK % BLK INTERLOCK SWITCH 50 Hz P/N 1010926 Rev. B 04/12 Sonic A.J. Antunes & Co.
Page 15: Replacement Parts
Vertical contact toaster rePlacement Parts Parts identification interlock Switch Drive Chain idler Sprocket Rear Drive Front Drive Sprocket Sprocket temperature control thermostat fan Blade Power Switch Hi-Limit control Hi-Limit control Removable cap Drive Motor Assy. P/N 1010926 Rev. B 04/12 Sonic A.J. Antunes & Co.
Page 16 Vertical contact toaster RePLaceMeNt PaRtS (continued)          2 "  8 " 6 " 4 " 6 " 8 "   P/N 1010926 Rev. B 04/12 Sonic A.J. Antunes & Co.
Page 17 Vertical contact toaster RePLaceMeNt PaRtS (continued) P/N 1010926 Rev. B 04/12 Sonic A.J. Antunes & Co.
Page 18 Vertical contact toaster RePLaceMeNt PaRtS (continued) 30, 94 31, 95 P/N 1010926 Rev. B 04/12 Sonic A.J. Antunes & Co.
Page 19 Strain Relief Kit incl. #63 123 0021507 Bun feeder 61 05P2199* Spacer 124 2140152 Lubricant (not shown) 62 0500464 Retainer, Bearing * sold only in packages of 10. 63 040P138* Locknut, 1/2” P/N 1010926 Rev. B 04/12 Sonic A.J. Antunes & Co.
Page 20: Limited Warranty
limiteD warranty equipment manufactured by Roundup Food equipment Division of A.j. Antunes & Co. has been constructed of the finest materials available and manufactured to high quality standards. these units are warranted to be free from electrical and mechanical defects for a period of one (1) year from date of purchase under normal use and service, and when installed in accordance with manufacturer’s recommendations.
