GE JRP20 Installation Instructions page 2

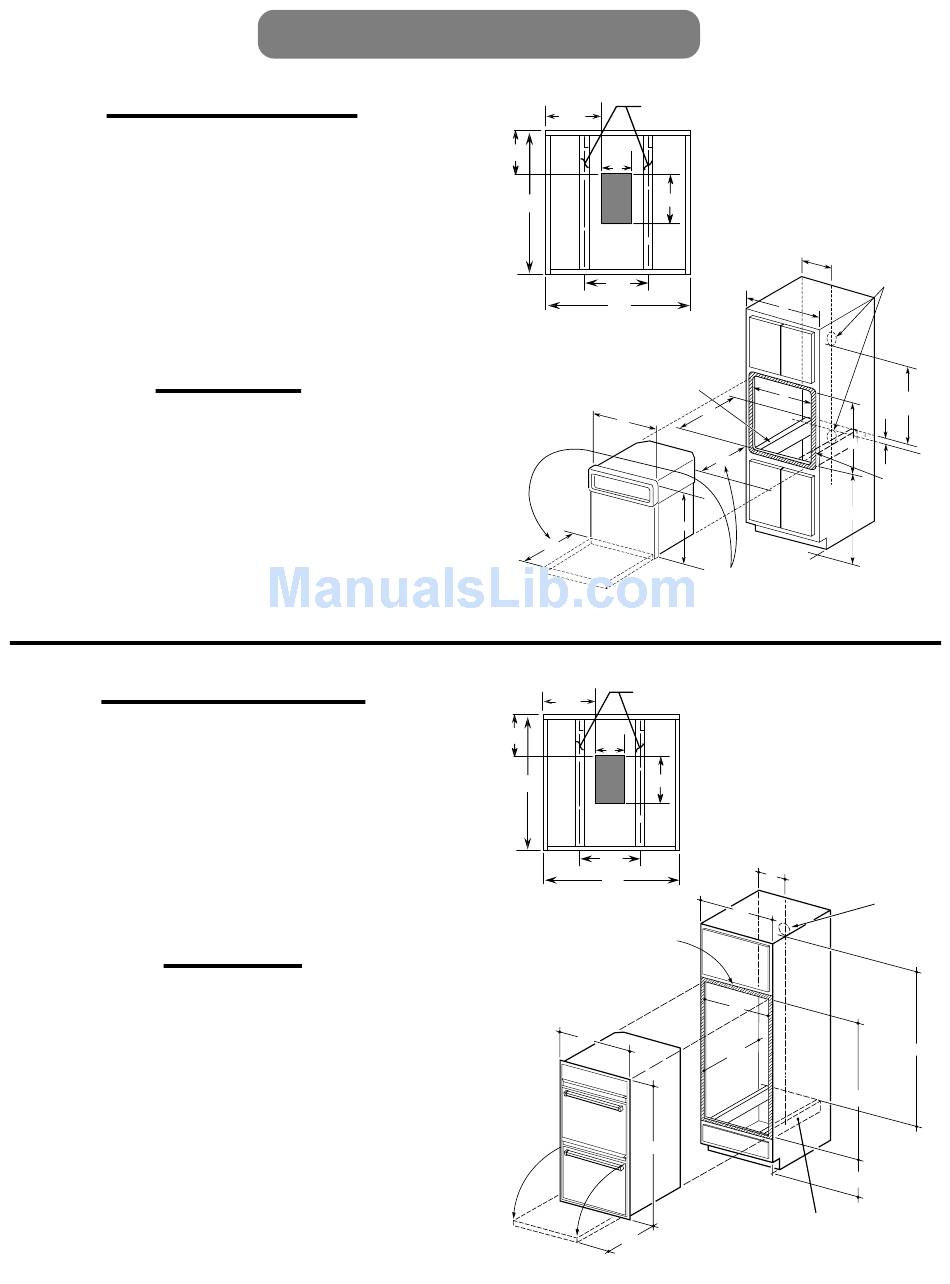

Fig. 1 — SINGLE OVEN
NOTE: Locate an approved junction box in the
suggested location, a minimum of 23 7/8" above the
runners.
Be sure the oven support is solid enough to support
90 pounds. Also be sure the oven support is level
and straight. There is no way to level the oven
after installation.
If a solid bottom is used instead of runners, a 6" x 10"
rectangle must be cut out of the bottom (See Fig. 1)
for optimum performance and proper air circulation.
DIMENSIONS
A. Cabinet Width
B. Cutout Width
C. Cutout Height
D. Cutout Depth
E. Cutout Location
H. Overall Height
W.Overall Width
Fig. 2 — DOUBLE OVEN
NOTE: Locate an approved junction box in the
suggested location, a minimum of 48" above the runners.
Be sure the oven support is solid enough to support
155 pounds. Also be sure the oven support is level
and straight. There is no way to level the oven after
installation.
If a solid bottom is used instead of runners, a 6" x 10"
rectangle must be cut out of the bottom (See Fig. 2)
for optimum performance and proper air circulation.
DIMENSIONS
A. Cabinet Width
B. Cutout Width
C. Cutout Height
D. Cutout Depth
E. Cutout Location - 12 3/4" Min.
H. Overall Height
W. Overall Width
PREPARE OPENING
- 24"
- 22 1/2"
- 27 5/8" Min. 28 1/8" Max.
- 23 1/2" Min.
- 32 1/2"
- 28 1/4"
- 23 3/4"
- 24" Min.
- 22 1/2"
- 48 1/8"
- 23 1/2" Min.
- 48 3/4"
- 23 3/4"
2" x 4" OR
EQUIVALENT
9"
RUNNERS
MIN.
c c
7"
6"
24"
11"
24"
MIN.
Equivalent Runners
on 11" Centers
W
20"
2" x 4" OR
EQUIVALENT
9"
RUNNERS
MIN.
c c
7"
6"
24"
11"
24"
MIN.
ALLOW 7/8" FOR
OVERLAP OF OVEN
OVER ALL EDGES
OF CUTOUT
W
20" MINIMUM CLEARANCE TO
ADJACENT CORNERS, DRAWERS,
OR WALLS, ETC.
2
10"
10"
A
2" x 4" or
B
D
20"
H
Allow minimum of 20" for clearance
to adjacent corners, drawers, or walls, etc.
10"
10"
A
B
D
H
2" x 4" or
EQUIVALENT RUNNERS
Junction Box
Locations
23 7/8"
Min.
C
5"
Allow 7/8"
for overlap
of oven
over all
E
edges
of cutout.
JUNCTION
BOX
LOCATION
48" MIN.
C
E
