Saturn South SS9002 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SS9002 ESBox LT
User Manual – Version 3
18 Apr 2017
D101.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS9002 and is the answer not in the manual?

Questions and answers

Summary of Contents for Saturn South SS9002

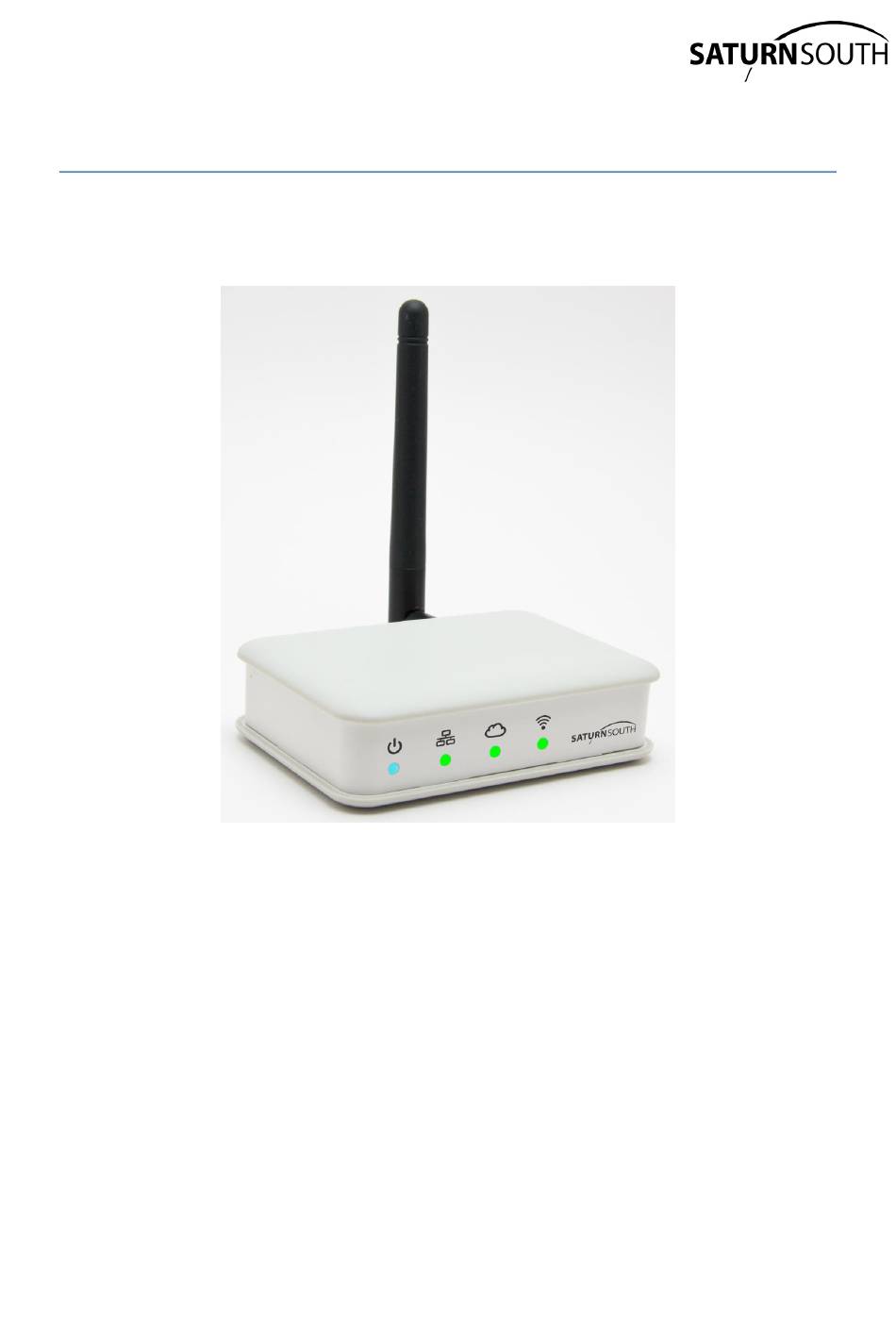

  • Page 1 SS9002 ESBox LT User Manual – Version 3 18 Apr 2017 D101.2...

  • Page 2: Table Of Contents

    Table of Contents Safety Notices ..........................3 LED Quick Reference ........................4 Button Quick Reference ........................5 Product Overview ........................... 6 Technical Specifications ........................7 Web Interface Overview ......................... 8 Overview Page ........................8 Wedit – Inbuilt AJAX text editor.................... 10 Devices Page .........................

  • Page 3: Safety Notices

    Servicing of this device in the field is not possible and should not be attempted. If servicing is required, please return this device to Saturn South or an authorised distributor. Opening the product enclosure, for any reason, will render the Product Warranty void.

  • Page 4: Led Quick Reference

    ESBox application error. Report the colour of the outline in the colour of the blink, such as , which indicates blinking green. For next three LEDs to Saturn South for debug example: purposes. ESBox is in ‘Update’ mode.

  • Page 5: Button Quick Reference

    Button Quick Reference SS9002 ESBox LT Release Feature Name Button Intention of Sequence Notes Sequence Factory Reset LLLSS Performs factory reset. The ESBox will lose all knowledge of any currently paired devices, and will clear any existing OTA update registrations.

  • Page 6: Product Overview

    ZigBee Home Automation compatible devices. The SS9002 ESBox LT is capable of storing up to 28 days of measurement data for 8 load control devices in internal memory. Logged data can be retrieved on demand by a remote server or sent automatically at a configurable interval.

  • Page 7: Technical Specifications

    5 Technical Specifications Type: ESBox LT ZigBee-Ethernet Gateway Model: SS9002.1 Power Supply: 5VDC 0.6A Operating Temperature Range: -20°C to +65°C Storage Temperature Range: -25°C to +80°C Relative Humidity: 10-95% non-condensing Average Power Consumption: <4W Mass: 0.080kg Dimensions: 80 x 56 x 23.5 mm Standards and Approvals: •...

  • Page 8: Web Interface Overview

    6 Web Interface Overview The ESBox LT includes a web interface for configuring the device’s network options, ESCo/backhaul connection settings, and for managing the ZigBee network. Overview Page The ESBox Overview page is the default page, and can be accessed from other pages using the ‘Overview’...
  • Page 9 The AJAX update period for the terminal and other display options are available in the terminal settings menu, which can be accessed by clicking on the cog icon above the terminal. This document does not provide a comprehensive set of documentation for the functionality exposed through the ESBox’s terminal.

  • Page 10: Wedit - Inbuilt Ajax Text Editor

    Wedit – Inbuilt AJAX text editor One of the key features built in to the ESBox web application is the in-browser AJAX based text wed editor (wedit). Wedit can be used to modify ESBox configuration files manually, or to manually save new update hex images to the ESBox’s non-volatile flash.

  • Page 11: Devices Page

    • Locate All Devices – Instruct all connected Saturn South devices to blink the ‘Locate’ pattern. Used to easily identify all of the devices that are connected to this ZigBee network.
  • Page 12 • Show Available Updates - If there are Over The Air (OTA) updates registered on the ESBox, clicking to expand this item will show a list of all files currently registered. New OTA files can be registered on the ESBox using the ‘+’ button to the right of the ‘Show Available Updates’ button, and then entering a valid update token into the text field that appears inline and clicking on the tick button.
  • Page 13 For non-coordinator devices in the device list, the following controls are provided: • Request Device to Leave - Send a signal to this device to ask it to leave the network. For Saturn South devices, this will result in the remote device performing a standard Factory Reset. •...

  • Page 14: Network Options

    ESBox and ZigBee network. The protocol uses human readable commands encoded in JSON, with communications between the ESBox and ESCo initiated by the client at a configurable frequency.A full specification for the ESBox-ESCo Protocol is available on request from Saturn South.

  • Page 15: Installation

    8 Installation The ESBox requires only a connection to a power supply and a wired Ethernet connection to function correctly. Each ESBox is supplied with an external screw-on antenna that should be attached during installation. When power is applied to the ESBox and Ethernet is connected, the device should start up and connect to the ESCo within 6 seconds.

  • Page 16: Errors And Troubleshooting

    9 Errors and Troubleshooting The following table gives an exhaustive list of possible error indications that can be displayed on the ESBox LT. Please refer to this table when reporting issues to Saturn South. LED Status Comments No Error or Unknown Error.
