DesignHouse 547695 Assembly Instructions

SINGLE HANDLE KITCHEN FAUCET
Notes: The picture in this installation instructions is for reference
only, pls refer to actual product in installation process.

MODELS

547695-Polished chrome
547737-Brush nickel
547620-Polished chrome
547638-Satined nickel

PRODUCT SPECIFICATIONS

SPECIFICATIONS
ASME A112.18.1/CSA B125
ANSI/NSF 61-9
1 or 3-hole installation - optional deck plate and side spray not included
Polished chrome and Satined nickel finish

SAFETY INFORMATION

Please read and understand this entire manual before attempting to
assemble, operate or install the product.
WARNING
• Protect your eyes with safety glasses when cutting or soldering water
supply lines.

PREPARATION

Before beginning assembly of product, make sure all parts are present.
Compare parts with package contents list and hardware contents. If any
part is missing or damaged, do not attempt to assemble the product.
Contact customer service for replacement parts.
Estimated Assembly Time: 30 minutes
Tools Required for Assembly (not included): Adjustable Wrench, Groove
Joint Pliers, Pipe Wrench, Phillips Head Screwdriver, and Supply Lines.
www.todaysdesignhouse.com
Design House is a registered brand
of DHI Corp.Mequon,WI 53092
1-800-558-8700
NSF/ANSI 372
SPECIFICATIONS
Ceramic cartridges
Manufactured to include no more than 0.25% weighted average lead
content on wetted surfaces
CAUTION
• If you solder the joints during installation of the faucet, the seats,
or the warranty will be voided on these parts.
• Cover the sink drain to avoid losing parts.
Installations may vary depending on how the previous faucet was
installed. Supplies necessary for the installation of the faucet are not
all included; however, they are available wherever plumbing supplies
are sold.
Prior to beginning installation, turn off the hot and cold water lines,then
turn on the old faucet to release built-up pressure. When installing the
new faucet, hand tighten the connector nuts. DO NOT OVERTIGHTEN.
Connections that are too tight will reduce the integrity of the system.

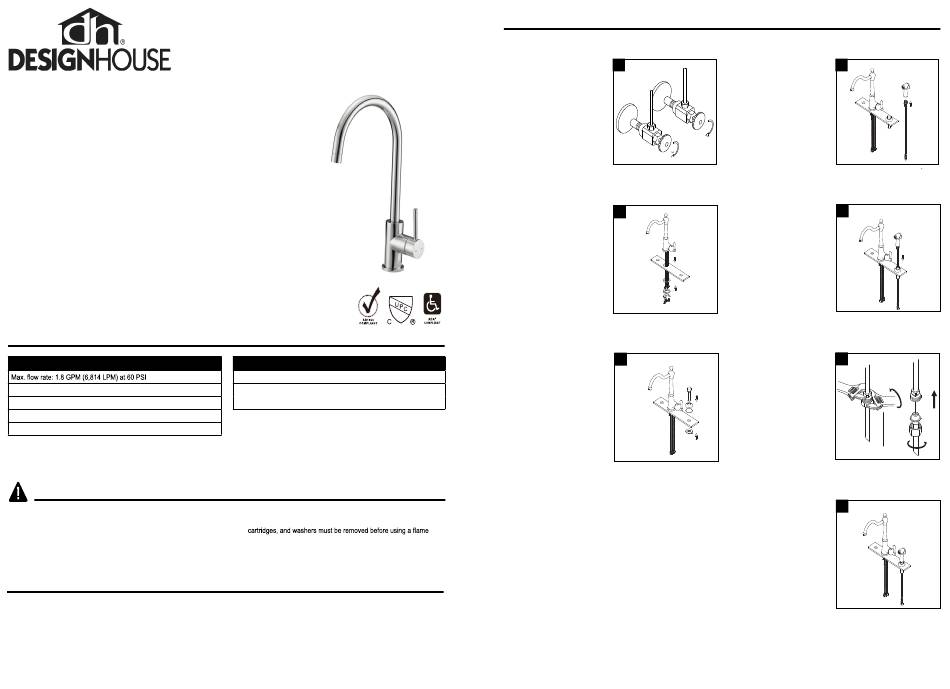

ASSEMBLY INSTRUCTIONS
1. Turn off water under sink.
Remove old faucet making sure
not to damage water lines.
2. Install the spout through top of
sink. From underneath the sink,
replace the rubber seal, metal
washer and lock nut. Tighten the
screws on the lock nut to secure
the body.
3. Insert optional spray holder
through the hole in sink.Screw
lock nut to shank and tighten.
www.todaysdesignhouse.com
4-8-16
4.
Screw spray head onto spray
1
hose.
5. Insert spray hose down through
2
hole in spray holder. Attach
lower end of spray hose to
entral supply tube in faucet.
6. Tighten end of shank with
3
wrench and slip coupling nut
onto inlet port.
7. After installing faucet, remove
aerator and turn on water to
remove any debris.
Re-assemble aerator.
2
4
5
6
7
