Summary of Contents for WELLSYSTEM SPA COMPLETE

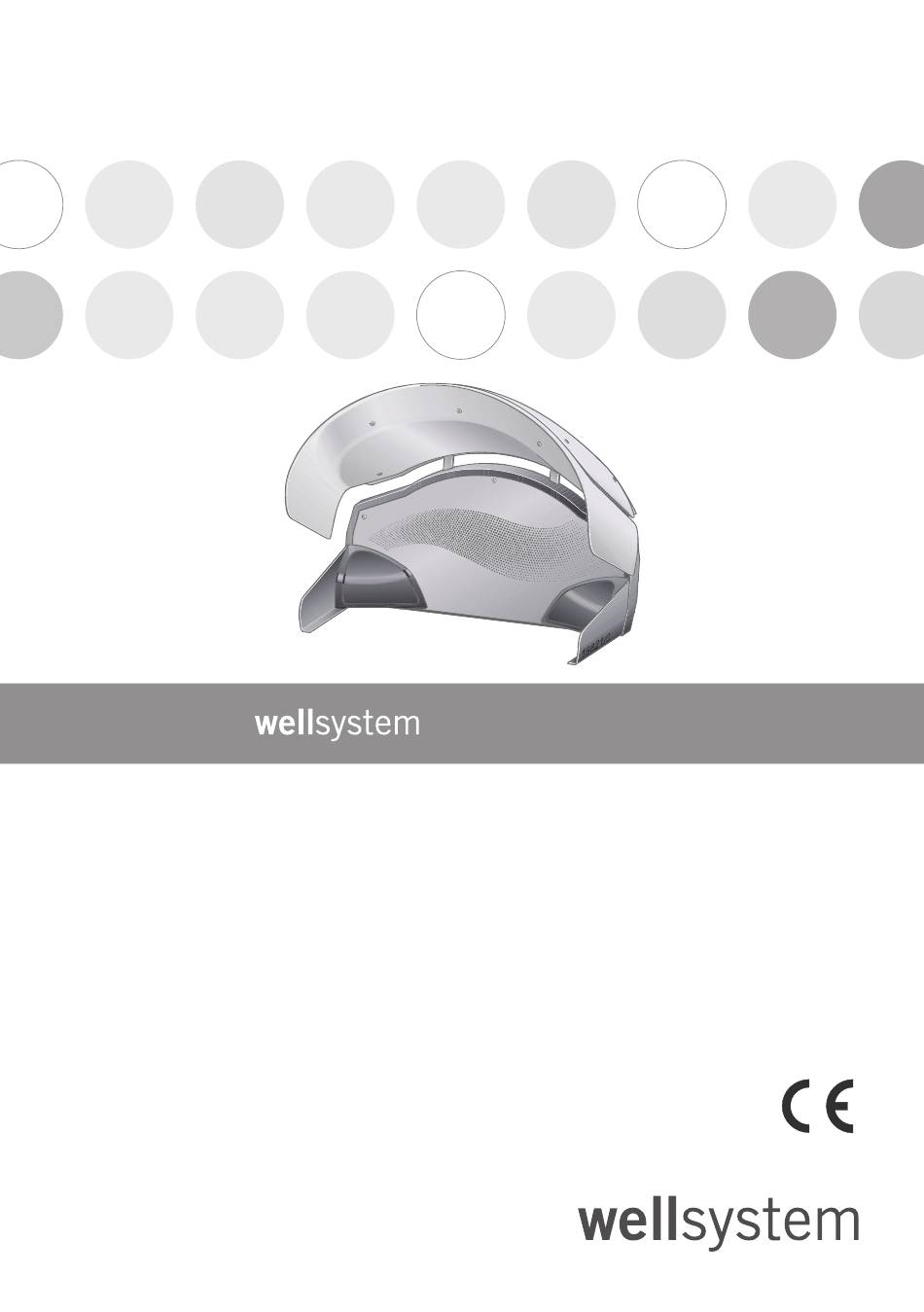

- Page 1 SPA_COMPLETE Operating instructions and Installation Instructions...
- Page 3 Operating instructions and Installation Instructions Translation of the original operating instructions and installation instructions wellsystem SPA_COMPLETE 1026902-00 en / 06.20 wellsystem...
- Page 4 Legal notice Legal notice Manufacturer: JK-Products GmbH Köhlershohner Straße 60 53578 Windhagen GERMANY Tel.: +49 (0) 22 24 / 818-140 Fax: +49 (0) 22 24 / 818-166 Customer service / JK-International GmbH, Technical service Division JK-Global Service (Spare part orders for Köhlershohner Straße 60 components): 53578 Windhagen...
-
Page 5: Table Of Contents
Table of contents Table of contents Safety instructions and warnings ..........5 General ....................5 1.1.1 Definitions .................... 5 1.1.2 Symbol explanation ................6 1.1.3 Symbols on the device ................ 6 Intended use ..................8 Foreseeable misuse ................8 Device-specific safety instructions ............. 9 1.4.1 Prohibited usage ................. - Page 6 Spare parts and accessories ............43 Pre-configuring the settings ............. 44 6.4.1 Unit settings (Setup Manager) ............44 Appendix ..................49 wellsystem SPA: EMC information ..........49 7.1.1 Table 201: Guidelines and manufacturer's declaration – Electromagnetic emissions.............. 49 Index ....................50...
-
Page 7: Safety Instructions And Warnings
Safety instructions and warnings Safety instructions and warnings To ensure safe operation of the device, it is necessary to read the following safety instructions and warnings carefully and comply with them. The safety instructions summarized here are repeated in the corresponding chapters, where necessary. -
Page 8: Symbol Explanation
Safety instructions and warnings 1.1.2 Symbol explanation The following types of safety notices are employed in these operating instruc- tions: DANGER! Type and source of hazard This safety notice indicates the existence of a direct danger to body and life. DANGER! Type and source of hazard This safety notice warns of dangers to body and life which... - Page 9 Safety instructions and warnings Maximum 3 devices stack. Maximum transport weight. This way up. Danger to life! Dangerous voltage! The instructions must be read and the mains plug (and where necessary the coin device plug) must be removed before opening the unit. Fragile! Protect against wetness and moisture.
-
Page 10: Intended Use
Safety instructions and warnings Intended use The wellsystem SPA COMPLETE unit described here is a retrofittable accessory for wellsystem dry water massage units with a touch display. The unit can only be used in conjunction with a dry water massage unit such as the wellsystem MEDWAVE TOUCH or WAVE TOUCH. -
Page 11: Device-Specific Safety Instructions
Safety instructions and warnings Device-specific safety instructions 1.4.1 Prohibited usage The following people are not allowed to use the equipment: Pregnant women People under 18 years of age Epileptics People with illnesses which cause light sensitivity People who take medication or herbal remedies which cause light sensi- ... -
Page 12: Scope Of Delivery
Safety instructions and warnings of the risks, taking into account your operating instructions. – You must ensure that the cleaning and disinfection intervals are complied with, in particular cleaning and disinfection after every session. – You must ensure that your staff provide your customers with appropriate advice, in particular regarding the types of application, possible risks and the operation of the device. - Page 13 Safety instructions and warnings Assembly DANGER! Personal danger due to electric shock or burns! – The assembly and electrical connection must comply with the national regulations. See Assembly / commissioning page 17. Setup location CAUTION! Salty air! Contaminated air! Unit may be damaged due to corrosion of the housing and of electric components.
-
Page 14: Commissioning
The unit can only be used in conjunction with a dry water massage unit such as the wellsystem MEDWAVE TOUCH or WAVE TOUCH. To decommission the SPA COMPLETE temporarily or permanently, the dry water massage unit must be electrically disconnected by pulling out the mains plug. -
Page 15: Directives
Safety instructions and warnings Packaging All packaging consists of 100 % recyclable materials. Packaging brought into circulation by the JK Corporate Group that is no longer required can be re- turned to the JK Corporate Group. Your partner agency or dealer will be hap- py to advise. -
Page 16: Aux (Music)
Safety instructions and warnings 1.5.12 AUX (music) If an MP3 player or a smartphone is used privately during the application, then this does not constitute a public performance in the sense of copyright law, so that no reporting or fee obligation exists on the part of the studio oper- ator towards the organisation responsible for issuing the commercial perfor- mance rights. -
Page 17: Signs And Stickers On The Device
Safety instructions and warnings Signs and stickers on the device Danger area warning signs and important information about components are attached to the device. The signs shown below are examples. Ensure that the warning signs are always clearly recognisable and legible. Any missing warn- ing signs or stickers must be replaced. -
Page 18: Warranty
The sticker is located at various places in the unit. Warranty Wellsystem grants the customer a warranty of 24 months starting from hand- over. This is a guarantee that the goods do not possess any faults which eliminate or decrease the value or the capability of the device for normal us- age. -
Page 19: Assembly / Commissioning
WARNING! Damage to the massage device! The rubber blanket can be damaged or the paint scratched when placing the wellsystem SPA on the device. – Place it on the massage device with care. There are hook-and-loop strips on the bottom left and right which serve to attach the device to the massage device. - Page 20 Assembly / commissioning – Separate the hook-and-loop strips on both sides. – Remove the film from the two hook-and-loop strips. – Apply hook-and-loop strip to the edge at the head end and stick it flush to the frame. – Lift the device by the transport bracket. –...
- Page 21 Assembly / commissioning – Check the position and correct, if necessary. – Unscrew the screws. Tool: Ratchet wrench with 4 mm hexagon socket wrench – Insert the angle brackets into the openings. – Tighten each angle bracket with one screw. –...
-
Page 22: Inserting The Sd Card
Assembly / commissioning Removing the transport bracket – Remove the screws and store them. – Remove the transport bracket and store it. Tool: Philips No. 2 screwdriver or battery-powered screwdriver with PHZ-bit 2 Inserting the SD card NOTE: Pre-recorded SD cards for a JK audio system are also sub- ject to payment obligation for commercial usage. -
Page 23: Commissioning
Assembly / commissioning The assembly is the same process in reverse order. – Replace and close the cover. – Tighten the screw. Commissioning WARNING! Damage to device possible! Where there are great differences in temperature between the transport route and the installation site the device may not be put into operation immediately after being set up. - Page 24 Assembly / commissioning – Insert connectors in the control box: 22/52...
-
Page 25: Description
Description Description Scope of delivery wellsystem SPA COMPLETE unit SD card (music) wellsystem SPA WATER fragrance Transport bracket (pre-assembled) Allen key Mounting for coin device connection (only for the customer service) Operating instructions (with installation instructions) ... -
Page 26: Functional Description
Tailored to individual needs, the wellsystem SPA COMPLETE sensually rounds off the dry water massage and ensures optimal relaxation. The wellsystem SPA COMPLETE gives the user a feeling of security and allows them to enjoy the dry water massage in a particularly relaxed way. -
Page 27: Operation
Operation Operation User safety information DANGER! Danger of hearing damage! Listening to music at a high volume can result in permanent hearing damage. – Do not set the volume too high. Please observe the safety instructions and warnings in chapter 1. Behaviour before, during and after use: Remove all jewellery (including piercings) prior to use. -
Page 28: Navigation / Operation
Operation 1. Audio button 2. Beauty Light button 3. Colour Light button 4. AROMA button 5. Volume button 6. TRACK (music title) button 7. Music source selection / info 4.2.1 Navigation / operation Select with Confirm selection with Select the menu by tapping on it. Tap on or move the slider to adjust the... - Page 29 Operation ‘Confirm’ by tapping. Tap the drop-down list to adjust the default settings. Move the switch to adjust the default settings. Tap the pictograms to save or cancel the preselection. 06/2021 1026902-00 Operating instructions – 27/52...
-
Page 30: Wellness Functions
Operation WELLNESS functions NOTE The WELLNESS function can only be selected if a massage programme has been selected. Selection Description/display Information picto- grams AUDIO Volume: Levels 0–20 Title selection: Audio Back Audio Pause/Play (only with internal music selection) Audio Forward Audio source: Selection Bluetooth®... - Page 31 Operation Selection Description/display Information picto- grams BEAUTY Beauty Light Tapping the screen reduc- LIGHT es the intensity to a mini- Beauty Light ON mum. Beauty Light OFF Adjust intensity, levels 1, 2, 3 COLOUR Selection of Colour Light: Colour Light ON Tapping the screen re- LIGHT duces the intensity to a...
-
Page 32: Start
Operation Selection Description/display Information picto- grams AROMA Aroma Aroma ON Aroma OFF Intensity Levels 1–3 NOTE! BEAUTY LIGHT – WHAT IS IT? This special treatment light increases your body’s production of collagen and looks after your skin. Fine lines are reduced, the skin becomes visibly firmer and the overall appearance of your skin improves through regular use. -
Page 33: Coupling With Bluetooth® Devices
MP3 player is only possible via Bluetooth® Connect. With Bluetooth® Con- nect the user can transfer their favourite music to the wellsystem SPA wire- lessly (e.g.) from their smartphone. Operation takes place comfortably via the touch display of the wellsystem during the massage. - Page 34 Press the Bluetooth® symbol SCAN (search for units is started.) NOTE: The wellsystem SPA can store a maximum of ten coupled Bluetooth® units. In the case of recoupling, the wellsystem SPA must first be deleted from the Bluetooth® unit. The activation process must then be repeated.
-
Page 35: Cleaning And Maintenance
Cleaning and maintenance Cleaning and maintenance Safety instructions for maintenance DANGER! Electricity is present throughout the entire unit! Danger to persons due to electric shock and risk of burns. – Before starting work, unplug the massage unit from the mains or disconnect all live cables. –... -
Page 36: Cleaning
Cleaning and maintenance Cleaning DANGER! Infections can be spread by skin contact! All objects/unit parts which may come into contact with the user during use must be disinfected after every use: – Control panel – Canopy 5.2.1 Disinfektion We recommend the following cleaning agents for rapid and thorough disinfec- tion: mikrozid sensitive fast disinfectant cleaner... -
Page 37: Cleaning The Surfaces
Cleaning and maintenance INSTRUCTIONS: To ensure thorough disinfection, always adhere to the contact time specified for the disinfectant. Follow the manufacturer’s instructions for use. After the prescribed contact time, remove any remaining residues of the cleaning/disinfecting agents. For this, use disposable paper tissues. -
Page 38: Cleaning Plan
Cleaning and maintenance Cleaning plan Component Interval Activity page Control element Clean and disinfect Surfaces X Clean NOTE! Only use the wipe cleaning/disinfection method on the control unit and the ‘AROMA outlet’. Do not spray! 36/52... -
Page 39: Maintenance Performed By The Customer Service Department
Cleaning and maintenance Maintenance performed by the Customer Service department Maintenance performed by authorized, trained and qualified staff WARNING! Danger to people from maintenance work that has not been carried out! If maintenance work is not carried out, it can lead to material damage or personal injuries! –... -
Page 40: Maintenance Plan
Cleaning and maintenance Maintenance plan WARNING! Only use genuine spare parts of the same type! If other parts are used then the device no longer complies with the conformity declaration and may not be operated any longer! Any liability for damage or injury proven to be the result of the use of non-genuine spare parts is excluded. -
Page 41: Changing Aroma Canister
Cleaning and maintenance Changing AROMA canister DANGER! Customer health hazard! AROMA substances which are not original products or are utilized incorrectly may cause inflammation of the respiratory tract! – Do not fill the AROMA canister with any other sub- stance. –... - Page 42 Cleaning and maintenance – Remove the lid of the canister and then place the open canister in the unit. – Replace and close the cover. – Tighten the screws. Other fragrances are also available. For further details contact JK-International GmbH, Division JK-Licht Köhlershohner Straße 60 53578 Windhagen...
-
Page 43: Technical Data
Technical data Technical data Power, connection rating and weight wellsystem SPA COMPLETE Power consumption rating: 150 W Rated frequency: 50/60 Hz Rated voltage: 230 V ~ Connection type:: Connection via massage unit Rated fuses: 10 A Noise level 1m away from device: <... -
Page 44: Dimensions
Technical data Dimensions A1 = 70 mm A2 = 70 mm BK = 2,450 mm TK = 1,900 mm L = 802 mm B = 955 mm H = 612 mm 42/52... -
Page 45: Spare Parts And Accessories
Technical data Spare parts and accessories Number Description Order-no. AROMA, 10 ml WATER 1019118-.. SD card (music) 1501487-.. Gas pressure spring 1512240-.. Scent card 1513010-.. 06/2021 1026902-00 Operating instructions – 43/52... -
Page 46: Pre-Configuring The Settings
Technical data Pre-configuring the settings 6.4.1 Unit settings (Setup Manager) NOTE! The Setup Manager can only be called up when the unit is in standby/hibernation mode. Tapping automatically switches the unit into hibernation mode and the currently set values are stored. 1. - Page 47 Technical data Navigation / operation Select by tapping. Select with Confirm the selection with ‘Confirm’ by tapping Selecting or slide the slider to adjust the default settings. Tap the drop-down list to adjust the default settings. 06/2021 1026902-00 Operating instructions – 45/52...
- Page 48 Technical data Tap to return to the start screen. Opening Setup Manager – Press on the icon to open the Setup Manager. – Enter the PIN code by tapping the numbers. – Confirm with NOTE! The Setup Manager can only be called up when the unit is in standby/hibernation mode.
- Page 49 Technical data NOTE! We recommend that you set a new master code when starting up the device for the first time in order to prevent unauthorized access to the pre-setting mode. Please make a note of the code for customer service. Changing the code –...
- Page 50 Technical data Operation of the Setup Manager The description of the function is displayed by tapping on the desired function for at least 2 seconds. Tap on to return to the Setup Manager display. 48/52...
-
Page 51: Appendix
7.1.1 Table 201: Guidelines and manufacturer's declaration – Electromagnetic emissions The wellsystem SPA COMPLETE massage device has been designed for use in the electromagnetic environment specified below. The device operator must ensure that it is used such an environment. Emission measurements Conformity Electromagnetic environment –... -
Page 52: Index
Index Index Accessories ......................43 Acrylic glass (care) ..................... 35 Aroma ........................25 Assembly ......................10 Audio ........................25 AUX (music) ......................14 Beauty Light ......................25 Bluetooth® ......................31 Care ........................34 Changing AROMA canister ................39 Cleaning ....................... 33, 34 Cleaning intervals .................... - Page 53 Index Foreseeable misuse .....................8 Instructions ......................8 Intended use ......................8 Maintenance ....................33, 37 Maintenance overview ..................38 Maintenance work Customer Service department ..............37 Master code ....................... 46 Music source ...................... 25 Operating altitude ....................11 Operating overview .................... 25 Operator's obligations ...................9 Order numbers ....................
- Page 54 Index Safety ......................8, 11 Safety equipment ....................16 Safety instructions Device-specific safety instructions ..............9 General safety instructions................9 Scope of delivery ..................10, 23 Setup ........................10 Setup location ..................... 11 Size ........................42 Spare parts......................38 Order numbers ....................43 Starting the tanning ....................
- Page 56 JK-International GmbH Köhlershohner Straße 60 53578 Windhagen GERMANY Tel.: +49 (0) 22 24 / 818-257 Fax: +49 (0) 22 24 / 818-254 E-Mail: contact@wellsystem.com...
