WWW.SMITTYBILT.COM
Parts Included
Nutsert Tool & Case
Mandrel Tool
Mandrel Lock Pin
M6-1.0 Mandrel
M8-1.25 Mandrel
Read instructions entirely
before using this part.
Step 1: Insert mandrel into stem (Fig A)
Step 2: Insert lock pin into hole so it catches on bearing. Use end of tool to push in if needed (Fig B, C)
(Fig A)
Step 3: Install the mandrels matching nose piece into stem (Fig D)
Step 4: Tighten with included tool (Fig E) you will need to hold the stem while tightening.
For Technical Support/Warranty Information please call 310-762-9944
Installing Mandrel
(Fig D)
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
Installation Instructions

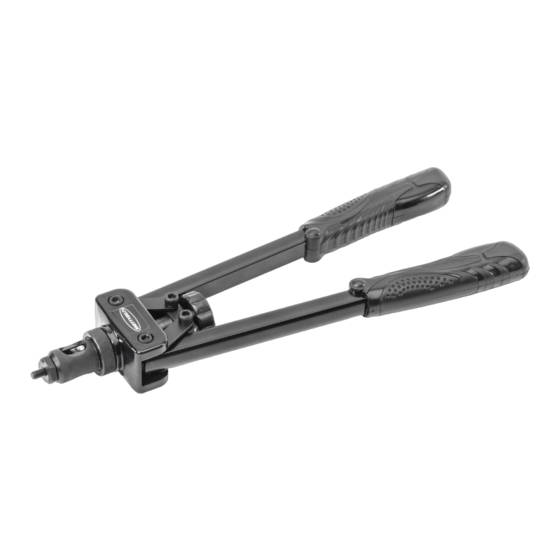

NUTSERT TOOL
Part # 2834
Qty
Parts Included
1
M10-1.50 Mandrel
1
¼-20 Mandrel
2
5/16-18 Mandrel
1
3/8-16 Mandrel
1
(Fig B)
(Fig C)
(Fig E)
Qty
1
1
1
1
Advertisement
Summary of Contents for Smittybilt 2834
- Page 1 Step 3: Install the mandrels matching nose piece into stem (Fig D) Step 4: Tighten with included tool (Fig E) you will need to hold the stem while tightening. (Fig D) (Fig E) For Technical Support/Warranty Information please call 310-762-9944 Smittybilt, 400 West Artesia Blvd, Compton, CA 90220...
- Page 2 Step 4: Pressing tool firmly against nutsert, steadily and evenly squeeze the handles together (D) Only use hand pressure. Excessive force can damage the nutsert and/or tool. NOTE: Excessive side forces can damage or break the mandrel threads. For Technical Support/Warranty Information please call 310-762-9944 Smittybilt, 400 West Artesia Blvd, Compton, CA 90220...
- Page 3 NOTE: It is good practice to check the threads after each install by threading a bolt into nutsert and making sure it threads in easily. (Fig E) (Fig F) For Technical Support/Warranty Information please call 310-762-9944 Smittybilt, 400 West Artesia Blvd, Compton, CA 90220...
- Page 4 Installation Instructions NUTSERT TOOL Part # 2834 WWW.SMITTYBILT.COM (Fig G) (Fig H) Before After For Technical Support/Warranty Information please call 310-762-9944 Smittybilt, 400 West Artesia Blvd, Compton, CA 90220...
- Page 5 Installation Instructions NUTSERT TOOL Part # 2834 WWW.SMITTYBILT.COM For Technical Support/Warranty Information please call 310-762-9944 Smittybilt, 400 West Artesia Blvd, Compton, CA 90220...
-
Page 6: Maintenance
Warning: This product contains a chemical known to the State of California to cause cancer. Warning: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. For Technical Support/Warranty Information please call 310-762-9944 Smittybilt, 400 West Artesia Blvd, Compton, CA 90220...
