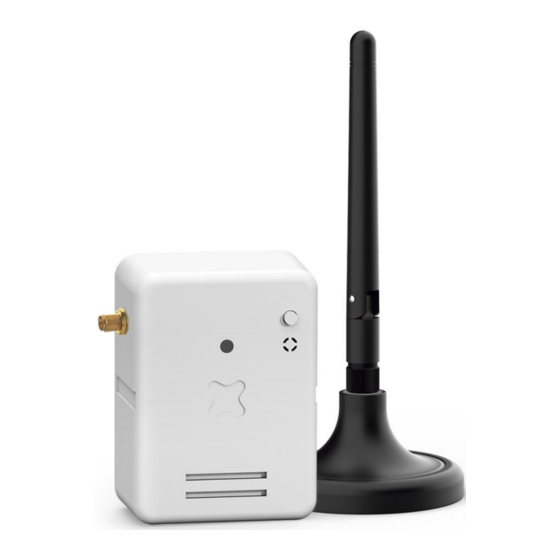

EASY PARKING BASIC
With Easy Parking Basic, the garage door opens automatically when
the vehicle arrives, no need to touch your phone. Available for android
and iOS and compatible with Siri and Google Assistant for voice
opening.
CONTENTS
Installation tools:
Includes:
●
●
1 Actuator device
●
●
1 Antenna
●
●
1 Power supply 24V
●
TECHNICAL SPECIFICATIONS:
• Supply voltage: 18-48 VDC / 24-36 VAC
• Consumption: 360mW
• Maximum relay current: 10A
• Maximum relay voltage: 48V
• Communication technology: Bluetooth
• Maximum emission power:: 20dBm
• Power supply: In:230V, out:24VDC
Wire ferrule connector
1 circular plates and screws
Adhesives
Antenna
Actuator device
QUICK GUIDE
1
Advertisement
Table of Contents
Related Manuals for Baintex Easy Parking Basic
Summary of Contents for Baintex Easy Parking Basic
- Page 1 QUICK GUIDE EASY PARKING BASIC With Easy Parking Basic, the garage door opens automatically when the vehicle arrives, no need to touch your phone. Available for android and iOS and compatible with Siri and Google Assistant for voice opening. CONTENTS...
- Page 2 QUICK GUIDE EASY PARKING BASIC Installation by a professional is recommended. The actuating device must not be wetted or come into direct contact with water. Install it inside the engine control panel. QUICK INSTALLATION GUIDE TERMINAL BLOCK INSTALLATION: Install the actuator device.
