Owner's Manual — FireBird HD308
Designed and built for the rigors of the restoration industry, the Phoenix FireBird HD308 is the safest, most efficient, flexible,
and durable heat system made. The FireBird HD308 uses superior design to maximize heating capacity and minimize your
fuel cost, while its innovative safety features and system flexibility create revenue opportunities unavailable to competing
units.

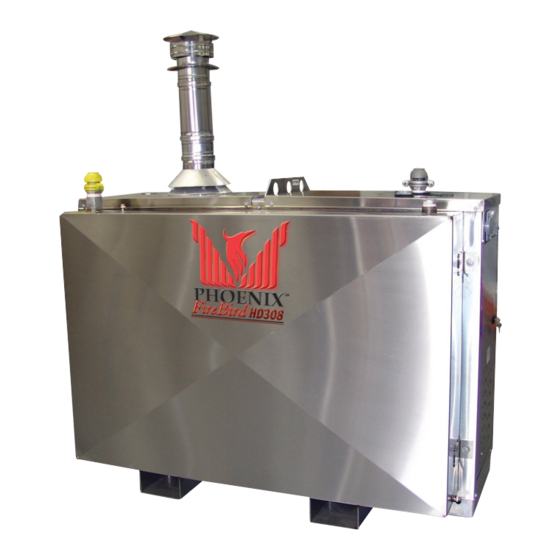

The Phoenix FireBird HD308
• 308,000 BTU Capacity
• Atmospherically-Vented
• Stainless Steel and Aluminum Construction
• Diesel Powered
• Heavy Duty 1 HP Glycol Pump
• 120 Gallon Fuel Tank Capacity
This appliance is equipped with a Blocked-Flue shutoff device. If any
part of the flue-gas passageway in the combustion chamber, exhaust
pipe or rain cap should become blocked or adversely restricted, a
pressure sensing switch (Fig.24 pg.10) will break the electrical control
circuit and not allow the burner to run. There is a "Manual Reset"
button on this switch that will have to be reset before re-firing can
occur. If the burner fails to start after resetting once, call a qualified
service technician to clean the flue passageways and/or replace the
switch. Cleaning instructions can be found in Section (6.1 G) of the
Maintenance section of this manual.
Specifications subject to change without notice.
Toll-Free 1-800-533-7533
4201 Lien Rd. • Madison, WI 53704
Central Hydronic Heater
Installation, Operation & Service Instructions
Read and Save These Instructions
1
www.UsePhoenix.com • sales@UsePhoenix.com
Phoenix FireBird HD308
PN 4031010
TS-643
06/11
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Phoenix FireBird HD308
Summary of Contents for Phoenix FireBird HD308
- Page 1 Read and Save These Instructions Designed and built for the rigors of the restoration industry, the Phoenix FireBird HD308 is the safest, most efficient, flexible, and durable heat system made. The FireBird HD308 uses superior design to maximize heating capacity and minimize your fuel cost, while its innovative safety features and system flexibility create revenue opportunities unavailable to competing units.
-
Page 2: Table Of Contents
1. Specifications Table of Contents Page 1. System Description & Features ......3 Part No. 4031010 1.1 Description ..........3 Fuel Input 308,000 BTU/hr 1.2 Features ............3 Fuel Options Diesel 2. Safety ..............4 Run Time at Full Load 50 Hours 2.1 General Safety Guidelines ......4 Efficiency 2.2 Safety Devices and Clearances ....4 Heat Transfer Fluid... -
Page 3: System Description & Features
Pumping and combustion control are achieved with • Before attempting to setup or operate this equipment, electrical components. The FireBird HD308 requires a it is imperative that the operator reads and 120 volt, 20 amp, 3-wire grounding circuit. understands all the information in this manual. -
Page 4: Safety Devices And Clearances
3.2 Safety Devices and Clearances • The exterior enclosure panels are made of stainless steel. • All safety devices must be in place and functioning • The framework for the enclosure and the base are built properly when the equipment is in operation. of structural aluminum. -
Page 5: Circulation Pump
Burner Specifications 4.5 Electrical Requirements for Complete Operational Mode single stage System Electrical Characteristics V/A/Hz/Ph 120/2.0/60/1 Nozzle 1.65-60°B Supply Voltage Volts Fuel Pump Pressure: factory setting PSI (kilopascals) 180 (1241) Turbulator Head: factory setting Circuit Amperage Amps Air Gate: factory setting Hertz Fuel Input Rate: factory setting USGPH (liters/hr) -
Page 6: Controls & Electrical
HTF circulating pump (Fig. 6). (see pump chart above for details) Burner (Fig. 3). (see burner chart above for details) Volts Rating Amps Rating NEMA Approvals Control Panel and Contents 125VAC Inlet Plug 125VAC 20A-1HP L5-20P UL/CSA Lo-water Cutoff 120VAC 5.8 FLA UL/CSA Hi-limit Switch... -
Page 7: Setup
26: Fuel Oil Pressure to insulate all hose sections located outdoors, Gauge (PSI) Gauge (PSI) between the FireBird HD308 and the exterior building 5. Setup wall. Special “insulating wraps” are available for this purpose. 5.1 Positioning Equipment on the Job Before choosing the location to place the central hydronic heater on a job site, several factors should be considered. -
Page 8: Charging The Fluid System
7. Manifold for Multiple Connections & High Temp. Limit 8. Fancoil Heat Exchanger • The FireBird HD308, all hose and all accessories are 9. Heat Transfer Coil shipped pre-charged with the “approved blend” of 10. Air Moving Fan heat transfer fluid (HTF). The required fluid is a 50% 11. -
Page 9: Oil Burner Installation & Setup
A few seconds later, the stat light will come on and the burner fan will purge the combustion • Specific burner settings for the FireBird HD308 are as chamber for a few seconds. follows. The burner should light following the pre-purge. If... -
Page 10: Maintenance
The high temperature limit switch is located in plain view 13.0% CO2 and a smoke spot reading of zero. Final at the same end of the FireBird HD308 as the circulating readings must be taken with all service-access doors pump and is identified with a label. - Page 11 Improper burner settings or maintenance At the circulation pump end of the FireBird HD308 could cause soot accumulation in the combustion cabinet, louvers are stamped into the access door to chamber.
-
Page 12: Maintenance Frequency Chart
7.1 Fault Determination b. Are the circuit breakers (Fig. 16) still turned on? The FireBird HD308 is equipped with a group of LED c. Verify external power supply (120V) to inlet plug “indicator lights”. The purpose of these lights is to aid in (Fig. -
Page 13: Burner Internal Faults
#2 Glycol Level Light, (plus #1) are ON indicates. a. Check the chimney pipe and rain cap for blockage. A. LWCO switch (Fig. 21) is sensing sufficient glycol in b. Check the air tube connection to the pressure the reservoir and power is going through the switch. switch and clean if necessary. -
Page 14: Electrical Schematics
B. The burner goes to lockout after the prepurge period because the flame does not ignite. a. No fuel in tank or lines. b. Air has not been fully bled from the fuel lines. c. The fuel filter is dirty. Replace filter. d. - Page 15 Toll-Free 1-800-533-7533 www.UsePhoenix.com • sales@UsePhoenix.com...
- Page 16 Burner Wiring: Line Voltage: Sub-base Wiring: Toll-Free 1-800-533-7533 www.UsePhoenix.com • sales@UsePhoenix.com...
- Page 17 4030304 Burner Nozzle 4030551 Burner Assembly 4030272 Igniter 4030302 5 Options and Accessories 4029790 Phoenix TX 80 Fan Coil 4030700 Manifold Kit (2 ea.) 4030153 3/4” x 50’ Hose 4030417 3/4” x 25’ Hose 4030418 3/4” x 15’ Hose 4030154 1”...
-
Page 18: Warranty
(but all warranty periods will be extended by the period of time, if any, that the Phoenix FireBird HD308 Desiccant Dehumidifier is out of service while awaiting covered warranty service).
