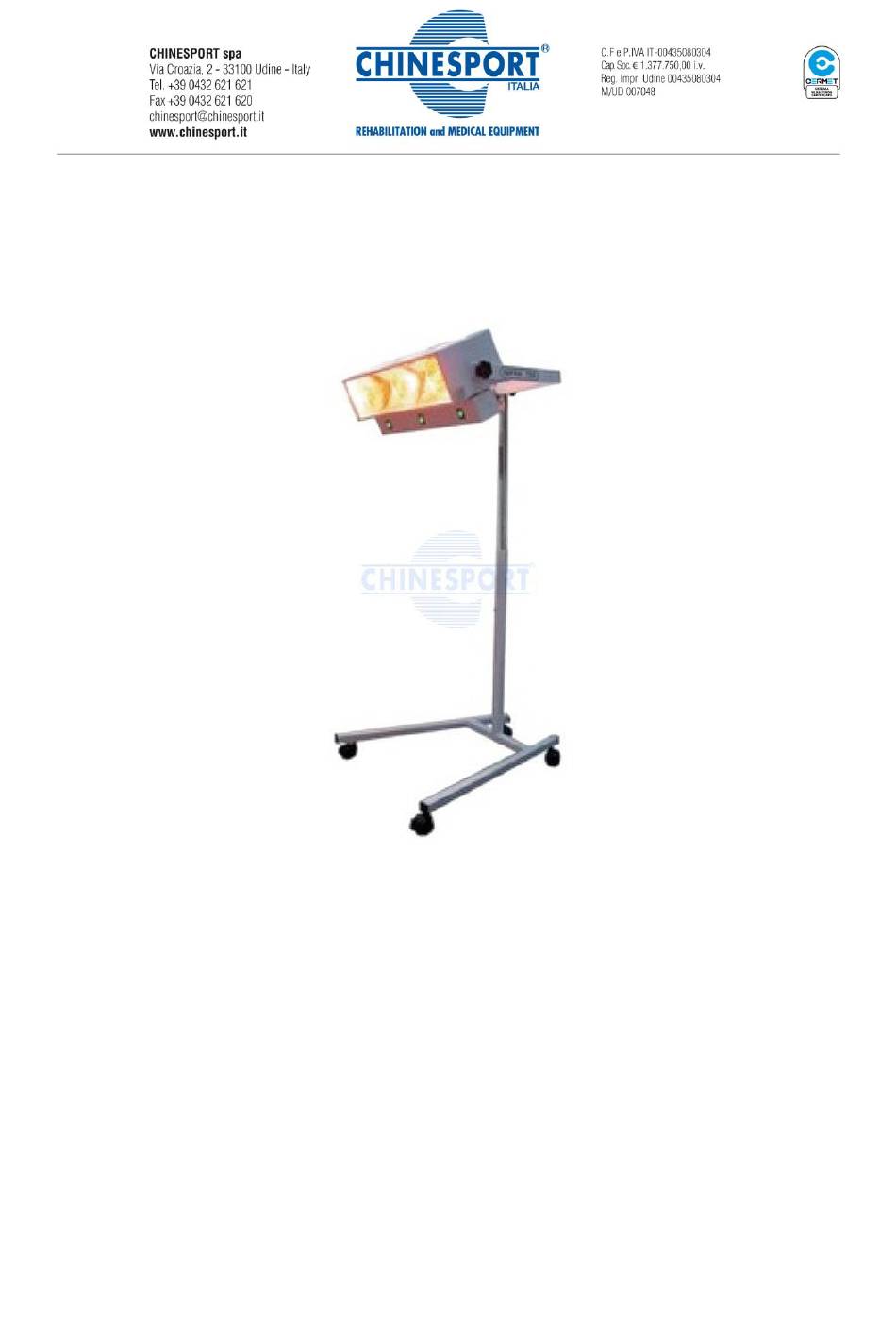

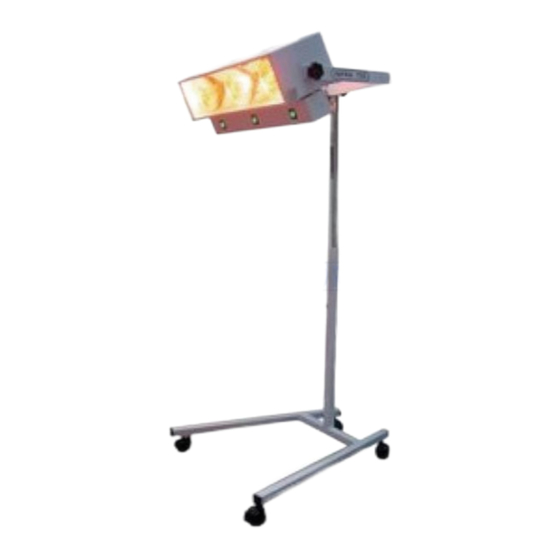

- Page 1 EL0157 Item code: INFRA LAMP 750 Infrared therapy floor lamp User and Maintenance Manual Rev. 01 of 08/08/2013_CP Page 1 of 15...
-
Page 2: Table Of Contents
Table of Contents 1. CLASSIFICATION………………………………………………………………………………………………03 2. INTENDED USE…………………………………………………………………………………………………03 3. TECHNICAL DATA………………….………………………………………………………………………..03 4. ASSEMBLING……………………………………………………………………………………………………04 5. REQUIREMENTS FOR THE USER……………………………………………………………………..05 6. USE OF EYE PROTECTION………………………….……………………………………………………..06 7. IGNITION……………………………………….…………………………………………………………………06 8. NOTICES FOR TRANSPORT AND STORAGE……………………………………………………..08 9. MEAN OF THE LABELLING SYMBOLS………………………………………………………………09 10. SERIAL NUMBER CODIFICATION……………………………………………………………………..09 11. -
Page 3: Classification
CLASSIFICATION According to Standard EN60601- 1 : CLASS I TYPE B; According to Directive CEE 93/42 : CLASS II a; IP Protection: : IP 20 WARNING THIS DEVICE IS NOT SUITABLE TO BE USED IN PRESENCE OF ANESTETIC AIR/OXIGEN FLAMMABLE SUBSTANCE INTENDED USE Use in orthopedic field: treatment of arthritis, lumbago, rheumatisms, sprains, and generally where a penetrating heat source is needed. -
Page 4: Assembling
IR IRRADIANCE The model Infra 750 is equipped with three lamps whose filament reaches the colour temperature of 2450 The infrared irradiance peak is in correspondence to the wave lenght of 1200 nm. INFRARED IRRADIATION INTENSITY OF ONE SINGLE LAMP OF 250W: - at 20 cm: 340 mW/cm2 - at 30 cm: 170 mW/cm2 - at 40 cm: 100 mW/cm2... -
Page 5: Requirements For The User
ASSEMBING OF IR EMITTERS WARNING DURING THIS OPERATION THE DEVICE MUST BE DISCONNECTED FROM NETWORK VOLTAGE. 1. Unscrew the two lateral screws of the protection grid; 2. Extract the grid from the left side; 3. Unpack the three IR emitters and screw them on their lamp-sockets; 4. -
Page 6: Use Of Eye Protection
The operator must be aware of: - Instructions and warnings contained in the user manual; - Time, distance and frequency of sessions prescribed by the doctor to the patient. ATTENTION This device cannot be used by people with disabilities in particular blind subjects. The operator must have attention to the following aspects: - Use eye protection;... - Page 7 WARNINGS PLACE THE DEVICE AT LEAST AT ONE METER OF DISTANCE FROM THE WALLS OF THE ROOM. ALL PERSONS WHO ARE IN THE ROOM DURING LIGHTING MUST WEAR PROTECTIONS AGAINST IR RADIATIONS. THE TEMPERATURE IN THE ENVIRONMENT MUSTN’T EXCEED 30°C. Insert the feeder cable socket into the back plug of the lamp.
-
Page 8: Notices For Transport And Storage
ATTENTION Don't sprinkle with any liquid the lighted bulb of the lamp. Don't touch the protective grid and/or the body of the device during its operation and immediately after the switching off because there is danger of burns. PROCEDURE FOR SAFETY TURNING OFF OF THE DEVICE After each use of the device the safety turning off must be done as follows: - If at least one timer is not zeroed, turn the knob counter clockwise and return the arrow to the “O”... -
Page 9: Mean Of The Labelling Symbols
STORAGE CONDITIONS Temperature : -20°C÷60°C Relative humidity : 10÷80% Atmospheric pressure : 500÷1060 h Pa ATTENTION To lift the device in safety conditions it’s necessary to place one hand on the white tube inserted in the base and place the other hand on the upper handle. MEAN OF THE LABELLING SYMBOLS No ionizing radiations;... - Page 10 Infrared rays are indicated for the treatment of osteoarthritis, arthritis, and muscle spasm, sequelae of trauma, pressure sores, etc. Contraindications: acute inflammation, bleeding. The clinician should evaluate the risk/benefit ratio in pregnancy and heart disease. The times and frequency of application, the distance from the device and the global duration of the treatment must be determined by the doctor and may change from person to person.
-
Page 11: Maintenance
USE BY HANDICAP HOLDERS, AGED AND CHILDREN It’s necessary the assistance by an operator who knows the functionning and the dangers of the use of this device. The device mustn’t be utilized by blind operators. WARNINGS KEEP OUT THIS DEVICE FROM CHILDRENS’ REACH. The professional operators must inform the patients about these directions for use in particular with regard to: - Use of eye protection;... -
Page 12: Breakdowns And Repair
2° CASE: Inserting the cable plug into the network socket, the green warning light turns on, but, after having turned both timers and pressed the ON/OFF switches, there isn’t ignition: Of all the three IR emitters: call a an authorized service center or Chinesport for the reparation. - Page 13 IR BULBS REPLACEMENT ATTENTION Even if there isn't a great decrease of the radiation intensity of the IR emitters, it's recommended to replace them after about 4.000 hours of operation. PROCEDURE Be sure to have disconnected the plug from the current socket and that the device is cold. - Remove the protective grid;...
-
Page 14: Useful Life Of The Device
USEFUL LIFE OF THE DEVICE The manufacturer declares that the useful life of the device is 10 years. PRECAUTION IN CASE OF CHANGE OF THE DEVICE PERFORMANCES The emission of the IR emitters decreases during time depending on the hours of lighting and on the number of ON/OFF operation. - Page 15 (see facsimile above), or the transport document/invoice number. This will speed things up and improve service quality. A piece of equipment that requires repairs at Chinesport's facilities must have an "AUTHORIZATION NUMBER" on the shipment packaging. This number must be requested from Technical Support and will speed things up and improve service quality.
