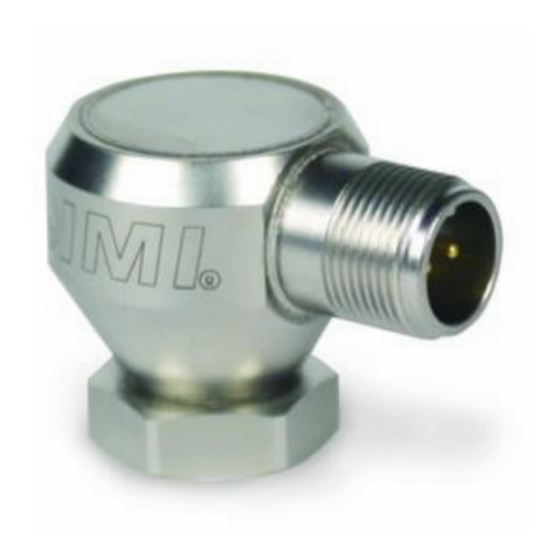

- Page 1 Model M642A01 4-20 mA Output Velocity Sensor Installation and Operating Manual For assistance with the operation of this product, contact PCB Piezotronics, Inc. Toll-free: 800-959-4464 24-hour SensorLine: 716-684-0001 Fax: 716-684-3823 E-mail: imi@pcb.com Web: www.imi-sensors.com...
- Page 2 Repair and Maintenance Returning Equipment If factory repair is required, our representatives will PCB guarantees Total Customer Satisfaction through its provide you with a Return Material Authorization (RMA) “Lifetime Warranty Plus” on all Platinum Stock Products number, which we use to reference any information you sold by PCB and through its limited warranties on all other have already provided and expedite the repair process.
- Page 3 CAUTION Refers to hazards that could damage the instrument. NOTE Indicates tips, recommendations and important information. The notes simplify processes and contain additional information on particular operating steps. The following symbols may be found on the equipment described in this manual: This symbol on the unit indicates that high voltage may be present.
- Page 4 PCB工业监视和测量设备 - 中国RoHS2公布表 PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table 有害物质 镉 汞 铅 (Pb) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 部件名称 (Hg) (Cd) 住房 PCB板 电气连接器 压电晶体 环氧 铁氟龙 电子 厚膜基板 电线 电缆 塑料 焊接...
- Page 5 Component Name Hazardous Substances Lead (Pb) Mercury (Hg) Cadmium (Cd) Chromium VI Polybrominated Polybrominated Compounds Biphenyls (PBB) Diphenyl Ethers (Cr(VI)) (PBDE) Housing PCB Board Electrical Connectors Piezoelectric Crystals Epoxy Teflon Electronics Thick Film Substrate Wires Cables Plastic Solder Copper Alloy/Brass This table is prepared in accordance with the provisions of SJ/T 11364.
- Page 6 Model 642/643/647/648 A Series Industrial 4-20mA Sensor Operating Guide with Enclosed Warranty Information 3425 Walden Avenue, Depew, New York 14043-2495 Phone (716) 684-0003 Fax (716) 684-3823 Toll Free Line 1-800-959-4IMI MANUAL NUMBER: 25778 MANUAL REVISION: C ECN NUMBER: xxxxx...
-
Page 7: Table Of Contents
Table of Contents Introduction ........................Page 3 General Features Dimension Drawing......................Page 4 Operation and Wiring....................... Page 5 Standard Wiring Taking Measurements RV Option TO Option Installation........................Page 9 ESD Sensitivity ......................Page 10 Warranty/Servicing Warranty, Service & Return Procedure................Page 11 Customer Service ...................... -
Page 8: Introduction
Introduction The Model 642/643/647/648 A Series Industrial 4-20mA Sensors combine the capabilities of a piezoelectric vibration sensor and a 4-20mA vibration transmitter. The sensor outputs a 4-20mA signal that is proportional to the overall velocity or acceleration of the machinery. Ideal for monitoring the vibration of process equipment such as fans, motors and pumps, the output of the sensor is used for process control or predictive maintenance. -
Page 9: Dimension Drawing
Dimension Drawing 1.24 [ 31.5] ELECTRICAL CONNECTOR 5/8-24 UNEF-2A 2 - PIN (MIL-C-5015) 1.98[45.7] PIN A: PIN B: POSITIVE NEGATIVE 4-20 mA 4-20 mA 1.41 [35.8] 1.05 [26.7] 7/8 (22) HEX 3/4-16 UNF-2A 1/8" HEX ALLEN KEY REQUIRED MOUNTING STUD MODEL 080A162 1/4-28 UNF-2A (SUPPLIED) -
Page 10: Operation And Wiring
Operation and Wiring Standard Wiring The Model 642/643/647/648 A Series operates from a standard 2-wire, 4-20mA loop. If using a loop powered unit, attach the positive (+) input from the power supply to Pin A or Red wire on the sensor and the negative (-) input from the power supply to Pin B or Blue wire of the sensor. -
Page 11: Taking Measurements
Taking Measurements When measuring the current output from the unit, use the following formula to calculate the vibration level: Vibration Output = (Measured Output – 4mA) x (Full Scale Vibration Output /16mA) Measured mA 642AX0 642AX1 642AX2 4.00 0.0 ips, pk 0.0 ips, pk 0.0 ips, pk 8.00... -
Page 12: Rv Option
RV Option The RV (raw vibration) option includes a 100mV/g ±20% additional output. The accelerometer frequency range is 1 Hz-10 kHz, maximum amplitude of 15 g-pk. Data collectors or analyzers can use this vibration signal for further analysis. Figure 3 – RV wiring For integral cable sensors: 4-20mA Positive BLACK... -
Page 13: To Option
TO Option The TO (Temperature Output) option includes an additional independent 4-20mA output for temperature measurement. The temperature range is from -40°C to 125°C with an overall accuracy of ±5%FSO. The imbedded temperature sensor monitors the environment internal to the sensor housing and is situated at approximately mid level. -
Page 14: Installation
Installation Installation should be performed per the following detail drawing for best performance. PAGE 9... -
Page 15: Esd Sensitivity
Warning 1 – ESD sensitivity The power supply/signal conditioner should not be opened by anyone other than qualified service personnel. This product is intended for use by qualified personnel who recognize shock hazards and are familiar with the safety precautions required to avoid injury. Warning 2 –... -
Page 16: Warranty, Service & Return Procedure
Warranty IMI instrumentation is warranted against defective material and workmanship for 1 year unless otherwise expressly specified. Damage to instruments caused by incorrect power or misapplication, is not covered by warranty. If there are any questions regarding power, intended application, or general usage, please consult with your local sales contact or distributor. -
Page 17: Customer Service
Customer Service IMI, a division of PCB Piezotronics, guarantees Total Customer Satisfaction. If, at any time, for any reason, you are not completely satisfied with any IMI product, IMI will repair, replace, or exchange it at no charge. You may also choose to have your purchase price refunded. - Page 18 Model Number Revision: F 4-20 MA OUTPUT VELOCITY SENSOR 642A01 ECN #: 50726 OPTION AL VERSION S Performance EN GLISH Optional versions have identical specifications and accessories as listed for the standard model except Measurement Range 0.0 to 1.0 in/sec pk 0.0 to 25.4 mm/s pk where noted below.
- Page 19 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. ADDED METRIC MOUNTING INFORMATION 43341 METRIC MOUNTING HOLE PREPARATION: ...
