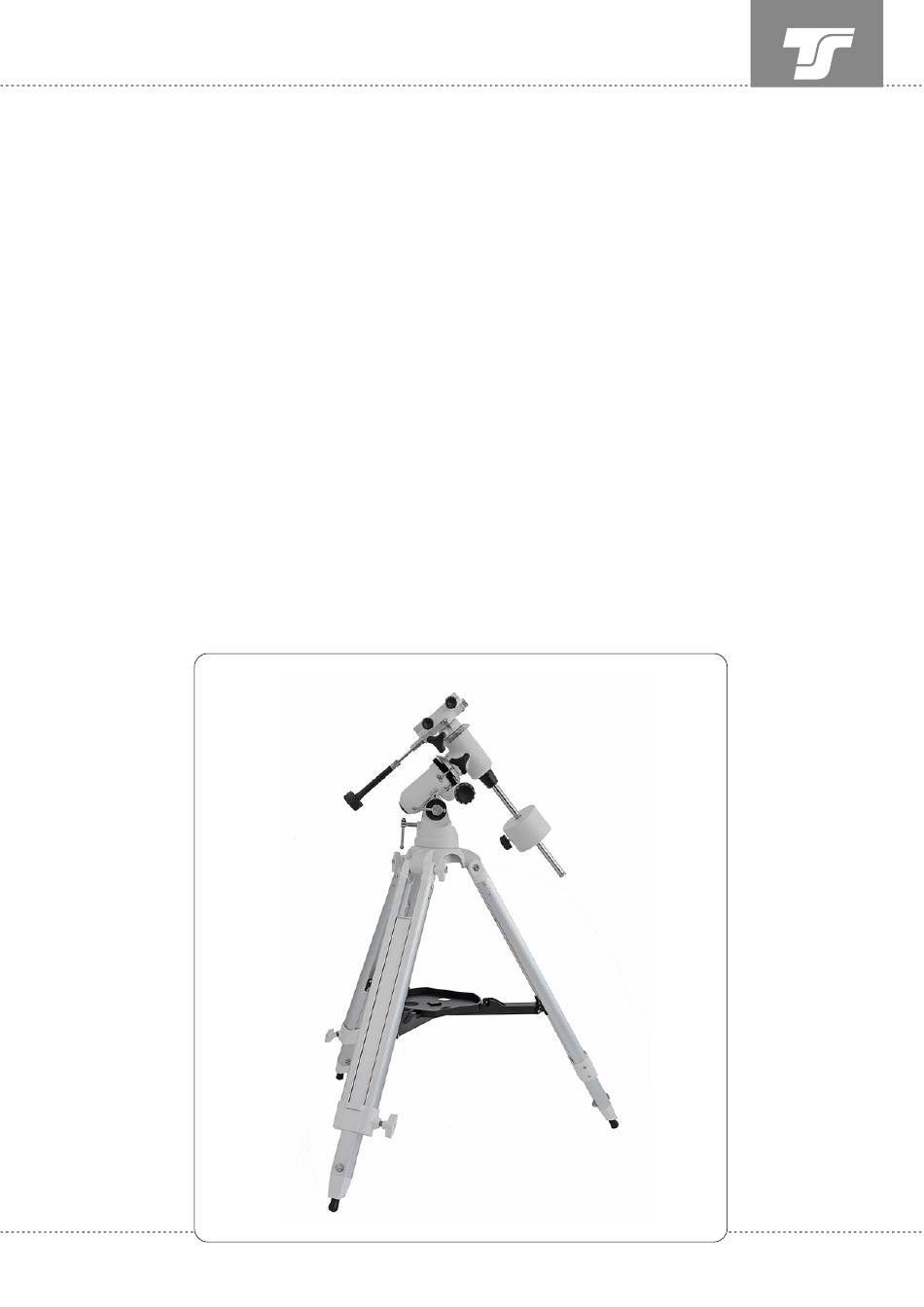

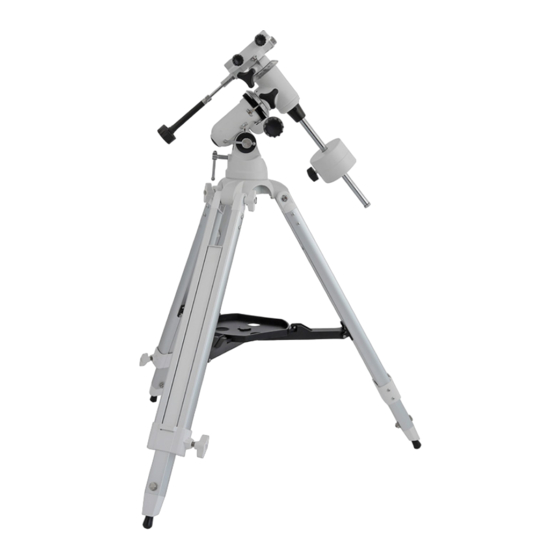

- Page 1 Equatorial mount TSEQ25 User manual Equatorial mount TSEQ25 User manual...
-
Page 2: Table Of Contents
Only use the telescope for the type of ob- must also be covered or equipped with a servation described in these instructions. solar filter. Do not use eyepiece solar filters, as they may crack and cause you to lose your eyesight. Equatorial mount TSEQ25 User manual... -
Page 3: Overview
Clamping of the declination axis d. Clamping of the right ascension axis e. Counterweight f. Clamping pole height adjustment g. Pole height adjustment h. Dovetail clamp for telescope Note: Some images in this manual show a different mount. Equatorial mount TSEQ25 User manual... -
Page 4: Assembling The Tripod
Place the mount head on the tripod, insert the retaining screw from below through the hole in the Tripod Head and tighten the mount head. Hold it in position until the screw is fully tightened. Equatorial mount TSEQ25 User manual... -
Page 5: Attachment Of Counterweight Rod, Counterweight And Shafts
Loosen the clamping screw of each shaft and slide the shaft onto the axis so that the clam- ping screw is on the flattened side of the axis. Equatorial mount TSEQ25 User manual... -
Page 6: Adjusting The Latitude
Loosen the clamp of the upper axis (Dec axis, c), bring the telescope tube into the horizontal position and check whether the tube remains in this position or moves to one side due to an imbalance. Equatorial mount TSEQ25 User manual... - Page 7 It should no longer be possible to move it. Return the tele- scope to the position shown in the first image on this page and clamp the RA axis. Your telescope is now balanced on the mount. Equatorial mount TSEQ25 User manual...
-
Page 8: Polar Alignment
RA axis. telescope to the desired object. Then lock the axes. Now you can fine tune with the two flexible shafts and then use only the RA shaft to track the telescope. Equatorial mount TSEQ25 User manual... -
Page 9: Celestial Coordinates
Thereby „+“ stands for the northern, „-“ star charts exclusively. for the southern hemisphere. The longitude is represented by the right ascension. Celestial North Pole Declination Right ascension Celestial South Pole Equatorial mount TSEQ25 User manual... -
Page 10: Tracking Motor (Sold Separately)
A motor set consisting of a tracking motor and a manual control is available for the TSEQ25. The motor is mounted on the RA axis and does the tracking. Mounting the tracking motor The motor set includes all the parts you need for mounting.
