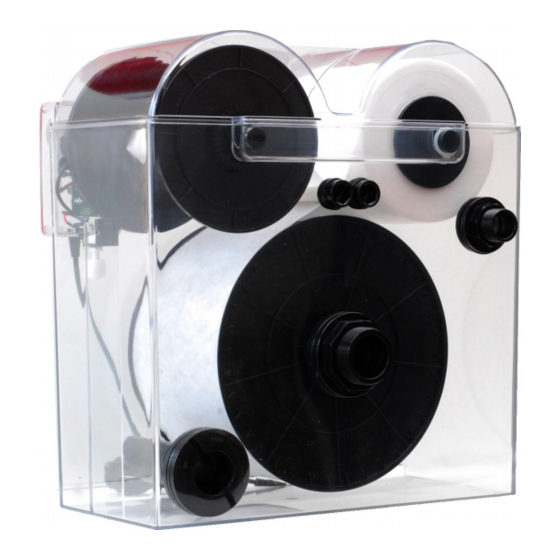

Automatic mechanical filter for fresh and saltwater aquariums and garden ponds
Fresh and saltwater aquariums from 300 to 3000 l volume and garden ponds up to a volume of
5000 l
The Rollermat removes waste particles from the water. Biological filters and protein skimmers
are workload is eased and the result is crystal clear water.
Operation Manual
ROLLERMAT
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Theiling TH-305110017
Summary of Contents for Theiling TH-305110017
- Page 1 Operation Manual ROLLERMAT Automatic mechanical filter for fresh and saltwater aquariums and garden ponds Fresh and saltwater aquariums from 300 to 3000 l volume and garden ponds up to a volume of 5000 l The Rollermat removes waste particles from the water. Biological filters and protein skimmers are workload is eased and the result is crystal clear water.
- Page 2 1. Construction 1. Filter 2. Lid 3. Water inlet 4. Water outlet 5. Overflow 6. Filter Drum 7. New Fleece Roll 8. Dirty Fleece Roll 9. Directing Rolls 10. Level Switch 2. Working principle Water with waste particles passes through the filter fleece and enters into the central drum. From here it flows back into the filter sump.
- Page 3 3. Features of the Rollermat: Efficient mechanical filtration by fine filter fleece Automatic transport of the fleece. The rolls are easy to change, up to 100 m length. The roll is 15 cm wide, for flow rates up to 2700l/h, depending on the water quality. ...
- Page 4 4. Warning When initially installing, the Rollermat will slowly increase the internal volume until filled to the normal operating level – this will require approximately 20 litres of water. Please make sure you have enough water to add to your aquarium/pond to replace this water (not ATO water! - disable any ATO device until the Rollermat is filled to the bottom of the float switch.
- Page 5 Water outlet The water outlet may not be reduced. A 40 mm PVC pipe should be presses into the tank union. From here a PVC pipe can be directed to the filter sump or pond. The pipe should not be glued into the tank union. If it is glued, the Rollermat cannot not be disassembled.
- Page 6 Should any defect in material or workmanship be found within 12 months of the date of purchase, Theiling GmbH undertakes to repair or, at our option, replace the defective part free of charge – always provided the product has been installed correctly, is used for the purpose that was intended by us, is used in accordance with the operating instructions and is returned to us carriage paid.
- Page 7 3051100203 Square ring 3051100201 Circuit plate 3051100204 washer 3051100202 Connection cable 3051100205 Tank Union 25 mm (overflow) 3051100177 Transformer 3051100206 Tank Union (40mm) for inlet and outlet Theiling GmbH, Maschweg 49, D-49324 Melle - 10/2016 - Technical changes reserved –...
