EQStarPro User Guide
www.astro-gadget.com
EQStarPro User Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EQStarPro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Astro-Gadget EQStarPro

Summary of Contents for Astro-Gadget EQStarPro

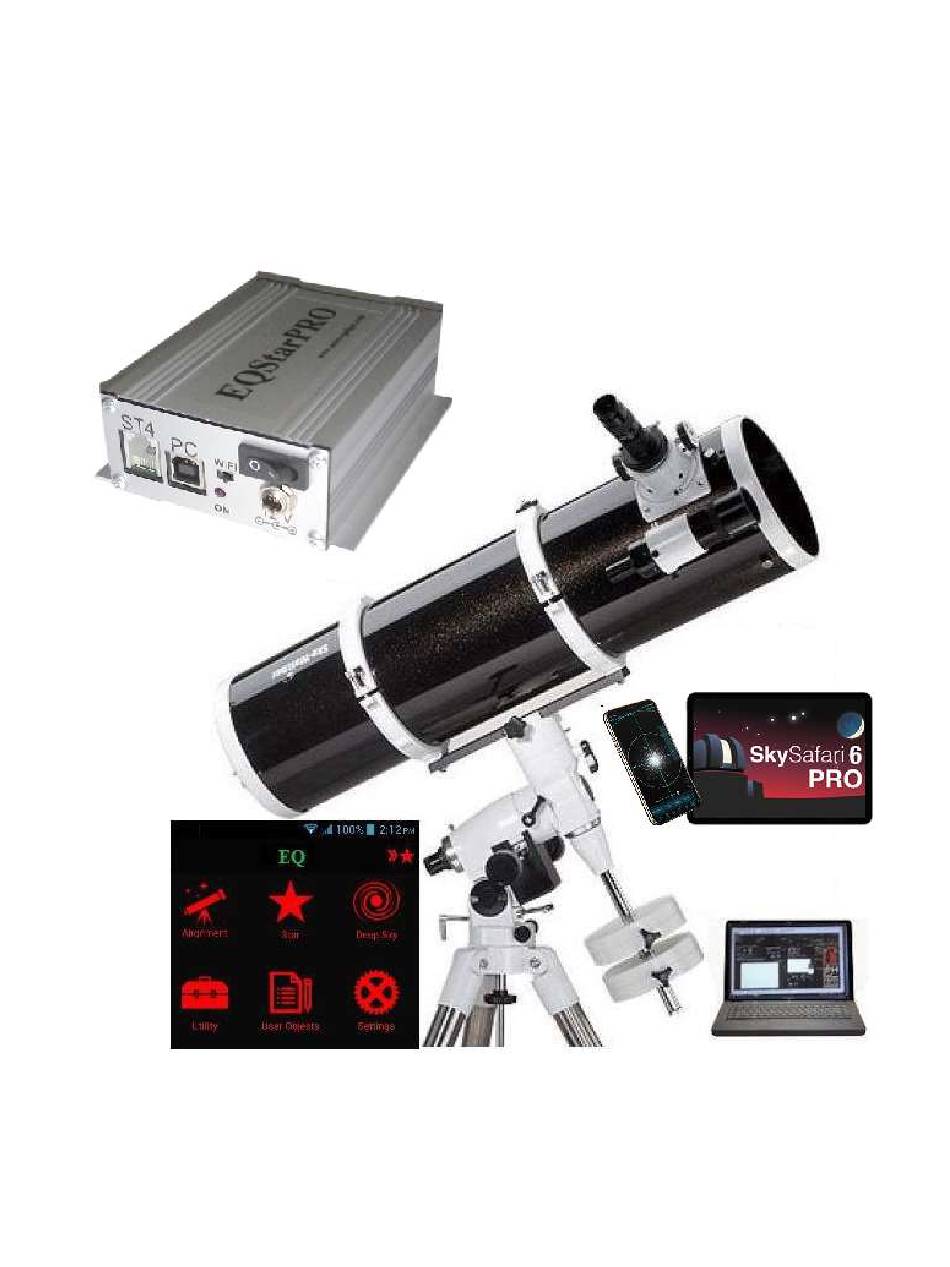

  • Page 1 EQStarPro User Guide www.astro-gadget.com EQStarPro User Guide...

  • Page 2: Table Of Contents

    PC Software Installation ........................6 PC control ............................8 Control with Mobile Cell Phone or Tablet..................10 EQStarPro control via ZWO ASIAir Pro .................... 14 EQStarPro control via a Linux Controller ..................15 Stand-alone mount control with push-button joystick..............16...

  • Page 3: Overview

    PC or laptop. In the EQStarPRO kit is a universal mount a joystick for manual control as well. It also allows you to control mount autonomously without a computer, smartphone or tablet.
  • Page 4 EQStarPro User Guide www.astro-gadget.com  ST4: ST4 hand controller or guiding input.  PC: COM port over USB interface for PCs.  Wifi: Wifi enable switch  Wifi On LED  Power on/off switch  Power input: 5.5mm outer, 2.1mm inner power connector. (accepts center 2.1mm male plus pin and 5.5mm outer ground sleeve)

  • Page 5: Hardware Installation

    EQStarPro User Guide www.astro-gadget.com 2. Hardware Installation 2.1. Install the drive motors on the mount axes as shown in the following pictures.

  • Page 6: Pc Software Installation

    ‘CP210xVCPinstaller_x64.exe’. This installs a Silicon Labs CP210x USB UART driver. After you install the driver, when you connect the EQStarPro via the supplied USB cable, the driver will show up as managing the virtual COM port in the Windows Device Manager (start that by typing ‘Device Manager’...
  • Page 7 3.5. Connect the control unit to 12V power via a user-supplied cable with a 5.5mm x 2.1mm power plug. After the power switch on the EQStarPro is turned on, the unit will sound 1 short, then 3 short and 1 long beep that indicates the EQStarPro is ready.

  • Page 8: Pc Control

    To correct this, EQStarPro supports two automatic guiding approaches: automatic guidance using the ST-4 port on the EQStarPro, or pulse guiding using the ASCOM interface. Both modes are set from the EQMOD application panel. Pulse guiding does not require cables in addition to the USB cable connecting EQStarPro to the PC.
  • Page 9 The ST-4 port on the EQStarPro can also be used with an external guider like the Skywatcher standalone SynScan guider. To get the EQStarPro to accept guiding via the ST-4 port, connect the joystick remote and press and hold the mode button (side of joystick box) for 5 seconds. EQStarPro will respond with a long beep.

  • Page 10: Control With Mobile Cell Phone Or Tablet

    5.3. Turn on WiFi and EQStarPro Turn WiFi mode via the switch on the front panel of the unit and turn on the EQStarPro power. After power on you will hear a beep, indicating the EQStarPRO mount is ready for control, and the WiFi mode indicator LED will be lit.
  • Page 11 5.7. EQStarPro WiFi Settings Configuration via SynScan Pro By default, the EQStarPRO operates in Access Point mode, with an SSID of EQStarPro and no WiFi security password. The Settings -> Wifi Settings form in SynScan Pro can be used to set a password for better security.
  • Page 12 5.8.1. SkySafari Scope Settings Form 5.8.2. SkySafari Goto Operation Once the connection is made to the EQStarPro via the SynScan Pro application, SkySafari can be used to select an object and request telescope Goto to point at that object. Once slewing stops, the requested object should be in view through the telescope.
  • Page 13 SynScan Pro to correct the pointing accuracy near this object. 5.9. iOS Devices and EQStarPro iOS devices also can control EQStarPro via SynScanPro and SkySafari Pro downloaded from the Apple App Store. For SkySafari Pro to work on iOS devices, you will need to install an application called “SynScanLink”.

  • Page 14: Eqstarpro Control Via Zwo Asiair Pro

    For WiFi connections, the EQStarPro must be started with WiFi turned on. Slide the Wifi slider switch on the EQStarPro to the right. If the EQStarPro is powered via the ASIAir Pro, turn both on at the same time. The EQStarPro should beep 3 times and the WiFi indicator LED should be lit.

  • Page 15: Eqstarpro Control Via A Linux Controller

    7.2. Linux Control via KStars/EQMOD 7.2.1. When the EQStarPro USB cable is plugged into the Linux controller, it shows up as /dev/ttyusb0 (or similar). The ‘lsusb’ command should list it. 7.2.2. KStars has a device manager where the indi_eqmod_telescope device can be added pointing to this ttyusb0.

  • Page 16: Stand-Alone Mount Control With Push-Button Joystick

    8.1. Connect a push button joystick to port ST4. 8.2. After turning on the power to the EQStarPro, the device will emit 1 short, then 3 short and 1 long beeps. This means the EQStarPRO is ready to go and the mount will automatically start tracking at stellar speed.

  • Page 17: Additional Tips

    EQStarPro. The required cable is available from several vendors on Amazon. 9.2. The LED on the front of the EQStarPro is not a power indicator. It is a WiFi indicator that should be lit when WiFi is enabled via the WiFi switch on the front of the EQStarPro.
