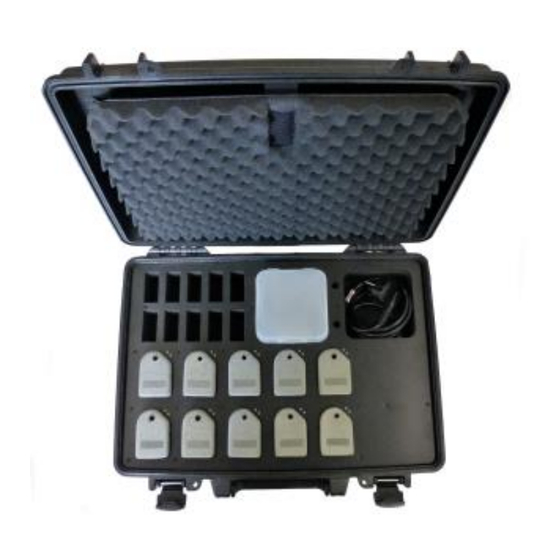

PiCUS Tree Motion Sensor 3
This manual has been created for the PTMS 3 device system with the following component
versions:
TMS 3 Hardware Version:
TMS 3 Firmware Version:
TMS 3 App Version:
TMS PC Program Version:
Manual version:
Application manual
3.5.0002
1.1.0006
2.0
3.1.1.1
20.09.2021
argus electronic gmbh
Erich-Schlesinger-Straße 49d
www.argus-electronic.de
email:
service@argus-electronic.de
Tel.: +49 (0) 381 – 4968144-0
18059 Rostock
Germany

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PiCUS TMS 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Argus PiCUS TMS 3

  • Page 1 TMS 3 Hardware Version: 3.5.0002 TMS 3 Firmware Version: 1.1.0006 TMS 3 App Version: TMS PC Program Version: 3.1.1.1 Manual version: 20.09.2021 argus electronic gmbh Erich-Schlesinger-Straße 49d 18059 Rostock Germany www.argus-electronic.de email: service@argus-electronic.de Tel.: +49 (0) 381 – 4968144-0...

  • Page 2: Table Of Contents

    PiCUS TMS 3 mounting instructions ..................15 Installation of base sensors ....................15 Installation of control sensors ....................15 Copying PiCUS TMS 3 measurement data onto a PC ............16 Charging PiCUS TMS 3 ......................17 Battery care ..........................17 Technical data .........................

  • Page 3: Abbreviations And Conventions

    PC software will be used. Disclaimer The application of the PiCUS TMS 3 on other objects, can cause damages to both the sensor and the measured object. The measurement results obtained with the PiCUS TMS 3 require interpretation by a trained professional.

  • Page 4: First Time Operation

    The TMS 3 App realises communication with the PiCUS TMS 3, while they are not placed in their charging cradles. The main function of the TMS 3 App is the configuration of the PiCUS TMS 3 and starting or stopping of measurements.

  • Page 5: Tracking Capabilities

    This synchronises all PiCUS TMS 3 measurement data. If no GPS is available, the system time of the mobile phone is transferred to the PiCUS TMS 3 when starting or stopping a measurement.

  • Page 6: Performing Measurements With Picus Tms 3

    After the display refreshes all found PiCUS TMS 3 will be displayed in a sensor-box and then sorted in a device list. The PiCUS TMS 3 device name and additional information will be displayed.
  • Page 7 The PiCUS TMS 3 automatically deactivates Bluetooth communication, if no messages were received within the last 2 minutes. If the PiCUS TMS 3 was in standby mode beforehand, it will turn off completely. If it was in measurement mode, it will remain in measurement mode and merely deactivate Bluetooth communication.

  • Page 8: Starting A Measurement

    1. Mount the PiCUS TMS 3 on the tree. Please pay attention to chapter 6 PiCUS TMS 3 mounting instructions. 2. Start the PiCUS TMS 3 with the magnetic key (see 4.1 Activating the PiCUS TMS 3). ATTENTION! Wait for the initialisation time of approx. 5 s.

  • Page 9: Stopping A Measurement

    For stopping a measurement with a PiCUS TMS 3 perform the following steps: 1. Activate BLE in the PiCUS TMS 3 with the magnetic key (a duration of 1 s is sufficient here). ATTENTION! Wait for the initialisation time of the communication of approx.
  • Page 10 PiCUS TMS 3 manual 3. By clicking LIVE MODE VIEW the view changes to the life display. Here, all current measurements of the PiCUS TMS 3 with activated live mode are shown. A sensor in measurement mode and live mode...

  • Page 11: Downloading And Clearing The Picus Tms 3 Memory

    4.4.2 Downloading and clearing the PiCUS TMS 3 memory For every PiCUS TMS 3 in the device list (main view of the TMS 3 App) the remaining free memory is shown. If the memory of a PiCUS TMS 3 is nearly full, it is recommended to clear it before a longer measurement.

  • Page 12: Querying And Deleting The Link Key List

    3. This allows a fast and automated reconnection with these PCs. A maximum number of 8 Bluetooth addresses can be saved. Afterwards, if a new computer is connected with the PiCUS TMS 3 the oldest entry in the list gets overwritten.

  • Page 13: Notes On Bluetooth Communication With Android Devices

    BLE connections. When trying to connect one more sensor with the mobile phone, all previously connected PiCUS TMS 3 are shown simultaneously with all newly found ones. For not connected PiCUS TMS 3 the status line reads...

  • Page 14: Controlling The Maximum Number Of Picus Tms 3

    3 will most likely fail. If the phones capabilities are unknown, this should be tested thoroughly. Set the number of simultaneously allowed PiCUS TMS 3 to its maximum value of 7. Then switch on 7 PiCUS TMS 3 and click REFRESH. If the mobile phone is capable of handling that number of device all PiCUS TMS 3 should connect.

  • Page 15: Problems Connecting To Multiple Sensors

    PiCUS TMS 3 mounting instructions Pay attention to the following hints when choosing the mounting position of the PiCUS TMS 3 on the trunk.

  • Page 16: Copying Picus Tms 3 Measurement Data Onto A Pc

    7/8/8.1/10) and a Bluetooth 5.0 interface is required (a Bluetooth 5.0 USB-Dongle is part of the delivery). Additionally, the TMS PC program has to be installed. Choosing which files to download from the PiCUS TMS 3 can be done in the TMS PC program. The download itself is automated.

  • Page 17: Charging Picus Tms 3

    ATTENTION! The red error LED signals that the PiCUS TMS 3 is not being charged. The cause for this is that the PiCUS TMS 3 is either too cold or too hot. When this error occurs the PiCUS TMS 3 can remain in its charge bay. The charging automatically starts once the temperatures have equalized.

  • Page 18: Technical Data

    PiCUS TMS 3 manual Technical data Property Value General characteristics colour grey weight 73 g dimensions 61 mm x 41 mm x 20 mm protection Protected against dust & permanent submerging in water mounting 1 self-tapping, fillister head screw min. lifetime...
  • Page 19 230 V AC, 50 Hz Output power supply 24 V DC, 2,5 A (60 W) Number of TMS chargers Maximum number of TMS max. charging power per charge bay 1,25 W Weight, filled (screws, cable, 10 PiCUS TMS 3) 5,5 kg www.argus-electronic.de...

  • Page 20: Manufacturer

    PiCUS TMS 3 manual Manufacturer argus electronic gmbh Erich-Schlesinger-Straße 49d 18059 Rostock Germany Tel.: +49-381 / 49 68 14 40 email.: info@argus-electronic.de www.argus-electronic.de www.argus-electronic.de...
