Summary of Contents for IriSys SafeCount IWC6254
- Page 1 Display Screen Installation Guide...
- Page 2 DISPLAY SCREEN INSTALLATION GUIDE Display Screens System Overview Display Screen Setup Disclaimer Page 2 IPU 40640 | Version 1 | February 2021...

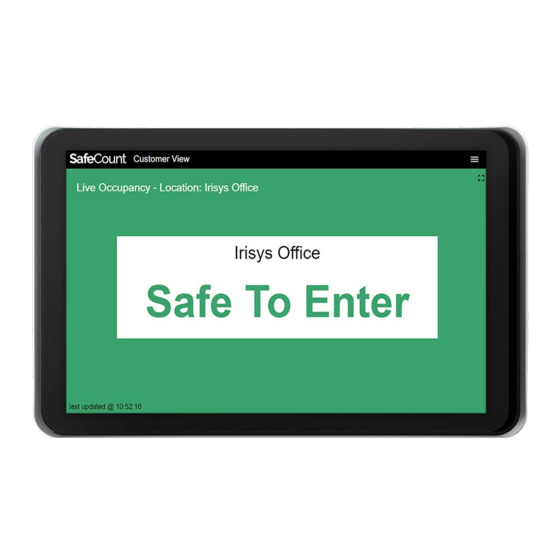

- Page 3 DISPLAY SCREENS This installation guide applies to the following Display Screens 10” Smart all-in-one LCD display (IWC6254) 10” commercial-grade, non-touch smart LCD display. Supports customisable and split screen display messaging. 10” LCD display with lightbars & PoE (IWC6255) 10” commercial-grade, PoE compatible touchscreen LCD display including matching light bars.
- Page 4 SYSTEM OVERVIEW The following diagram shows, in general, how your Display Screen is connected to the rest of your installed SafeCount System. SafeCount Primary Sensor Installed at main entrance MAINS POWER CAT 5/6 (not required for CABLE PoE version) MAINS POWER WIFI SWITCH...
- Page 5 DISPLAY SCREEN SETUP Once you have connected your Display Screen to your SafeCount system and powered the display on, follow these instructions to setup the display the SafeCount dashboards. 1. Check the network connection The IP address of the panel is displayed on the Home screen.
- Page 6 © 2021 InfraRed Integrated Systems Limited (Irisys). No part of this publication may be reproduced without prior permission in writing from Irisys. Whilst Irisys will endeavour to ensure that any data contained in this document is correct, Irisys do not guarantee its accuracy or accept liability for any reliance on it.
