- Page 1 Radlink GPS Tablet User Manual Galileo Positioning System™ 00.09-013 Rev. E – Radlink GPS Tablet User Manual (07/31/2017) Page 1 of 16...
-
Page 2: Table Of Contents

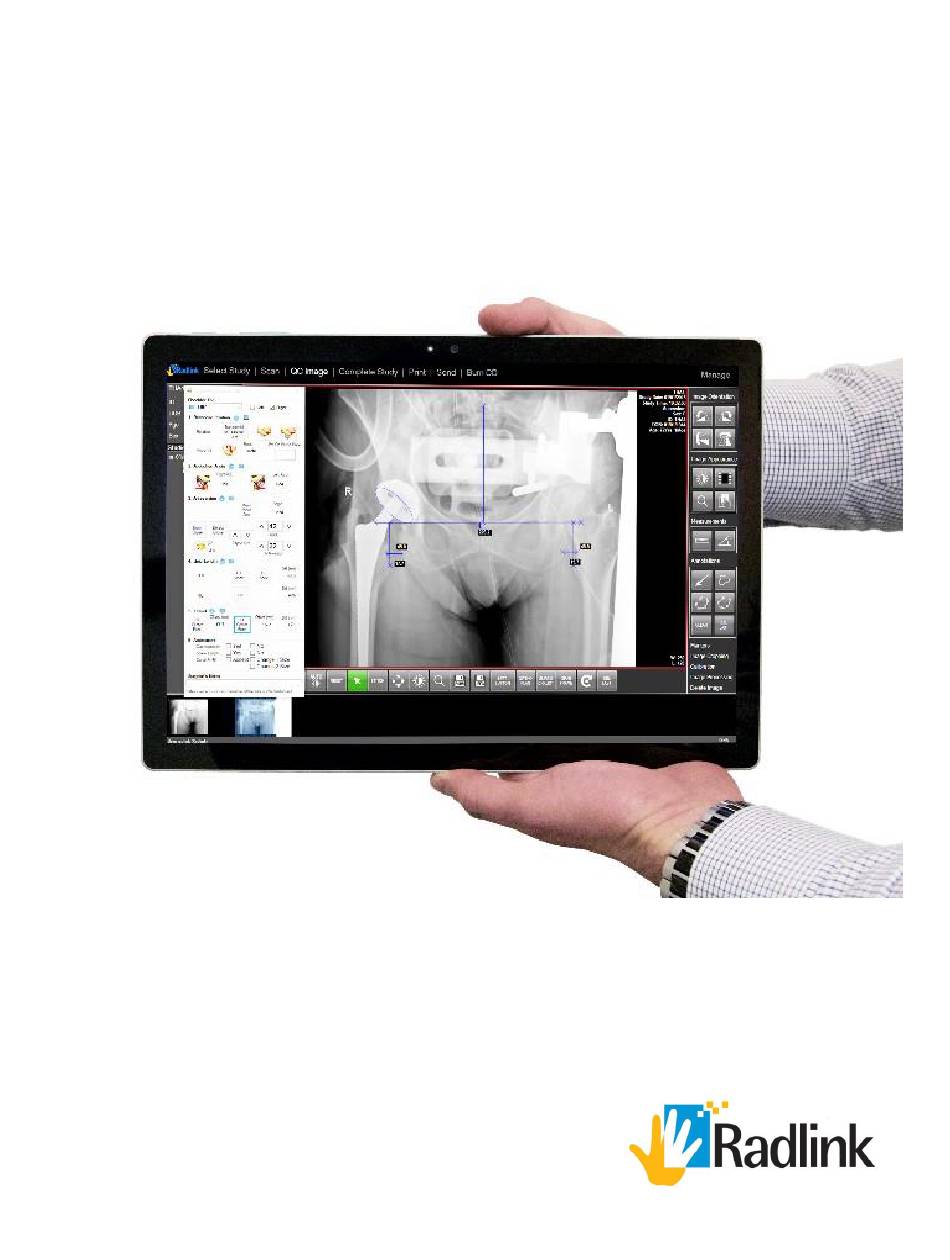

The Radlink GPS Tablet consists of a Tablet PC computer system that uses a touchscreen monitor & other image display accessories. Pre-operative images can be viewed on the GPS Tablet during surgery, which surgeons can use to reference against the intraoperative images captured during the procedure. -
Page 3: Gps Tablet System Overview
Images sent via Images sent via Wireless to GPS Wireless to GPS Tablet Tablet Images sent via Wireless to Hospital PACS Hospital PACS & EMR System 00.09-013 Rev. E – Radlink GPS Tablet User Manual (07/31/2017) Page 3 of 16... -
Page 4: Radlink Gps Tablet Technical Specifications
Radlink GPS Tablet Technical Specifications Basic Information Market name: Radlink GPS Tablet (Galileo Positioning System) Model: Radlink GPS Tablet 2200 (Available in 120V & 230V) Revision Level: Rev. 2.0 Software Revision Level: Purpose: Picture Archival Communication System (PACS) Potential Wireless Acquisition types: 1.) Digital Flat Panel Digital Detector (FPD) -
Page 5: Intended Use
INTENDED USE FDA 510(k) Indications for use The Radlink GPS is intended for digital image capture use in general radiographic examinations, whenever conventional screen-film systems may be used. The Radlink GPS allows imaging of the pelvis, knee, skull, chest, shoulder, spine, abdomen and extremities. The digital images are... -
Page 6: Frequently Used Functions
3. Enter the password for the GPS User account if your facility has one, otherwise press enter to continue 4. Open the Radlink Pre-Op Viewer Software by double-clicking the desktop icon “Radlink Pre- Op” or open the Radlink Pro Imaging Acquisition Software by double-clicking the desktop icon “Radlink Pro Imaging”... -
Page 7: Connect To Radlink Wireless C-Arm Kit
ADLINK IRELESS 1. First, identify the last 4 digits of the Serial Number of the Radlink Wireless C-Arm Kit that you are trying to connect to. Make sure the device is powered on, and the green power light is illuminated 2. -
Page 8: Using The Radlink Gps Tablet In An Anterior Approach Tha Procedure
2. Once the GPS Tablet is on and Windows has booted, prior to opening the Radlink Pro Imaging Software, click on the “Internet Access” icon in the bottom right corner of the desktop 3. Scroll through the list of available wireless networks and select the network titled “RadlinkDRXXXX”, where the XXXX represents the last 4 digits of the Flat Panel Detector’s... -
Page 9: Using The Radlink Gps Tablet In A Posterior Approach Tha Procedure
Once the DR panel has been turned on, follow Steps 2-12 to complete the THA procedure: 2. Double-click the Radlink Pre-op icon on to access the PACS. Select the pre-operative image to be used as a reference during the case (if one is available) 3. - Page 10 11. Refer to the Surgeon’s Checklist™ user manual to take measurements with the software. 12. If it is necessary to shoot another image, click SCAN and Start DR and repeat steps 7-10. 00.09-013 Rev. E – Radlink GPS Tablet User Manual (07/31/2017) Page 10 of 16...
-
Page 11: Charging The Dr Panel Battery
The label on the battery should inward until the battery ejects. be on the opposite side of the label of the panel. Insert the battery all the way until it clicks. 00.09-013 Rev. E – Radlink GPS Tablet User Manual (07/31/2017) Page 11 of 16... -
Page 12: Preventative Maintenance
Full system scans can be done manually in addition to automatic daily scans. 5. Updates for Windows OS operating system are tested and approved by Radlink. A list of the most current approved updates can be found at Radlink.com. Recommended monthly. -
Page 13: Troubleshooting
If your device is still not responding, please call Radlink Technical Support For questions, call Radlink Technical Support: 310-643-6900, ext. 2 Mon-Fri, 6:00 a.m. – 5:00 p.m. PST 00.09-013 Rev. E – Radlink GPS Tablet User Manual (07/31/2017) Page 13 of 16... -
Page 14: Safety Signs And Symbols
Fragile, handle with care Keep this equipment dry Refer to Radlink GPS Software User Guide (00.09-007) for detailed software instructions, including system, error, and fault messages that are generated, unless these messages are self- explanatory. European Representative Information... -
Page 15: Warnings For Radlink Gps Tablet Unit
WARNING - There is potential for electromagnetic or other reciprocal interference between the Radlink GPS Tablet Do not touch the Radlink GPS Tablet and the patient at the and other medical electrical devices together. To minimize same time... - Page 16 Radlink, Inc. www.radlink.com (310) 643-6900 815 N. Nash St. El Segundo, CA 90245 00.09-013 Rev. E – Radlink GPS Tablet User Manual (07/31/2017) Page 16 of 16...
