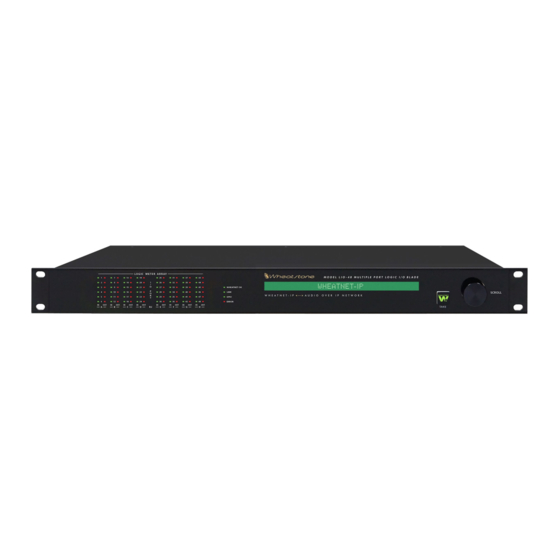

WheatNet-IP
A
o
iP N
u d i o
ver
etwork
Lio-48 M
P
L
i/o B
uLtiPLe
ort
ogic
LAde
T
M
echnical
anual
600 Industrial Drive, New Bern, N.C. 28562 ( tel 252-638-7000 / fax 252-637-1285 / email@ wheatstone.com )

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LI0-48 and is the answer not in the manual?

Questions and answers

Related Manuals for Wheatstone Corporation LI0-48

Summary of Contents for Wheatstone Corporation LI0-48

  • Page 1 WheatNet-IP iP N u d i o etwork Lio-48 M i/o B uLtiPLe ogic LAde echnical anual 600 Industrial Drive, New Bern, N.C. 28562 ( tel 252-638-7000 / fax 252-637-1285 / email@ wheatstone.com )
  • Page 2 WheatNet-IP iP N udio etwork Lio-48 M i/o B uLtiPLe ogic LAde echnical anual Wheatstone Corporation May 2013...
  • Page 3 Wheatstone WheatNet-IP Audio Over IP Network LIO-48 Multiple Port Logic I/O BLADE ©2013 Wheatstone Corporation 600 Industrial Drive New Bern, North Carolina 28562 tel 252-638-7000 / fax 252-637-1285...
  • Page 4 Attention! Attention! Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful inter- ference when the equipment is operated in a commercial environment.
  • Page 5 Adding The LIO-48 To The Peripheral Devices* Tab In order to utilize all the features of the LIO‑48 Multiple Port Logic I/O BLADE the device must be added to the System Peripheral Devices tab in the Wheatstone WheatNet‑IP Navigator program (aka the Navigator GUI). This sheet shows you the basics of that procedure.

  • Page 6: Table Of Contents

    C O N T E N T S LIO-48 Technical Manual Table of Contents Chapter 1 - General Information Introduction ..................1-2 Rack Mounting ................1-2 Installation Tips ................1-2 Energizing ..................1-3 A Word About Nomenclature ............1-3 Model LIO-48 Multiple Port Logic I/O BLADE ......1-4 Network Switches ................
  • Page 7 C O N T E N T S Chapter 3 - The Software Tools And Basic LIO-48 Setup Software Basics ................3-2 Razor Setup Tool ................3-2 Razor Setup Tool – First Launch ..........3-2 Adding A Device To The Devices Panel ........3-3 Discovering The System ...............
  • Page 8 C O N T E N T S The Hardware Menu ..............5-3 Add New Device......................5-3 Edit “< device name >”....................5-3 Remove “< device name >”..................5-3 Assign IP Address......................5-4 Version........................5-5 Update........................5-5 Reboot........................5-5 The Help Menu ................5-5 About...
  • Page 9 G E N E R A L I N F O R M A T I O N General Information Chapter Contents Introduction ..................1-2 Rack Mounting ................1-2 Installation Tips ................1-2 Energizing ..................1-3 A Word About Nomenclature ............1-3 Model LIO-48 Multiple Port Logic I/O BLADE ......

  • Page 10: Introduction

    The unit has no user‑serviceable parts inside! If you have a problem the unit must be returned to Wheatstone Corporation for repair. Installation Tips • Place any surge protection circuits as close as possible to the LIO‑48 or other device being protected.

  • Page 11: Energizing

    G E N E R A L I N F O R M A T I O N Energizing Once it has been installed in the rack, the LIO-48 may be energized by connecting the factory supplied power cord to a source of AC power. The AC line input voltage is permitted to be between 90 and 260VAC, 50 or 60Hz.

  • Page 12: Model Lio-48 Multiple Port Logic I/O Blade

    G E N E R A L I N F O R M A T I O N destination wired to an output jack is an “output,” control surface fader channels would not normally be considered “outputs” but they are “destinations” in the WheatNet‑IP system, because you can route a WheatNet‑IP audio stream to them.

  • Page 13: Network Switches

    G E N E R A L I N F O R M A T I O N Network Switches The next component of the WheatNet-IP system is your network switch(es). These are standard Ethernet devices that form the core of your LAN. You may already have a suitable one in place in your facility.

  • Page 14: Logic Ports Connections

    G E N E R A L I N F O R M A T I O N Logic Ports Connections The rear panel has eight RJ-45 connectors that have the connections for all 48 ports (each RJ-45 has connections for six ports). Two DB-25 female connectors duplicate the logic port connections.
  • Page 15 G E N E R A L I N F O R M A T I O N +5VDC LOGIC DB-9 Pin 1 – +5V Logic 1 Pin 2 – +5V Logic 2 Pin 3 – +5V Logic 3 Pin 4 – +5V Logic 4 Pin 5 –...

  • Page 16: Simplified Blade Logic I/O

    G E N E R A L I N F O R M A T I O N Simplified BLADE Logic I/O Input Logic EXTERNAL BLADE LIO PORT CLOSURE INPUT LOGIC Input Port Specs INPUT • Internally current limited • No pull up required DGND Logic Inputs are activated when the input pin is pulled to DGND.
  • Page 17 LOGIC I/O PORTS +5VDC DB-9 LOGIC RJ PORTS A RJ-45 E RJ-45 1 - 24 DB-25 ETHERNET 100M RJ-45 1G RJ-45 DIGITAL GROUND DIGITAL GROUND TX + TRD0 + LOGIC 1 IN/OUT LOGIC 25 IN/OUT TX - TRD0 - +5V LOGIC 5 LOGIC 2 IN/OUT LOGIC 26 IN/OUT DIGITAL GROUND...
  • Page 18 LOGIC I/O PORTS +5VDC DB-9 LOGIC RJ PORTS A RJ-45 E RJ-45 1 - 24 DB-25 ETHERNET 100M RJ-45 1G RJ-45 DIGITAL GROUND DIGITAL GROUND TX + TRD0 + LOGIC 1 IN/OUT LOGIC 25 IN/OUT TX - TRD0 - +5V LOGIC 5 LOGIC 2 IN/OUT LOGIC 26 IN/OUT DIGITAL GROUND...
  • Page 19 F R O N T P A N E L O P E R A T I O N Front Panel Operation Chapter Contents First Time Power Up ..............2-2 Front Panel Controls ..............2-2 Basic Network Settings ..............2-2 Making The Basic Network Settings ..........

  • Page 20: First Time Power Up

    F R O N T P A N E L O P E R A T I O N Front Panel Operation First Time Power Up With the LIO-48 disconnected from the network, apply power by connecting its AC power cord to the AC power source. You will see a test pattern of LEDs on the front panel, and there will be a sequence of characters on the backlit display.

  • Page 21: Making The Basic Network Settings

    F R O N T P A N E L O P E R A T I O N Making The Basic Network Settings Let’s say, for our example, that the LIO-48 we are currently setting up is going to use an IP address of 192.168.87.236, a subnet mask of 255.255.255.0, and a gateway setting of 192.168.87.1.

  • Page 22: Regarding The Lio-48 As Part Of A System

    F R O N T P A N E L O P E R A T I O N At this point you will need to power cycle the LIO-48 to apply the new settings. Disconnect the AC power cord, wait 10 seconds, then reconnect the AC power to the unit.
  • Page 23 F R O N T P A N E L O P E R A T I O N An example can help clarify this description. Let’s say the display reads like this: The IN section indicates the following information about logic ports 1 – 6: port 1 is not an input port port 2 is not an input port port 3 is an input port and is OFF...
  • Page 24 F R O N T P A N E L O P E R A T I O N page 2 – 6 LIO-48 / May 2013...

  • Page 25: Front Panel Menu Diagram

    F R O N T P A N E L O P E R A T I O N Front Panel Menu Diagram page 2 – 7 LIO-48 / May 2013...
  • Page 26 S O F T W A R E T O O L S A N D B A S I C L I O - 4 8 S E T U P The Software Tools And Basic LIO-48 Setup Chapter Contents Software Basics ................

  • Page 27: Software Basics

    S O F T W A R E T O O L S A N D B A S I C L I O - 4 8 S E T U P The Software Tools And Basic LIO-48 Setup Software Basics There are two basic software packages you will use when working with the LIO‑48.

  • Page 28: Adding A Device To The Devices Panel

    S O F T W A R E T O O L S A N D B A S I C L I O - 4 8 S E T U P Down the left side of the main panel are tabs for Sources and Destinations. This area will be discussed later.

  • Page 29: Discovering The System

    S O F T W A R E T O O L S A N D B A S I C L I O - 4 8 S E T U P Discovering The System Let’s turn our attention now to the System Info panel. As mentioned earlier, the first time you start up the Razor Setup Tool this area will be blank.

  • Page 30: The Lio-48 Is A 3Rd Party Device

    S O F T W A R E T O O L S A N D B A S I C L I O - 4 8 S E T U P At this point in time you can inspect the available resources by checking the various tabs in the System Info panel.
  • Page 31 S O F T W A R E T O O L S A N D B A S I C L I O - 4 8 S E T U P If all is well you will see that the LIO-48 has been added to the 3rd party device list, and also shows up in the System panel under the selected host BLADE.

  • Page 32: Chapter 4 - Drilling Deeper - Programming The Lio-48

    D R I L L I N G D E E P E R – P R O G R A M M I N G T H E L I O - 4 8 Drilling Deeper – Programming The LIO-48 Chapter Contents Programming The LIO-48 ..............

  • Page 33: Wiring Switches And Leds To The Logic Ports

    D R I L L I N G D E E P E R – P R O G R A M M I N G T H E L I O - 4 8 Drilling Deeper – Programming The LIO-48 Programming The LIO-48 In order to use the LIO-48 logic ports it is necessary to do some programming to configure the ports for the desired application.

  • Page 34: Program Logic On The Remote Blade

    D R I L L I N G D E E P E R – P R O G R A M M I N G T H E L I O - 4 8 Program Logic On The Remote BLADE We begin by creating a logic only source on BLADE 3 in Navigator.

  • Page 35: Test Example 1

    D R I L L I N G D E E P E R – P R O G R A M M I N G T H E L I O - 4 8 Click Add... to bring up the Assign an I/O Wire to TurnItOn LIO 1 dialog. Click the line for Lio 2 –...

  • Page 36: Program More Logic On The Remote Blade

    D R I L L I N G D E E P E R – P R O G R A M M I N G T H E L I O - 4 8 when we want to switch studios. The crosspoint change could be programmed into the same salvo that is probably already in use for switching other resources between Studio A and Studio B.

  • Page 37: Program Logic On The Remote Blade

    D R I L L I N G D E E P E R – P R O G R A M M I N G T H E L I O - 4 8 RJ connector that works nicely with this, so connection between the GP-4 and the LIO-48 can be made with a single normal (straight, pin-for-pin) CAT5 or CAT6 cable.
  • Page 38 D R I L L I N G D E E P E R – P R O G R A M M I N G T H E L I O - 4 8 In the Wire column of the Assign an LIO to ANA3-1 dialog (remember, your signal name is probably not going to be ANA3-1) expand the LIO-48 A LIOs item to show all available LIOs on the LIO-48.

  • Page 39: Beyond Example 2

    D R I L L I N G D E E P E R – P R O G R A M M I N G T H E L I O - 4 8 Program the remaining rows of this group, using the following for Direction: and Function: •...
  • Page 40 A D D I T I O N A L R A Z O R S E T U P T O O L D E T A I L S Additional Razor Setup Tool Details Chapter Contents What Else can I Do? ..............5-2 The File Menu .................

  • Page 41: What Else Can I Do

    A D D I T I O N A L R A Z O R S E T U P T O O L D E T A I L S Additional Razor Setup Tool Details What Else Can I Do? We haven’t covered everything that you can do in the Razor Setup Tool.

  • Page 42: System Info

    A D D I T I O N A L R A Z O R S E T U P T O O L D E T A I L S System Info This check box affects the visibility of the System Info panel. Stylized The third box affects the overall appearance of the program.

  • Page 43: Assign Ip Address

    A D D I T I O N A L R A Z O R S E T U P T O O L D E T A I L S the device from the Devices panel, while clicking No will cancel the removal. You can also trigger the removal action by clicking the Remove...

  • Page 44: Version

    A D D I T I O N A L R A Z O R S E T U P T O O L D E T A I L S Version... If it is necessary to contact Wheatstone Customer Support in regard to the LIO-48 you may be asked what version of software the unit is running.

  • Page 45: Delete

    A D D I T I O N A L R A Z O R S E T U P T O O L D E T A I L S Delete Click the Delete button to delete a highlighted source or destination. Apply Clicking Apply at the bottom of the Sources / Destinations area saves any source or destination changes you’ve made.
