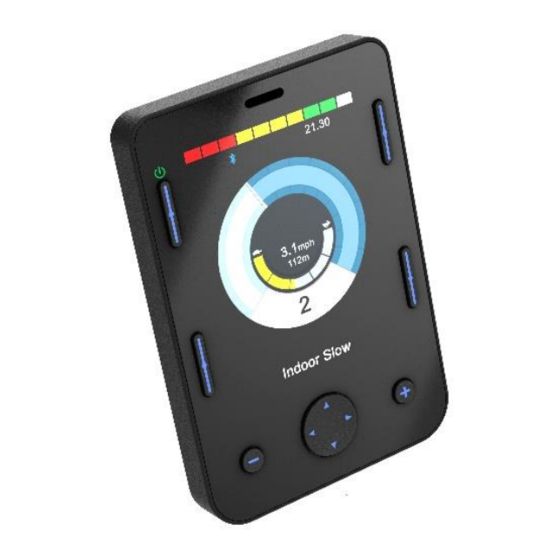

- Page 1 PG DRIVES TECHNOLOGY R-NET OMNI2 USER MANUAL SK82613-01 ENGLISH (AMERICAN)
- Page 2 The information in this manual is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by Curtiss-Wright. Except as permitted by such terms, no part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means electronic, mechanical, recording, or otherwise - without the prior written permission of Curtiss-Wright.
-
Page 3: Table Of Contents
Learning an IR code ........38 3.1.4 Digital speed display ..........19 Learning an IR code - sequence ....40 3.1.5 Total or trip distance (Odometer) ....... 19 3.1.6 Maximum speed indicator ........20 SK82613-01 R-net Omni2 User Manual | Table of contents | 3... - Page 4 Functionality commands ......52 7.5.1 Double click change ..........52 7.5.2 Auto toggle change ..........52 7.5.3 Switch medium change ........53 Single switch scanner ........53 Sip and puff ..........54 SK82613-01 4 | R-net Omni2 User Manual | Table of contents...
-
Page 5: Table Of Figures
Figure 45 – Scanner sequence, ‘latched’ operation in reverse, driving in reverse......................... 48 Figure 46 – Seating scanner symbols ......................................48 Figure 47 – Sip and puff commands ......................................49 SK82613-01 R-net Omni2 User Manual | Table of figures | 5... -
Page 6: About This Manual
Installer (IN) – the person fitting the Omni2 / SID(s) to the wheelchair and / or programming to suit the occupant (may also be a Healthcare Professional). Curtiss-Wright accept no liability for losses of any kind if these cautions and/or warnings are ignored. SK82613-01... -
Page 7: Definition Of Terms Used And Abbreviations
User switch 1, used with port 1 SID. User switch 2, used with port 2 SID. User Switch: The switch for the user that initiates profile/mode changes and emergency stopping. SK82613-01 R-net Omni2 User Manual | Definition of terms used and abbreviations | 7... -
Page 8: General Overview
INTRODUCTION This user manual covers the functions of the R-net Omni2 and is intended as an extension to the wheelchair’s user manual. Please read and follow all instructions and warnings in all manuals supplied with your wheelchair and its accessories. Incorrect use may both injure the user and damage the wheelchair. -
Page 9: Controls And Connections
Plus (+) button Sounder WARNING (OP, HP, IN) Do not attempt to operate the wheelchair if the LCD screen is damaged or malfunctioning. Curtiss-Wright accept no liability for losses of any kind arising from failure to comply with this condition. SK82613-01... -
Page 10: Function Buttons
The mode button can be used to change between the available modes. See item (F) on figure 1. 2.1.6 MINUS (-) BUTTON The minus (-) button can be used to reduce the speed within a drive profile. See item (C) on figure 1. SK82613-01 10 | R-net Omni2 User Manual | Controls and connections... -
Page 11: Plus (+) Button
At the base of the ‘Display Section’, there is a connector for the cable which goes between the ‘Display Section’ and the ‘Input Section’. See item (I) on figure 1. CAUTION (OP, HP, IN) Use only Curtiss-Wright supplied Omni2 connection cable. SK82613-01 R-net Omni2 User Manual | Controls and connections | 11... -
Page 12: Input Section
Curtiss-Wright | PG Drives Technology INPUT SECTION Figure 2 – An overview of the ‘Input Section’. The R-net Omni2 ‘Input Section’ connects to the ‘Display Section’ using the Omni2 cable supplied, and provides the following connections: R-net communications connector SID Port 2, 9-Way D-type connector... -
Page 13: Charging Socket
Located under the rubber seal, the ‘type A’ USB socket can be used to charge devices such as mobile phones. See item (L) on figure 2. CAUTION (OP, HP, IN) Only use for charging mobile devices. The USB charging port is rated at 5V, 2.1A. SK82613-01 R-net Omni2 User Manual | Controls and connections | 13... -
Page 14: 9-Way D-Type Sid Connectors, Port 1 And Port 2
This pneumatic switch input provides a connection to a saliva tube for a sip and puff input. The tube should be 3.5mm (1/8”) in diameter. See item (I) on figure 2. SK82613-01 14 | R-net Omni2 User Manual | Controls and connections... -
Page 15: Display / Input Section Connector
This connector is used to link the ‘Input Section’ to the ‘Display Section’, using the Omni2 cable supplied. See item (H) on figure 2. CAUTION (OP, HP, IN) Use only Curtiss-Wright supplied Omni2 connection cable. SK82613-01 R-net Omni2 User Manual | Controls and connections | 15... -
Page 16: Display Section Screens And Symbols
As a rough indication, the following applies: Red, yellow and green Fully charged Red and yellow Half charged Charge the batteries SK82613-01 16 | R-net Omni2 User Manual | Display Section screens and symbols... -
Page 17: Information Bar
Visibility, whether the clock is displayed on screen. • The display format, 12 or 24 hour. These adjustments are made within the settings menu. Refer to the settings menu section 3.6 for further details. SK82613-01 R-net Omni2 User Manual | Display Section screens and symbols | 17... - Page 18 The lights icon will be switched on when the lights have been activated. NOTE (OP, HP, IN) The lights icon will only be visible when a module supporting lighting, e.g. ISM-L, is connected to the system. SK82613-01 18 | R-net Omni2 User Manual | Display Section screens and symbols...
-
Page 19: Speed Indicator
This selection is made in the settings menu. Refer to the settings menu section 3.6 for further details. The value will be in miles (m) or kilometers (km). SK82613-01 R-net Omni2 User Manual | Display Section screens and symbols | 19... -
Page 20: Maximum Speed Indicator
If the speed of the wheelchair is being limited, for example, by a raised seat, then this orange symbol will be displayed: These turtle icons will be displayed on the left part of the speed indicator, see item (C) on figure 3. SK82613-01 20 | R-net Omni2 User Manual | Display Section screens and symbols... -
Page 21: Latched Drive
These symbols are only displayed if the Omni2 has been configured to use a three direction SID. They will appear in the middle of the speed indicator, just above the digital speed display. Refer to sections 6.3 and 6.4 for further details on operation with three direction SIDs. SK82613-01 R-net Omni2 User Manual | Display Section screens and symbols | 21... -
Page 22: Scanner Drive Symbols
If a single switch scanner type SID is being used, then the switch will operate in the same way as a right SID command in the above instance. SK82613-01 22 | R-net Omni2 User Manual | Display Section screens and symbols... -
Page 23: Seat Functions Screen
The initial Bluetooth® mode screen will be dependent on whether the Omni2 has been set-up to control one or more devices. If set-up to control just one device, a screen such as figure 7 will appear. SK82613-01 R-net Omni2 User Manual | Display Section screens and symbols | 23... -
Page 24: Infra-Red (Ir) Screen
Refer to your approved installer, health professional or dealer for the PC based method. NOTE (HP, IN) When an Omni2 is dispatched from Curtiss-Wright there are no stored IR codes. If IR screen is not available and there are stored IR codes, then refer to IR set-up in section 5. -
Page 25: Figure 10 - Example Of An Ir Command In Use
For each appliance there is a list of associated IR commands. Using the TV example, commands such as: ‘On/Off’, ‘Channel Up’, ‘Channel Down’, ‘Volume Up’ and ‘Volume Down’ may be displayed. When the Omni2 is transmitting the selected command, it is highlighted with a red background. SK82613-01 R-net Omni2 User Manual | Display Section screens and symbols | 25... -
Page 26: Settings Screen
A right SID deflection will clear the ‘Trip Distance’ value. Exit A right SID deflection when ‘Exit’ is highlighted will exit the ‘Distance’ sub-menu and return to the settings menu. SK82613-01 26 | R-net Omni2 User Manual | Display Section screens and symbols... -
Page 27: Backlight
Figure 12 – Example of the ‘Programming’ menu screen. A right SID deflection when ‘Programming’ is highlighted will enter a sub-menu for programming with access to two further sub-menus, ‘Controls’ and ‘System’. SK82613-01 R-net Omni2 User Manual | Display Section screens and symbols | 27... -
Page 28: Figure 13 - Example Of The 'Controls' Menu Screen
A right SID deflection when ‘System’ is highlighted will enter a sub-menu displaying system information, including ‘Diagnostics’ and ‘Timers’ options. Figure 14 – Example of the ‘System’ menu screen. SK82613-01 28 | R-net Omni2 User Manual | Display Section screens and symbols... -
Page 29: Exit
A right SID deflection when ‘Timers’ is highlighted enables the user to view how many hours the wheelchair has been driven. 3.6.7 EXIT A right SID deflection when ‘Exit’ is highlighted will exit the settings menu and return to the user menu. SK82613-01 R-net Omni2 User Manual | Display Section screens and symbols | 29... -
Page 30: Bluetooth® Set-Up
For the remainder of this section, it will be assumed the device names have been set per the following screen: Figure 17 – Example of device names used for this section. SK82613-01 30 | R-net Omni2 User Manual | Bluetooth® Set-up... -
Page 31: Pairing With A Bluetooth® Device
Trust BT-2400 or later • Belkin F8T012uk1 Version 1000 or later Once a Bluetooth® connection is confirmed, the following process should be undertaken on the PC (example based on Windows 10): SK82613-01 R-net Omni2 User Manual | Bluetooth® Set-up | 31... -
Page 32: Figure 19 - Windows 10 'Bluetooth® And Other Devices' Settings Window
Click on the ‘+ Add Bluetooth® or other device’ section in the ‘Bluetooth® & other devices’ menu and then select ‘Bluetooth®’: Figure 20 – Windows 10 ‘Add a device’ options window SK82613-01 32 | R-net Omni2 User Manual | Bluetooth® Set-up... -
Page 33: Figure 21 - Windows 10 List Of Available Local Bluetooth® Devices
Figure 22 – Windows 10 ‘Your device is ready to go!’ window The blue icon on the Omni2 should have stopped flashing. If the process fails, click on ‘Tom’s PC’, then ‘Disconnect’ and repeat the process. SK82613-01 R-net Omni2 User Manual | Bluetooth® Set-up | 33... -
Page 34: Pairing With An Android Device
This process is initiated from the paired device and will vary dependent on the type of device. Once the device is unpaired a new device can be added. SK82613-01 34 | R-net Omni2 User Manual | Bluetooth® Set-up... -
Page 35: Infra-Red (Ir) Set-Up
IR mode is accessed via the user menu (see figure 24), or via several presses of the mode button, refer to item (F) on figure 1. Figure 24 – Example of ‘User Menu’ with ‘IR Mode’ option. NOTE (HP, IN) When an Omni2 is dispatched from Curtiss-Wright there are no stored IR codes. SK82613-01 R-net Omni2 User Manual | Infra-Red (IR) Set-up | 35... -
Page 36: Figure 25 - Example Of 'Ir Mode' Screen
NOTE (HP, IN) When an Omni2 is dispatched from Curtiss-Wright, it will contain a default menu as shown in section 5.8. An approved installer, health professional or dealer can use the PC based ‘IR Configuration tool’ to change this default menu to suit the wheelchair user. -
Page 37: Ir Set-Up
. By selecting an appliance, then its commands will be shown. If a command is checked, this means it has a stored IR code. If there is not a check, then there is no stored IR code for that command. Figure 29 – IR code stored for ‘On/Off’ command. SK82613-01 R-net Omni2 User Manual | Infra-Red (IR) Set-up | 37... -
Page 38: Learning An Ir Code
Figure 31 – ‘TV1’ ‘Channel Up’ selected. Move the SID right, or use the right navigation button, to enter the sub-menu ‘Channel Up’. Figure 32 – ‘Channel Up’ sub-menu. SK82613-01 38 | R-net Omni2 User Manual | Infra-Red (IR) Set-up... -
Page 39: Figure 33 - 'Learn Code' Process Screen, Awaiting Ir Transmission From Remote
The first time an IR code has been learnt, it is necessary to power the Omni2 off and on again. If other IR codes are already learnt, then this is not necessary. SK82613-01 R-net Omni2 User Manual | Infra-Red (IR) Set-up | 39... -
Page 40: Learning An Ir Code - Sequence
This time, the ‘On/Off’ command will have a check and three dots in the far right column, showing a learnt sequence, as displayed below in figure 34. Figure 36 – ‘On/Off’ command has an IR sequence stored. SK82613-01 40 | R-net Omni2 User Manual | Infra-Red (IR) Set-up... -
Page 41: Enabling And Disabling Ir Codes
To enable an IR code, select the plus (+) key on the ‘Display Section’ of the Omni2. An enabled code appears with a check against the highlighted command. Figure 37 – Showing minus (-) and plus (+) buttons and enabled/disabled IR codes. SK82613-01 R-net Omni2 User Manual | Infra-Red (IR) Set-up | 41... -
Page 42: Deleting Ir Codes
NOTE (OP, HP, IN) When deleting all learnt codes for a specific appliance, it is necessary to power the Omni2 off and on again to actually delete the codes. SK82613-01 42 | R-net Omni2 User Manual | Infra-Red (IR) Set-up... -
Page 43: Figure 40 - 'Ir Setup' Menu 'Delete All Codes' Option
Figure 40 – ‘IR Setup’ menu ‘Delete All Codes’ option. NOTE (OP, HP, IN) When deleting all learnt/stored IR codes, it is necessary to power the Omni2 off and on again to actually delete the codes. SK82613-01 R-net Omni2 User Manual | Infra-Red (IR) Set-up | 43... -
Page 44: Curtiss-Wright Default Ir Menus
On/Off Command 2 Play Command 3 Stop Command 4 Pause Command 5 Fast Fwd Command 6 Fast Rev Command 7 Command 8 Figure 41 – Curtiss-Wright default IR menus SK82613-01 44 | R-net Omni2 User Manual | Infra-Red (IR) Set-up... -
Page 45: Basic Operation
A joystick SID offers a proportional input control to the Omni2. Examples are chin control, foot control or heavy/light operating-force joysticks. One example would be a ‘Curtiss-Wright’ chin control joystick e.g. D50064, or a ‘Permobil Compact Joystick’ connected to either port 1 or 2 of the Omni2. -
Page 46: Four Direction Switches And User Switch
* Depending on the installation, there may be an additional user switch integrated into the head array. This switch would connect to the Omni2 via the fifth switch input on the 9-way D-type connector, and behave in the same way as the user switch. SK82613-01 46 | R-net Omni2 User Manual | Basic operation... -
Page 47: Single Switch Scanner
If the user switch is pressed when the ‘M’ icon is shown, the Omni2 will enter the user menu. SK82613-01 R-net Omni2 User Manual | Basic operation | 47... -
Page 48: Seating Control
‘up’, ‘down’ and ‘exit’ choices. Each option can then be selected with an operation of the user switch. Down. Exit Axis. Figure 46 – Seating scanner symbols For advanced functions available with this SID, refer to section 7.6. SK82613-01 48 | R-net Omni2 User Manual | Basic operation... -
Page 49: Sip And Puff
In seating mode, standard control of seating movements is via a hard puff or sip and a soft puff or sip will select a different seat axis for movement. For advanced functions available with this SID, refer to section 7.7. SK82613-01 R-net Omni2 User Manual | Basic operation | 49... -
Page 50: Advanced Functions
It is possible to set up the Omni2 so that the functions can be navigated audibly. This can be useful if the user cannot always easily see the Omni2’s screen. An authorized dealer, installer or health professional should be used to configure this if required. SK82613-01 50 | R-net Omni2 User Manual | Advanced functions... -
Page 51: Four Direction Switches And User Switch
It is possible to set up the Omni2 so that the functions can be navigated audibly. This can be useful if the user cannot always easily see the Omni2’s screen. An authorized dealer, installer or health professional should be used to configure this if required. SK82613-01 R-net Omni2 User Manual | Advanced functions | 51... -
Page 52: Functionality Commands
This method is selected by having an authorized dealer, installer or health professional program the setting ‘Fwd/Rev Auto Toggle’ to ‘on’. The user switch is used to enter the user menu or sequence through the other functions on the wheelchair. SK82613-01 52 | R-net Omni2 User Manual | Advanced functions... -
Page 53: Switch Medium Change
It is possible to set up the Omni2 so that the functions can be navigated audibly. This can be useful if the user cannot always easily see the Omni2’s screen. An authorized dealer, installer or health professional should be used to configure this if required. SK82613-01 R-net Omni2 User Manual | Advanced functions | 53... -
Page 54: Sip And Puff
An authorized dealer, installer or health professional will also be able to program a ‘latched’ operation of the actuators in seating mode, or driving in drive mode, if required with this type of SID. SK82613-01 54 | R-net Omni2 User Manual | Advanced functions...
