Edu-Logger 900-244 Manual

Wide range temperature logger sensor
Hide thumbs

Advertisement

Quick Links

Download this manual
Edu-Logger Wide Range
Temperature
Logger Sensor Guide
900-244

Advertisement

loading
Need help?

Need help?

Do you have a question about the 900-244 and is the answer not in the manual?

Questions and answers

Summary of Contents for Edu-Logger 900-244

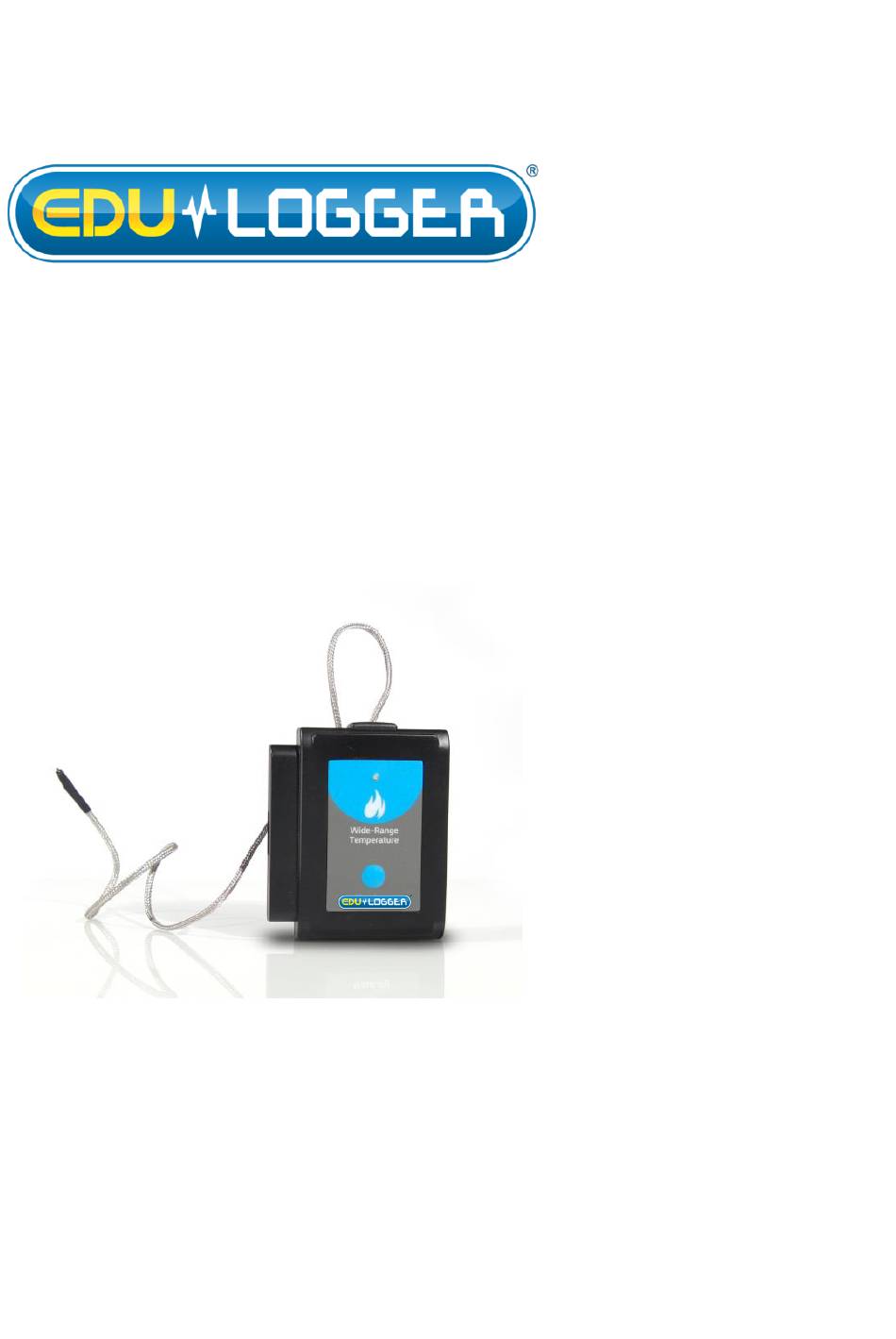

  • Page 1 Edu-Logger Wide Range Temperature Logger Sensor Guide 900-244...
  • Page 2 Extremely durable with a mesh metal wire coating. Hundreds of possible experimental subjects that can be done with the 900-244 sensors are: exothermic and endothermic chemical reactions, heat of combustion for different materials, metabolism, heat and energy transfer, effects of heat on enzyme function, weather studies, material thermal conductance properties, and many more.
  • Page 3 United States. Quick start procedure: PC or Mac Computer Materials needed:  900-244 Wide Range Temperature Sensor  900-213 USB Module  USB to mini USB cable (included with the 900- 213 module) Your wide range temperature sensor needs to be connected to a 900-213 module.
  • Page 4 900-268 module. The 900-268 module will create a closed Edu-Logger WiFi network which will stream the Edu-Logger data to a device of your choosing. Once your device is wirelessly connected to the Edu-Logger network you can run experiments and collect data through a browser of your choosing.
  • Page 5 LED to the far left turns blue; this can take up to one minute. Take your tablet or smart phone, go to the WiFi settings and select the Edu-Logger network which matches the 900-268 Module ID found on back 900-268 device.
  • Page 6 Repeating this operation will return the unit to WiFi mode. Operation with Edu-Logger viewer Materials needed:  900-244 Wide Range Temperature Sensor  900-272 Viewing Module  900-215 Battery Procedure: Connect the wide range temperature sensor to the left side of the viewer.
  • Page 7 (Off-line experiments are for when you do not have a sensor connected directly to a computer, tablet, smartphone, or Edu-Logger viewer). Materials needed:  900-244 Wide Range Temperature Sensor  900-215 Battery Materials needed to configure your offline experiment:  900-213 Module or 900-268 module or 900-272 Module ...
  • Page 8 Click the “Load data from sensors” button. Select which experimental data to upload. (5 experimental runs can be stored at one time on the 900-244 wide range temperature sensor) Restoring sensor’s factory default settings: Procedure: Connect the 900-213 to a PC, Mac, tablet, or smart device.
  • Page 9 Included with sensor:  Edu-Logger 900-244 Wide Range Temperature Sensor Guide (this document).  Temperature sensor flexible probe attached by durable rubber-coated wire to the sensor body. Sensor specifications Celsius Fahrenheit Range and -200°C to 1200°C -328°F to 2192°F operation modes...
  • Page 10 Videos, literature and other probes can be found at www.edulab.com Technical background: The philosophy behind Edu-Logger’s plug and play technology is based on each sensor’s ability to store its own data due to an internal flash memory chip and micro-controller in each plastic Edu-Logger body.

  • Page 11: Warranty

     Never submerge the Edu-Logger plastic body in any liquid.  Do not allow liquid into the wide range temperature sensor’s body.  After use, gently wipe away any foreign material from the wide range temperature sensor.  Store in a box at room temperature out of direct sunlight.
  • Page 12 Thank you for using Edu-Logger! www.edulab.com info@edulab.com V10012013...
