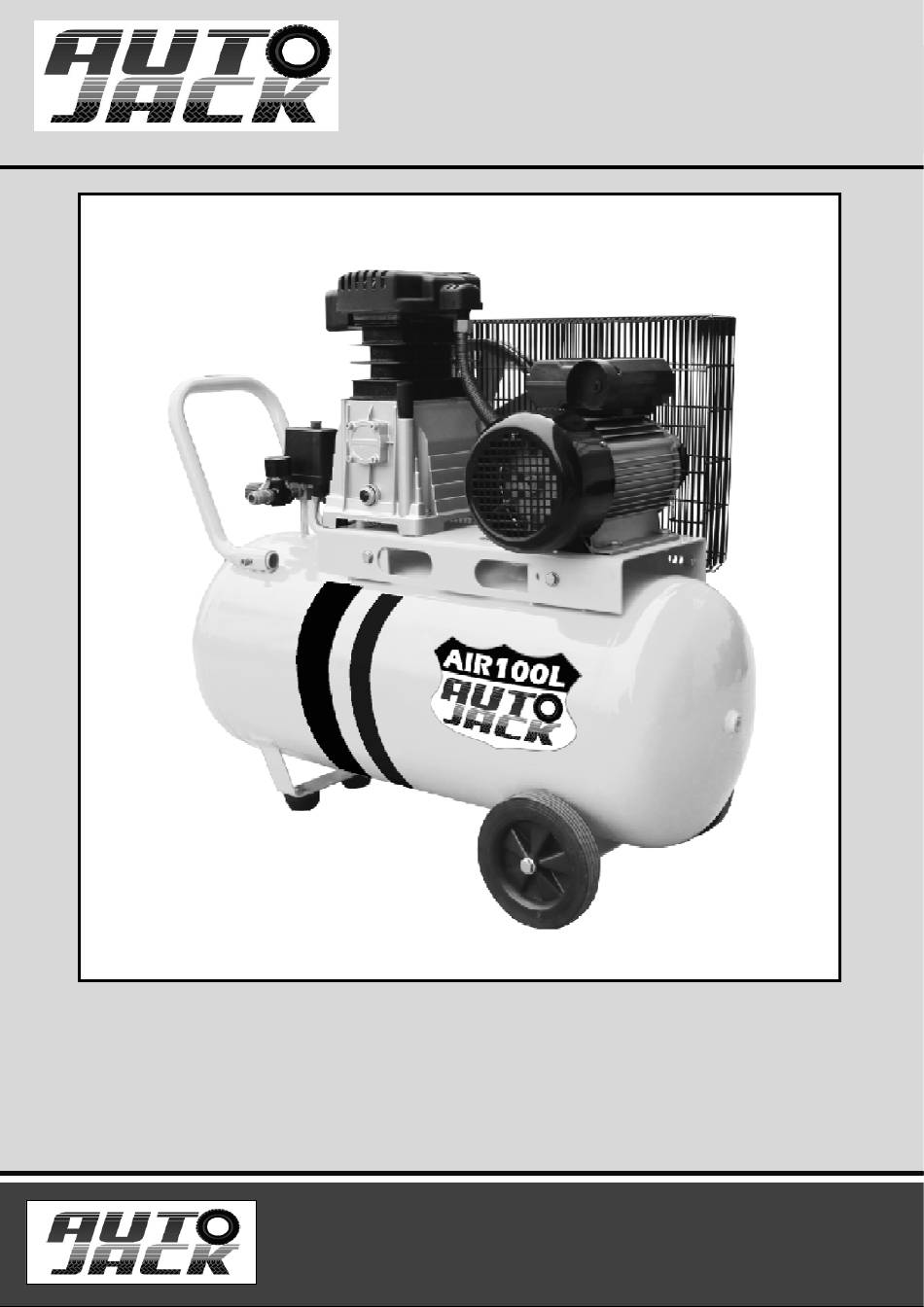

- Page 1 SAFETY AND OPERATING MANUAL 100 Litre Direct Drive Air Compressor AIR100L ORIGINAL INSTRUCTIONS AIR100L...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Welcome to Autojack! Dear customer, Congratulations on your purchase. Before using the Product for the first time please be sure to read these instructions for use. They provide you with all information necessary for using the product safely and to ensure its long service life. -
Page 3: General Power Tool Safety Warnings
A wrench or a key left c) Do not expose power tools to rain or wet attached to a rotating part of the power tool may conditions. Water entering a power tool will result in personal injury. increase the risk of electric shock. AIR100L... - Page 4 Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. AIR100L...
- Page 5 7.9 Ensure that the work area is at least 7.10 Do not use materials such as white spirits, Butyl Alcohol and methylene chloride with the PVC hose. These materials will destroy the hose damaging the product and creating an unsafe work environment. AIR100L...
- Page 6 9.4 The smaller the gauge number of the wire the greater the capacity of the cord. 9.5 When using a cable reel, always unwind the cable completely. AIR100L...
-
Page 7: Symbols & Cable Rating Chart
Caution! Wear a dust mask. Amperes 7.5M 0 – 2.0 2.1 – 3.4 3.5 - 5.0 5.1 – 7.1 7.1 – 12.0 12.1 – 20.0 AIR100L... -
Page 8: Machine Details And Product Features
Pressure reducer Air pressure gauge Pressure switch Button ON /OFF Compressor Air filter Piston block Oil filler plug with oil dipstick 11. Belt casing 12. Reset button 13. Electric motor 14. Receiver 15. Wheel 16. Drain valve 17. Support legs AIR100L... -
Page 9: Assembly
2.2 Fitting the oil and oil breather Before you starting the air compressor please remove the white oil stopper and add oil into crankcase. NOTE: Before starting the air compressor you must verify oil the crankcase and install the oil breather as described below: AIR100L... -
Page 10: Operation
The air inlet filter openings must be kept clear off obstructions, which could reduce air delivery of the compressor. AIR100L... - Page 11 Please check the bolts and nuts on motor and crank case and make sure all the bolts and nuts are securely tighten. If all the bolts and nuts are tighten very well, but the belt AIR100L...
-
Page 12: Maintenance And Service
Change air compressor oil. NOTE:Change oil more often if air compressor is used near paint spraying operations or in dusty environments. AIR100L... - Page 13 2. Too much oil in crankcase SAE30 no-detergent oil 3. Compressor over heated 2. Drain crankcase and refill to 4. Restricted oil breather proper level on oil sight glass 3. Reduce air pressure regulation 4. Clean or replace oil breather AIR100L...
-
Page 14: Autojack Guarantee
In our experience many initial problems with machines that are thought to be fault due to faulty 1.2.3 If asked to do so by Autojack or its parts are actually solved by correct setting up or Authorised Dealer, you return the product at adjustment of the machine. - Page 15 Autojack. If you include a contact number with this it will speed your claim up. 2.4 Please note that it is essential that the letter of claim reaches Autojack on the last day of this guarantee at the latest. Late claims will not be considered.
-
Page 16: Declaration Of Conformity
Old Heath Road, Wolverhampton, WV1 2RP. Tel: 01902 450 470 Declares that the Direct Drive Air Compressor (AIR100L) Is in compliance with the regulations included in the Directives:2006/42/EC EC DECLARATION OF CONFORMITY Certificate for EC-type examination delivered by Interk Testing Services Shanghai Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, China... -
Page 17: Parts List
Air filter Bolt Bolt Washer Spring washer Bolt Bracket Washer Gasket Spring washer Bearing Crank shaft Motor Breather Fly wheel for motor Oil sight glass+gasket Bolt Plate Spring washer Gasket Support Bolt Washer Bolt Spring washer Bolt Flat washer Cover AIR100L... - Page 18 Bolt Drain cock Belt Plate Tank Spring washer Wheel Spring washer Axle Wheel Air cock Washer Regulator Bolt Connect Washer Pressure switch Handle Power plug Connect Saftey valve Check valve Pressure gauge Exhaust pipe Pressure gauge Unloading assembly Bolt AIR100L...
-
Page 19: Parts Diagram
Parts Diagram AIR100L...
