Dynalog C-SCAN 2010 Mk.3 Quick Operation

C-SCAN 2010 Mk.3 Generator
On / Off
On/Off Key: Press and HOLD to switch ON/OFF.
Momentary press whilst active disconnects output
Store
Store/Down Key: Whilst active, stores present
Current setting in memory
Recall
Recall/Up Key: Sets current to stored value (see
Store key)
AUTO
AUTO/MANUAL Key: Sets current 600mA on AUTO
MANUAL
Press and HOLD to set manually (up/down keys)
(HOLD)
AUX connector
compatible with
Mk. 2 Generator
and C-SCAN
Quick Operation
Store Recall
On / Off

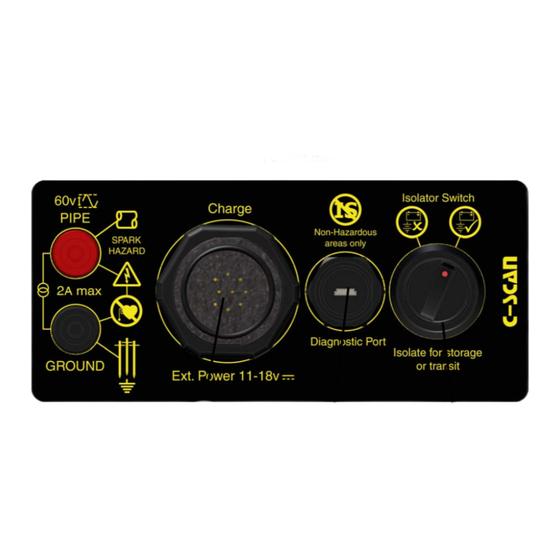

Side Panel Connectors

USB
Diagnostic
Port
AUTO
MANUAL
(HOLD)
Battery
Isolator Switch
