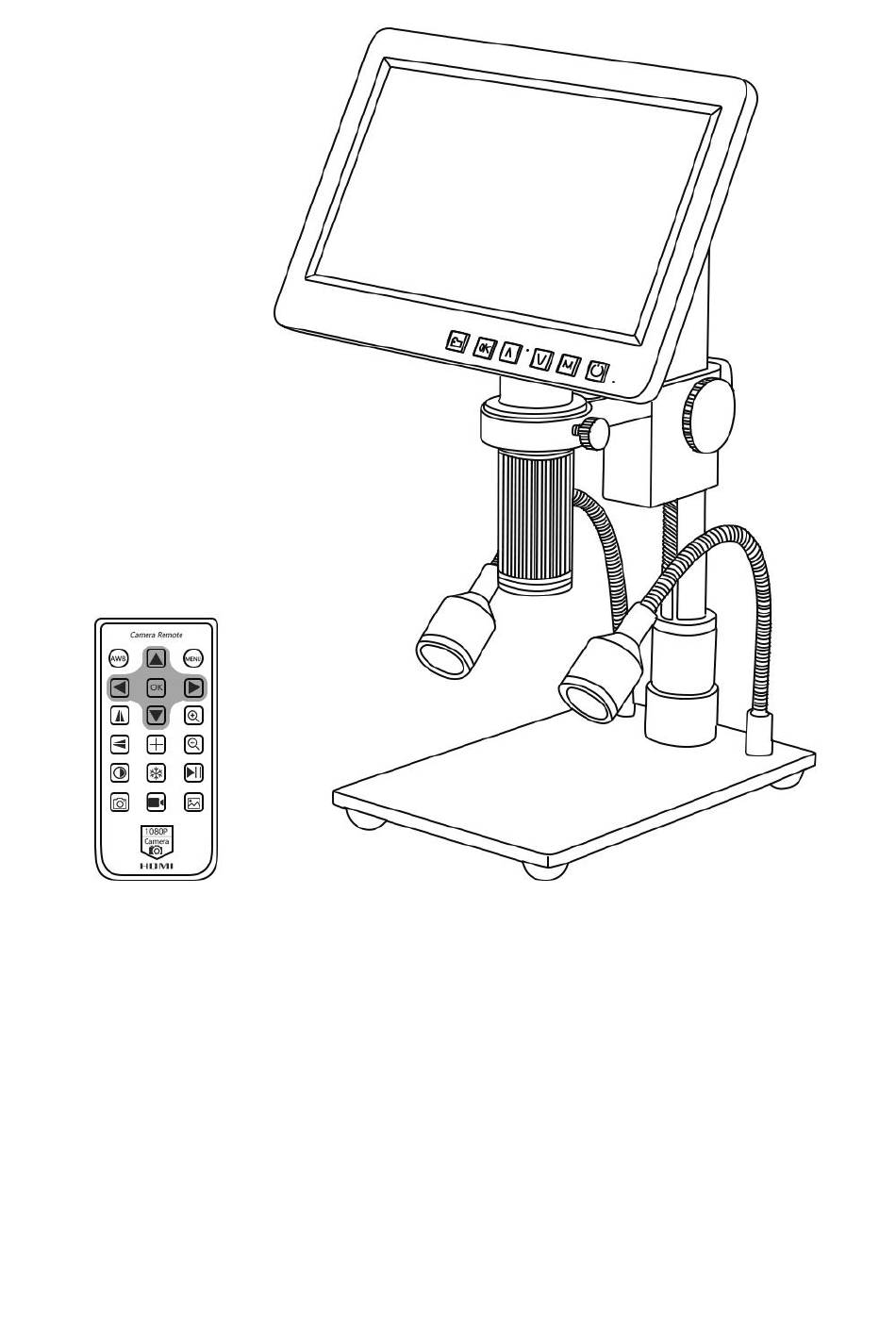

- Page 1 HY-2070 The instructions...
- Page 2 1.Product features HAYEAR has been developed and introduced a series of new products that meet users need and actual use scenarios by adhering to the simple and easy-to-use design principles. 2.Main parameter Model HY-2070 Image Sensor 26 megapixels CMOS IMX307 Sensor Pixel Size 2.9μm×...
- Page 3 3、Button Instruction 1. ［ ］Long press: Turn On/Off 2. ［M］Open Menu/Return to the previoumenu 3. ［V］Down. Without Menu: Zoom Out 4. ［ ］Photo/Video Mode. Reduce the Value 5. ［V］Up. Without Menu: Zoom In 6. ［OK］OK. Increase the value 一体机接线图 4、Interface Instruction 1.
- Page 4 3. Interface：12V/1.5A 4. Lens Type: Standard C/CS Interface 5、Remote control instructions White balance Menu Left Confirm Right Mirror Down Zoom in Flip Crosshairs Zoom out Black and white Freeze Play / pause Camera Video Picture 6、Operation Instruction 1. First plug in the required power supply and HDMI/USB cable. If you need to take pictures or video, you need to plug in a TF card and connect a len with a suitable working distance before plugging in the power supply 2.
- Page 5 4. If it is connected to the display device through the HDMI high-definition output interface, the display preview image will be output synchronously on the display device.If it is connected to PC through USB output interface, the image can be synchronous output to the screen of the camera and the computer.
- Page 6 12. Check the version of the machine： Press“M”to enter menu, press“∧”to enter the version confirmation, you can get the information of this machine. 13. Format function： In the HDMI output or preview mode, press the MENU button, and in the pop -up menu, select the “Format”...
