Gems iRGS232 Manual

Intelligent gps splitter

Advertisement

Quick Links

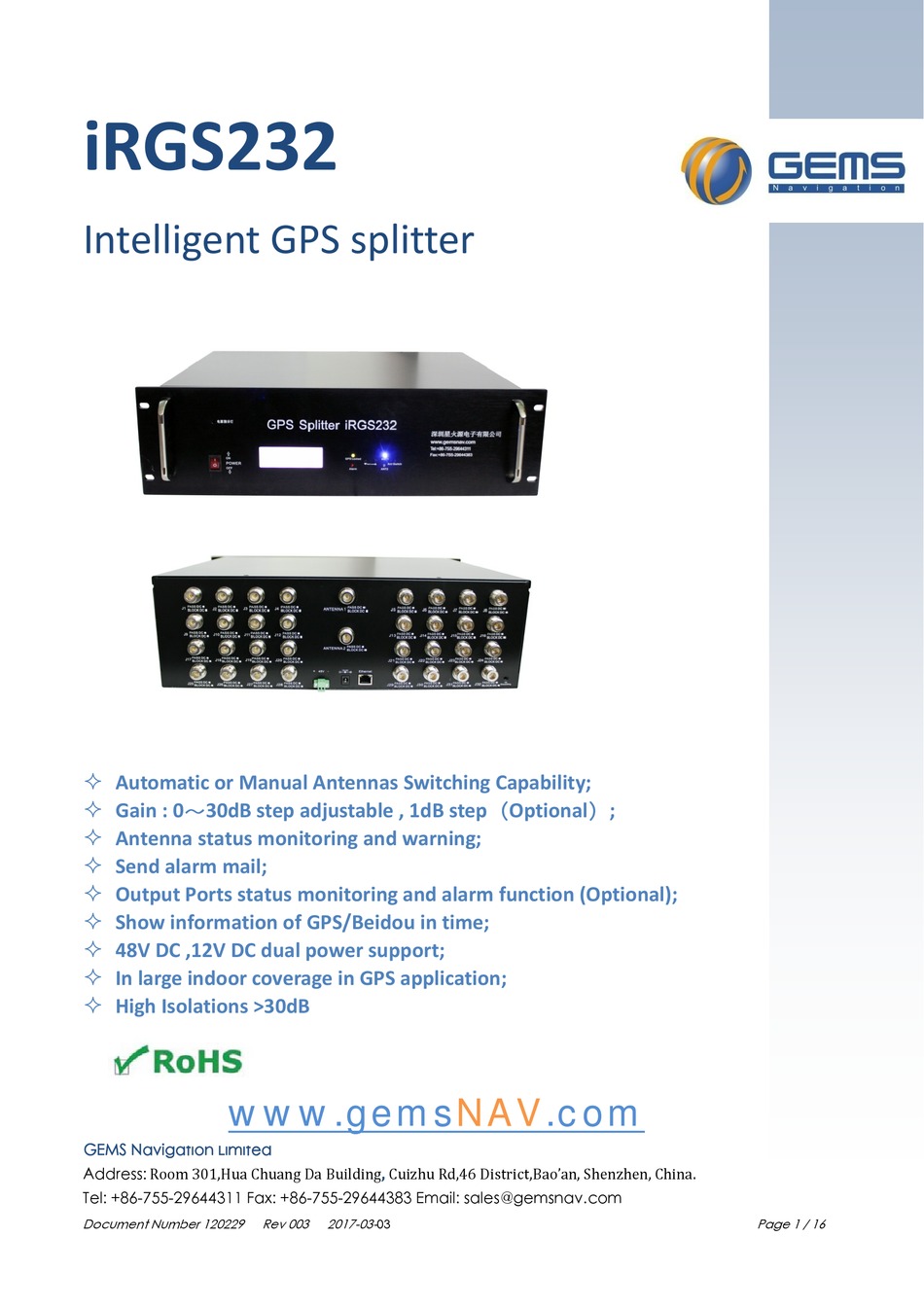

iRGS232
Intelligent GPS splitter
 Automatic or Manual Antennas Switching Capability;
 Gain : 0~30dB step adjustable , 1dB step(Optional);
 Antenna status monitoring and warning;
 Send alarm mail;
 Output Ports status monitoring and alarm function (Optional);
 Show information of GPS/Beidou in time;
 48V DC ,12V DC dual power support;
 In large indoor coverage in GPS application;
 High Isolations >30dB
www.gemsNAV.com
GEMS Navigation Limited
Address:
Room 301,Hua Chuang Da Building
Tel: +86-755-29644311 Fax: +86-755-29644383 Email: sales@gemsnav.com
Document Number 120229



,
Cuizhu Rd,46 District,Bao'an, Shenzhen, China
Rev 003
2017-03-
03


.
Page 1 / 16

Advertisement

loading
Need help?

Need help?

Do you have a question about the iRGS232 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gems iRGS232

  • Page 1     Intelligent GPS splitter     Automatic or Manual Antennas Switching Capability;   Gain : 0~30dB step adjustable , 1dB step(Optional);   Antenna status monitoring and warning;   Send alarm mail;   Output Ports status monitoring and alarm function (Optional);   Show information of GPS/Beidou in time;   48V DC ,12V DC dual power support;   In large indoor coverage in GPS application;   High Isolations >30dB          www.gemsNAV.com  GEMS Navigation Limited Address: Room 301,Hua Chuang Da Building Cuizhu Rd,46 District,Bao’an, Shenzhen, China Tel: +86-755-29644311 Fax: +86-755-29644383 Email: sales@gemsnav.com...
  • Page 2 When entering the GNSS signal system management terminal to set the IP, the software can display the power of  each port, the number of GPS visible satellites and the value of C / No, the number of Beidou visible satellites and the  value of C / No.  This  product  typically  finds  application  where  an  input from  an  active GPS  roof antenna  is  split  evenly between  thirty  two  receiving  GPS  units.  Usually  the  iRGS232  is  configured  with  an  12V  input  (‐48V  telecom  power  input  also  available). In this scenario, the iRGS232 can be configured to pass DC from an RF output to the antenna input port in  order to power an active GPS antenna on that port. Output ports(J2‐J32) would feature a 200 Ohm DC load to simulate  an antenna DC current draw for any receiver connected to those ports.  Redundancy is acquired through the use of a primary antenna and a backup antenna. The ability of the iRGS232 to ...
  • Page 3: Specifications

    Specifications  Electrical Specifications, Operating Temperature ‐20 to 65℃;Storage Temperature ‐30 to 80℃.    Parameter Conditions Units Freq. Range Ant – Any Port Ω In &Out Imped. In, all output ports Gain In- Output ports, Unused Ports - 50Ω terminations 10dB Input SWR All Ports- 50Ω reference 2.0:1 Output SWR All Ports- 50Ω reference 2.0:1 Nois Figure Ant- Any Port, Unused Ports-50Ω...
  • Page 4 The adjacent port and the opposite port refer to:    Port Type(Depending on the placement of the internal power divider) J1、J9、J3、J11 J2、J4、J10、J12 J17、J25、J19、J27 J18、J26、J20、J28 Adjacent Port J5、J13、J7、J15 J6、J14、J8、J16 J21、J29、J23、J31 J22、J30、J24、J32 Opposite Port Which is not adjacent to the port is the opposite port            ...
  • Page 5: Performance Index

    Performance Index        Tel: +86-755-29644311 Fax: +86-755-29644383 Email: sales@gemsnav.com Web: www.gemsnav.com   Document Number 120229 Rev 003 2017-03-03 Page 5 / 16...
  • Page 6 Operation n instruct ions  Open the po wer to access s ANT2, ANT1 1 port antenn na, connect t he network s serial port to  the PC port.    S signal syste em manageme ent terminal” ”software, lo ogin. pen  “GNSS Install and op User:admin Password:a admin   Click on the " "Login" sign o on; "Exit" exit t.        Tel: +86-755 5-29644311 F Fax: +86-755 5-29644383 Email: sales...
  • Page 7   1. User management  File—> User Management          Tel: +86-755-29644311 Fax: +86-755-29644383 Email: sales@gemsnav.com Web: www.gemsnav.com   Document Number 120229 Rev 003 2017-03-03 Page 7 / 16...
  • Page 8 2. Set IP  Set—>IP Set     Tel: +86-755-29644311 Fax: +86-755-29644383 Email: sales@gemsnav.com Web: www.gemsnav.com   Document Number 120229 Rev 003 2017-03-03 Page 8 / 16...
  • Page 9 Setting steps  2. Can see the IP display, double click on  the  IP,  and  then  IP  will  automatically  fill in the "Address IP" column Click “Search”,IP address  displayed  will be      3. Fill in the IP address (step 2  4. Click  "Settings"  and  restart  automatically fill out)    the  software  to  make  sure  your IP PC and device IP are  in the same IP range.    IP set successfully, the network serial port can be used normally.  3. Antenna selection and status display  In the below and to the right of the antennas selection bar for active antenna selection and state, read the "auto"  selected automatically signal the better antenna access, Ant1 is specified using the wire 1 access, ant2 "for the  specified using antenna 2 access, click the" read "read antenna can be seen when using the antenna pattern.       ...
  • Page 10 Active antenna mode select: Select "AUTO" or other antenna patterns Click "Set"  prompt setup is successful, while the unit's front panel LCD displays the antenna pattern used in this case, if you  select "AUTO" mode the unit's front panel "ANT1" bright blue light, select "ANT1" mode is "ANT1" lights up in  blue, select "ANT2" mode "ANT2" lights up in blue, the active antenna selection mode can also be operated in the  front panel buttons, press the button "Ant Switch", can rotate choose from three antenna mode, synchronous  display mode antenna device used in this case on the LCD screen.  Front Pannel:  GPS Status: Light on, Locked; Light off, GPS Lost  ANT1: Light on, Antenna1 is selected  Antenna mode selection: Auto, ANT1, ANT2 ANT2: Light on, Antenna2 is selected    Alarm:  Flashing  red  light  indicates  an  antenna  failure.  (The  antennas were opened or shorted)      "AUTO" mode: automatic selection mode for the antenna when switching to this mode will automatically turn  access antennas 1 and 2 compare the signal strength and then select a better signal antenna access. In this mode    the device automatically switches the antenna will be delayed.   Display screen:  Ant: Auto, Antenna automatic switching mode; ANT1  or ANT2 specified antenna access mode COM: OK, Network serial port connected to normal;  NG, Network serial connection abnormal GPS and BEIDOU information interface     Tel: +86-755-29644311 Fax: +86-755-29644383 Email: sales@gemsnav.com Web: www.gemsnav.com   Document Number 120229 Rev 003 2017-03-03...
  • Page 11 Back pannel:    Console VIA ethernet    ANT2: Connect to the second GPS/GNSS antenna ANTI: Connect to the first GPS/GNSS antenna     Power: Dual power supply design, power supply 48V DC and 12V DC power supply support, to choose from, such as  access to work when the 48V power supply, the 12V power supply is not access; while 48V and 12V power supply  has reverse polarity protection, namely when the power is negative reversed, the device will not burn, it has a    protective function.   12 V DC      48V DC ‐ 48V DC +   Tel: +86-755-29644311 Fax: +86-755-29644383 Email: sales@gemsnav.com Web: www.gemsnav.com   Document Number 120229 Rev 003 2017-03-03 Page 11 / 16...
  • Page 12 Power Connecting:   ‐48V DC:   ‐48v connect to ‐;   GND connect to +;   +48V DC:   +48V connect to +;   GND connect to ‐;   12V DC  Warning: Do not connect to the power supplies (48V and 12V) at the same time.  4. Antenna operation status display  At the top left of the interface of the software, input port status bar for the antenna operating status,  real‐time displaying the access for which antenna and access antenna operation and state representation bar  sketch for antenna operating status, Green said normally, red represents a short circuiting, Black said the  road.    If the antenna open or short circuit, the front panel of the machine GPS Locked green light is off, Alarm red light  flashes to indicate alarm, PC‐side reading antenna operating state shorted or opened.                      Tel: +86-755-29644311 Fax: +86-755-29644383 Email: sales@gemsnav.com Web: www.gemsnav.com   Document Number 120229 Rev 003 2017-03-03...
  • Page 13 5. GPS Information  GPS information bar graph for the received satellite signal real‐time display and the right edge of the chart  three options "GPS L1 only" to show only the GPS L1 satellite signal chart, "Beidou2 B1 only" to show only the  compass B1 satellite signal chart, "mixed mode" for the two charts show. (The abscissa represents the  satellite signal, and the ordinate represents the intensity of the received satellite signal).      6. Send alarm mail  (1) E‐mail settings  Use Outlook as a sending mailbox, you need to allow the device and  application to use the "POP" function, set the mailbox "POP" function, check  "yes" and save the settings.              Tel: +86-755-29644311 Fax: +86-755-29644383 Email: sales@gemsnav.com Web: www.gemsnav.com   Document Number 120229 Rev 003 2017-03-03 Page 13 / 16...
  • Page 14 (2) Client mail settings  Go to "Mail Settings" Click "Edit"  E‐mail address: Send the email address of the message;  Mailbox password: Mailbox login password;  Mail server: smtp‐mail.outlook.com;  Port: 25;  Recipient address: The email address of the incoming mail;  Content format: Can edit the contents of the message;  Whether to enable mail click check, click "Save" mail settings are complete.    (3) Functional demonstration  After the setup is complete, the client will automatically send the mail to the  receiving  mailbox  when  the  device  port  is  faulty,  such  as  when  the  current  input antenna is open, shorted or output is powered on and shorted.      Tel: +86-755-29644311 Fax: +86-755-29644383 Email: sales@gemsnav.com Web: www.gemsnav.com   Document Number 120229 Rev 003 2017-03-03 Page 14 / 16...
  • Page 15 Mailbox  sometimes  intercepts short messages, please set up a collection of mailboxes white list, in  the mailing mailbox to set the mail box to set the mailbox, to prevent the alarm  message mistakenly blocked.      Order Informations And Available Options      iRGS232    Part Number:    Standard    Gain Options:    Blank (Standard)‐0dB    Axx‐xx=01‐31, Desired Gain Level ...
  • Page 16 Mechanical          Frequency reference table:    Gllobal/Compass Navigation Satellite Systems(GNSS/CNSS) Frequency (MHz) 2491 1176 1192 1252 1268 1278 1561 1609 1207 1227 1545 1575 L2/L2C+/-12 GPS(USA) L1,L2,L2C,L5 L5+/-12 L6+/-5 L1+/-12 Glonass(Russia) G1,G2 G2+/-7 G1+/-7 Galileo(Europian) E5+/-15 E6+/-12 L6+/-5 L1+/-17 L1,E1,E2,E5(E5a,E5b),E6 E5a+/-12 E5b+/-12 Compass (Beidou 2,China)
