Summary of Contents for Storm Audio ISP Elite MK3

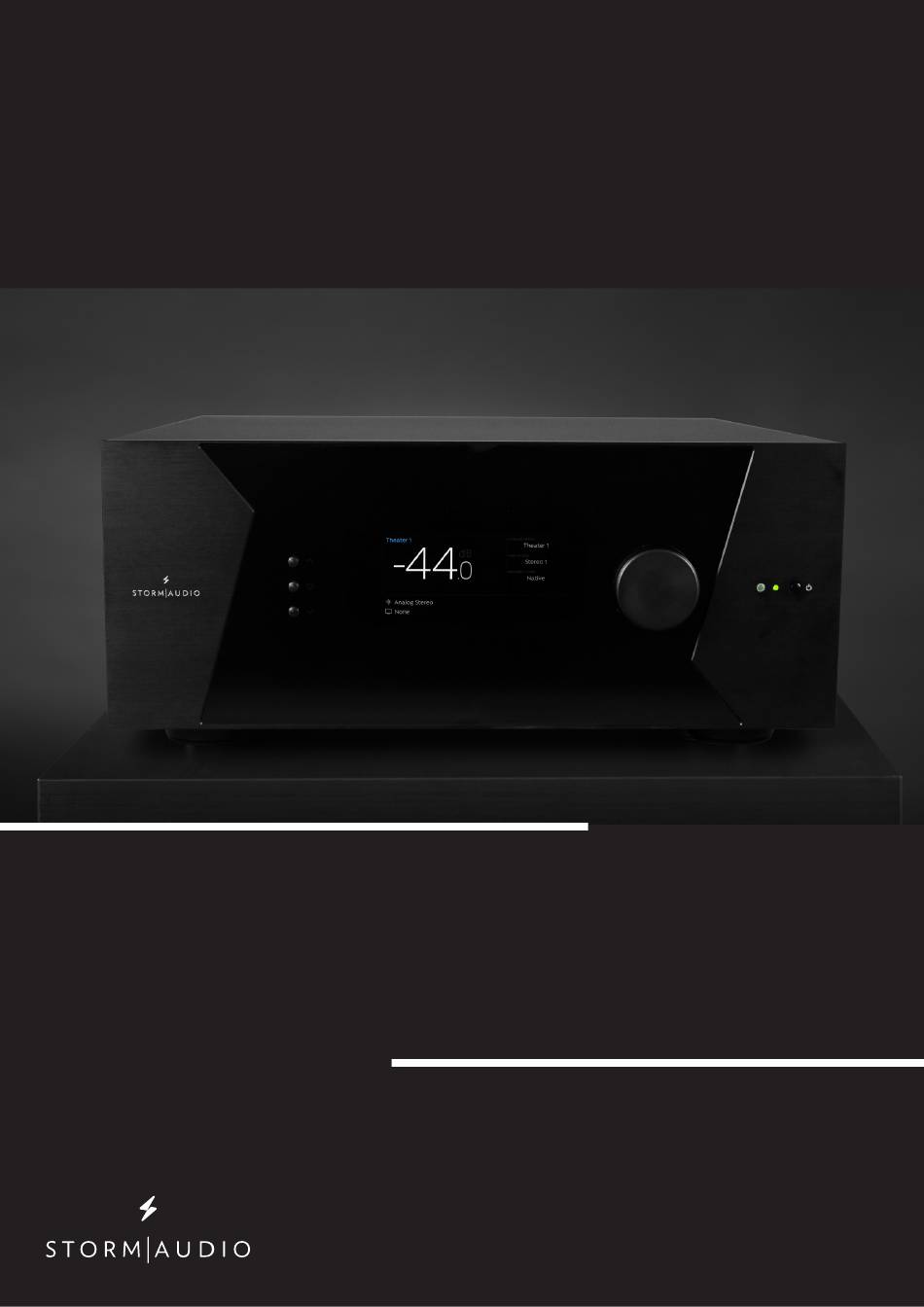

- Page 1 QUICK START GUIDE ISP ELITE MK3 ISP.16/24/32 Analog, ISP.32 Digital Immersive Sound Preamp/Processor VERSION 1.0 Last updated: February 2022...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS The book with exclamation mark symbol is intended to alert user that it is recommended to read this owner manual before installing and powering up the product. The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage “... -
Page 3: Terms Of Warranty
WARRANTY Liability The legal guarantees of conformity under no circumstances cover any damage arising from accidents, misuse or an assembly error, negligence or considerable modification of the appearance or functioning of the product. Immersive Audio Technologies reserves its right to refuse any return for a damaged product on account of misuse. -
Page 4: Specifications
SPECIFICATIONS Specifications Control Audio Control Modules Audio Formats up to 24ch (13.1.10), 192 kHz Crestron and Crestron Home Dolby Atmos with Enabled Control4 Speakers, DTS:X Pro, IMAX Enhanced*, Auro3D Savant All Legacy codecs ELAN StormXT Front panel sensor SphereAudio for Rear panel I/O, jack 3.5mm headphones DC Trigger... -
Page 5: Before Starting
BEFORE STARTING Welcome Owner Manual access Thank you for choosing a StormAudio Immersive This document covers a basic setup. For a complete Sound Preamp/Processor. This guide provides step- and exhaustive configuration of your product, we by-step instructions for quickly setting up your ISP to recommend you to consult the full Owner Manual : meet a basic Theater configuration. -
Page 6: Panels Overview
1 - PANELS OVERVIEW 1. Standby button 7. HDMI In & Out 13. Digital Inputs, Optical 17. Channels 1 to 16 and Coaxial Balanced Outputs 2. Down button 8. AC Inlet 14. Unbalanced Analog 18. Available slots for 3. Home/Acces button 9. -
Page 7: Inputs Configuration
3 - WEB USER INTERFACE ACCESS 4. When the Home display screen is shown, press the Select button (rounded square) to access the Adjustment Menu. 5. Using the Arrow button, access the Settings and press the Volume knob to Validate. 7. - Page 8 5 - THEATER DEFINITION (1/2) In this part, we will cover the configuration of the Also, we will consider multiple rows of surround speakers in the installation. As systems might easily speakers as well as multiple subwoofers. get complicated, the Quick Guide will only focus on a If you need a different configuration to the one basic use case where full bandwidth passive speakers explained here, we invite you to refer to the Owner...
- Page 9 5 - THEATER DEFINITION (2/2) Adjust the Bass Management Once configured, the Theater is presented in Edition Subwoofer. Large will maintain full bandwidth, mode. In this Quick Guide we will only consider the while «Large and Sub» will also direct the Bass to Standard Bass Management setup: the subwoofer channel.
-
Page 10: Output Mapping
6 - OUTPUT MAPPING 1. If the physical connections are different from the default proposed mapping defined in the configuration (section 5), you can access the Output Mapping feature in the Main Speakers tab and selecting Output Mapping button. 2. Change the channel assignment by inputting the correct channel in New Output. - Page 11 8 - REMOTE CONTROL Independent Remote Control Power ON Power OFF The IR control unit operates effectively within a Control front panel Show the stream distance of 23 feet (7 meters) and an angle of 30° from display mode information the processor.
-
Page 12: Weee Notice
REGULATIONS FCC and IC compliance notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 13 ACKNOWLEDGEMENTS DTS® is a registered trademark of DTS, Inc. Dolby® is a registered trademark of Dolby Laboratories. Auro-3D® is a registered trademark of Auro Technologies. All other trademarks are the properties of their respective owners. Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.
- Page 14 StormAudio | Immersive Audio Technologies 8 rue de la Rabotière | 44800 Saint-Herblain | France Version 1.0 10-02-2022...
