Challenger Spirit Quick Start Manual

CHALLENGER SECURITY PRODUCTS
UNIT 2 /4 ARKWRIGHT COURT
FYLDE IND ESTATE BLACKPOOL
LANCASHIRE FY4 5DR TEL 01253 792898 TECHNICAL

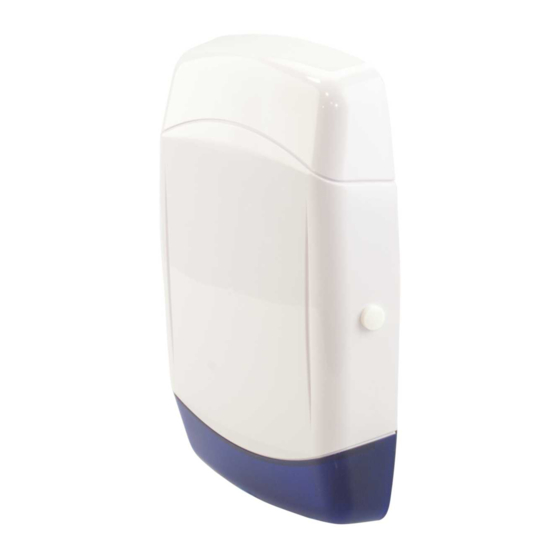

The Challenger "Spirit" is a high quality external combined sounder and
strobe unit. Features include a digital timed SAB with dual fail safe action, a
high efficiency Piezo sounder and an integral high intensity double lens
strobe.

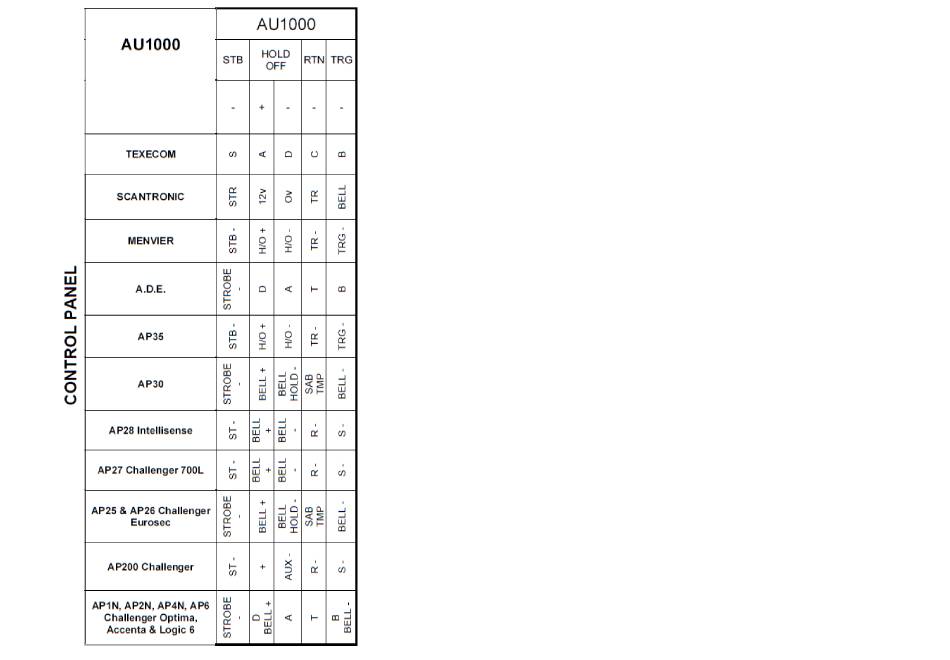

Technical Description of the SPIRIT
+ This requires a constant 12V and 0V from the control panel
HOLD OFF This "HOLDS OFF" the piezo siren in normal operation.
- It also allows the battery to be trickle charged
STB - Provides an output from the control panel to flash the strobe and is
independent of the sounder inputs.
TRG - In normal operation this activates the sounder only when a Negative
Trigger is applied by the control panel.
PIEZO Provides the siren output to drive the piezo sounder
RTN - In normal operation this supplies a permanent signal to the control panel as
part of the 24 hour tamper loop
MICRO This is for N/C Tamper switches, which form part of the 24 hour tamper
SWITCH circuit
BAT Battery Link. After completing all connections this link must be moved to
the ON position before fitting the bell box cover.
This enables charging of the battery and correct function of the SPIRIT.
SAB Self activating bell ( use for primary sounder )
SCB Self contained bell ( use for secondary sounder )
Note: Isolate strobe before removing the cover ( HIGH VOLTAGE )
