HD78F
Event-Driven Indoor Security
IP Camera/Detector
with HD Audio
Installation Manual
**Compatible with Insite GOLD
and SWAN Server**
Introduction

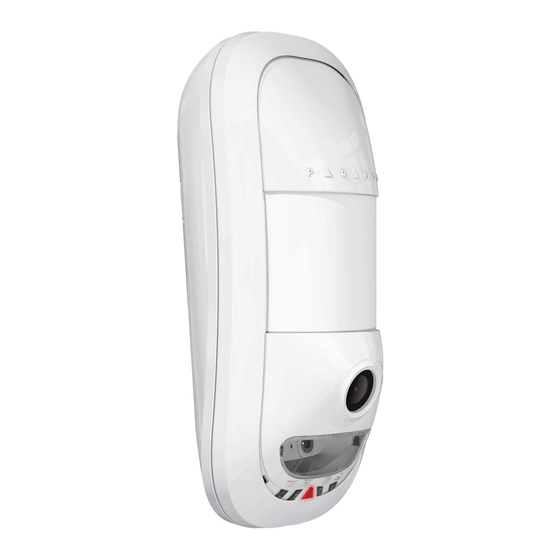

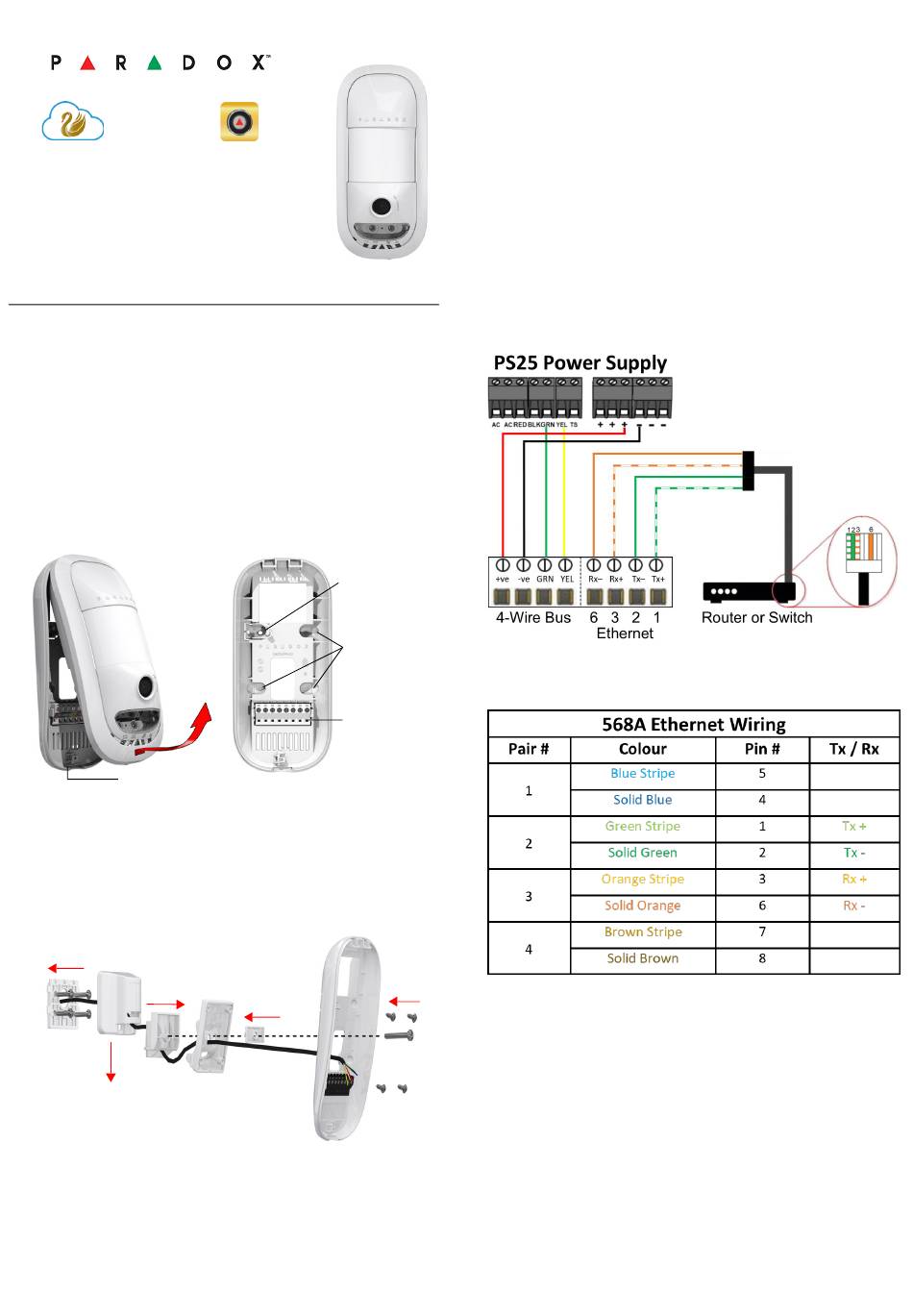

The HD78/F Event-Driven Indoor Security IP Camera combined
with its Security Detector provide a video/audio solution for
Paradox security systems. It provides day/night vision at 720P
and Hi-Fi audio recording, with 30 minutes of internal event
recording capacity. The HDB7 wall bracket is an optional
accessory.
Installing the HD78
Unlock and
remove cover
Lock
HDB7 Wall Bracket Installation
1
3
2
Mount back on wall
or bracket
Anti-Tamper
Spacer
Drill Out
Holes
Terminal
Block
5
4
Power Requirements
It is recommended to use the PS25 power supply module that is
capable of powering a maximum of 5 x HD78's.
HD78F Ethernet Wiring
Connect the HD78 camera with a CAT5e or better cable using
pairs 2 & 3 (pins 1,2,3,6). The maximum cable length is 50 meters.
HD78F Bus Wiring
Connect the PIR with a 4-core 14/0.20 cable or better.
- 1 -
