High-Current Demarcation Panel
Installation Guide
009-7001-0104B-TFD
Applies to: 009-7001-0104B & 009-7001-0104B-TFD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 009-7001-0104B and is the answer not in the manual?

Questions and answers

Summary of Contents for Amphenol Telect 009-7001-0104B

  • Page 1 High-Current Demarcation Panel Installation Guide 009-7001-0104B-TFD Applies to: 009-7001-0104B & 009-7001-0104B-TFD...

  • Page 2: Table Of Contents

    Fig. 1: Model 009-7001-0104B-TFD (UL Listed, File E139903) ............... 4 Fig. 2: Removing blank covers from model 009-7001-0104B ................7 Fig. 3: Installing circuit breakers and TFD fuse holders on model 009-7001-0104B......... 8 Fig. 4: Bracket orientation ..........................9 Fig. 5: Rack mounting ............................ 9 Fig.
  • Page 3 Installation Guide, Part Number 146161-3 A0 Copyright 2019, Amphenol Network Solutions, All rights reserved. Amphenol Network Solutions 22425 East Appleway Ave. # 11 Liberty Lake, WA 99019 Amphenol Network Solutions assumes no liability from the application or use of these products. Amphenol Network Solutions does not convey any license under its patent rights nor the patent rights of others.

  • Page 4: Overview

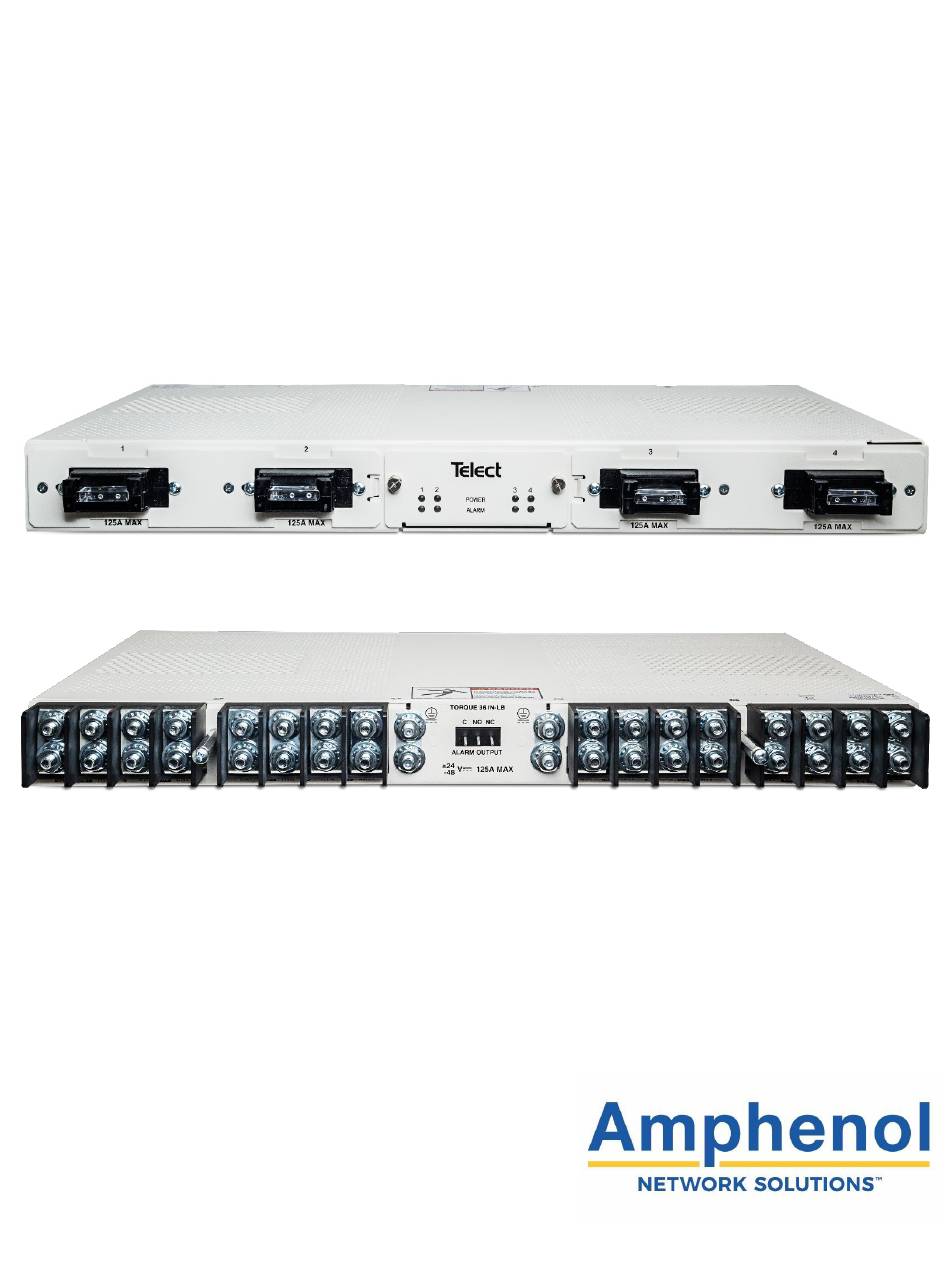

    1.1 Overview The Amphenol Network Solutions 009-7001-0104B demarcation fuse panel with alarms provides TPS/TLS fuse or circuit breaker protection at the equipment interface. The low-profile, white panel supports four TFD fuse holders or circuit breakers, a replaceable alarm card containing power and alarm LEDs, alarm contact relays, rear-access terminals and wire-wrap alarm relay contacts.

  • Page 5: Specifications

    1.75" (4.4 cm) Depth: 10.4" (26.4 cm) Weight: Specification: Weight, shipping ~11 lbs. (~4.5 kg): 009-7001-0104B ~12 lbs. (~5 kg): 009-7001-0104B-TFD Environment: Specification: Operating temperature -5°C (23°F) to 55°C (131°F) NOTE: Wire sizes are recommended based on generally available lug sizes. Ensure wire sizes meet amperage requirements per NEC.

  • Page 6: Installation

    • part numbers are shown on page • For safety, install blank covers over all unused fuse positions on model 009-7001-0104B. Amphenol Network Solutions recommends that circuit breakers or fuse holders — without fuses — be • installed prior to mounting the panel on the rack. Amphenol Network Solutions recommends not mixing circuit breakers and TFD fuse holders in the same panel.

  • Page 7: Installation Procedure

    Fig. 2: Removing blank covers the other. from model 009-7001-0104B ALERT! You can install fuse holders backwards. Observe the LINE and LOAD designations on the panel vs. the designations on the fuse holders.

  • Page 8: Fig. 3: Installing Circuit Breakers And Tfd Fuse Holders On Model 009-7001-0104B

    LINE & LOAD designations are on the top of TFD fuse holders on THIS side of the panel. Fig. 3: Installing circuit breakers and TFD fuse holders on model 009-7001-0104B High-Current Amphenol Network Solutions All rights reserved. 12.17.19 146161-3 509.926.6000 — amphenol-ns.com.com...

  • Page 9: Fig. 4: Bracket Orientation

    3. If necessary, to move or replace the 19-inch brackets, remove three screws on sides of breaker panel, as shown in Fig. 4. One of Seven Sets of Rack Bracket Mounting Holes for 4. Install 19-inch or 23-inch brackets for flush Extending Front of Panel in 1- inch increments or extended panel presentation on rack.

  • Page 10: Fig. 7: Input/Output Lug Connections

    13. Clean the terminals with a nonabrasive, nonmetallic pad. 14. If required, lightly coat antioxidant on lugs and input terminals and then connect lugs to input terminals on back of panel. Tighten lugs to 36 in/lb. (4 N•m). 15. Before installing breakers and output wiring, turn power on to verify input power and indicators: Verify input voltage and polarity...

  • Page 11: Replacing Alarm Cards

    a. Expect an open circuit (∞Ω) between Terminals C and NO (see Fig. 10). The ALARM CUTOFF LEDs should not be lit. NOTE: Under normal conditions, that is, with power on and fuse installed, expect an open circuit (∞Ω) between Terminals C and NO on the rear of the demarcation panel.

  • Page 12: Accessories

    1.6 Accessories Item Description Part Number Alarm card, Demarc ACO PWR ON / ALARM LEDs 400774 TFD fuse holder 25-125A with bullet-style 129816 connectors for TPS/TLS fuses Item Description Part Number TPS fuses 130481 130485 130487 130489 130476 130478 130482 130484 130486 130488...

  • Page 13: Compression Lugs

    1.7 Compression Lugs ALERT! Only use components and crimping tools approved by agencies or certifying bodies recognized in your country or region such as Underwriter’s Laboratories (UL), TUV, etc. Table 1 – Lugs (support dual 1/4-20 studs, 5/8" C-C) #8 AWG #6 AWG #4 AWG #2 AWG...

  • Page 14: Reference Schematic (1 Of 4 Circuits)

    1.8 Reference Schematic (1 of 4 Circuits) * Switch is shown in normally open position. High-Current Amphenol Network Solutions All rights reserved. 12.17.19 146161-3 509.926.6000 — amphenol-ns.com.com Demarcation Panel...

  • Page 15: Dimensions

    1.9 Dimensions Notes: 1. Dimensions are in inches (millimeters) 2. Fuse holders and fuses are not supplied 3. Max. lug width: .685" 4. Hole spacing: 1/4-20 on .625" centers Front View Top View Rear View Rotated & shown without terminal covers High-Current Amphenol Network Solutions All rights reserved.
