CleanCUBE

User Manual V2.10

This user manual is for CleanCUBE 2 manufactured

May 2020 or later.

The product's serial number consists of 10 alphanumeric characters with the first six

showing the manufacture date.

Example: 201101AA00 (Nov 1, 2020)

Please read through this manual carefully before installing and using the product to prevent

any

Table of Contents

Need help?

Do you have a question about the CleanCUBE 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ecube Labs CleanCUBE 2

Page 1 The product’s serial number consists of 10 alphanumeric characters with the first six showing the manufacture date. Example: 201101AA00 (Nov 1, 2020) Please read through this manual carefully before installing and using the product to prevent injury or damage. Copyright © 2020 Ecube Labs Co., Ltd.
Page 2 This user manual is provided for informational purposes only. All information included herein is subject to change without notice. Ecube Labs makes no warranty of any kind with regard to this user manual, either expressed or implied, except as provided herein, including without limitation, thereof, warranties as to marketability, merchantability, fitness for a particular purpose of use or against infringement of any patent.
Page 3: Table Of Contents
Table of Contents 1. Introduction 2. General Safety Information 2.1 Safety Information 5 2.2 Precautionary Safety Information 5 3. Product Information 3.1 Product Components 6 3.2 Safety and Protection Features 7 3.3 Product Status Indicator 7 4. Transportation and Selection of Installation Site ...
Page 4: Introduction
Thank you for purchasing CleanCUBE! Ecube Labs is a startup committed to develop tech-based solutions to improve efficiency and sustainability in the waste management industry. Our company is constantly striving to develop solutions and products that possess innovative designs and features that meet the requirements of our users all around the world.
Page 5: General Safety Information
2.2 Precautionary Safety Information To ensure user safety when using the product, you must follow the following safety rules: Consult Ecube Labs before making any modifications to CleanCUBE or its operating environment. • Sudden or careless modifications could result in death or serious injury and in malfunction or operational failure of CleanCUBE.
Page 6: Product Information

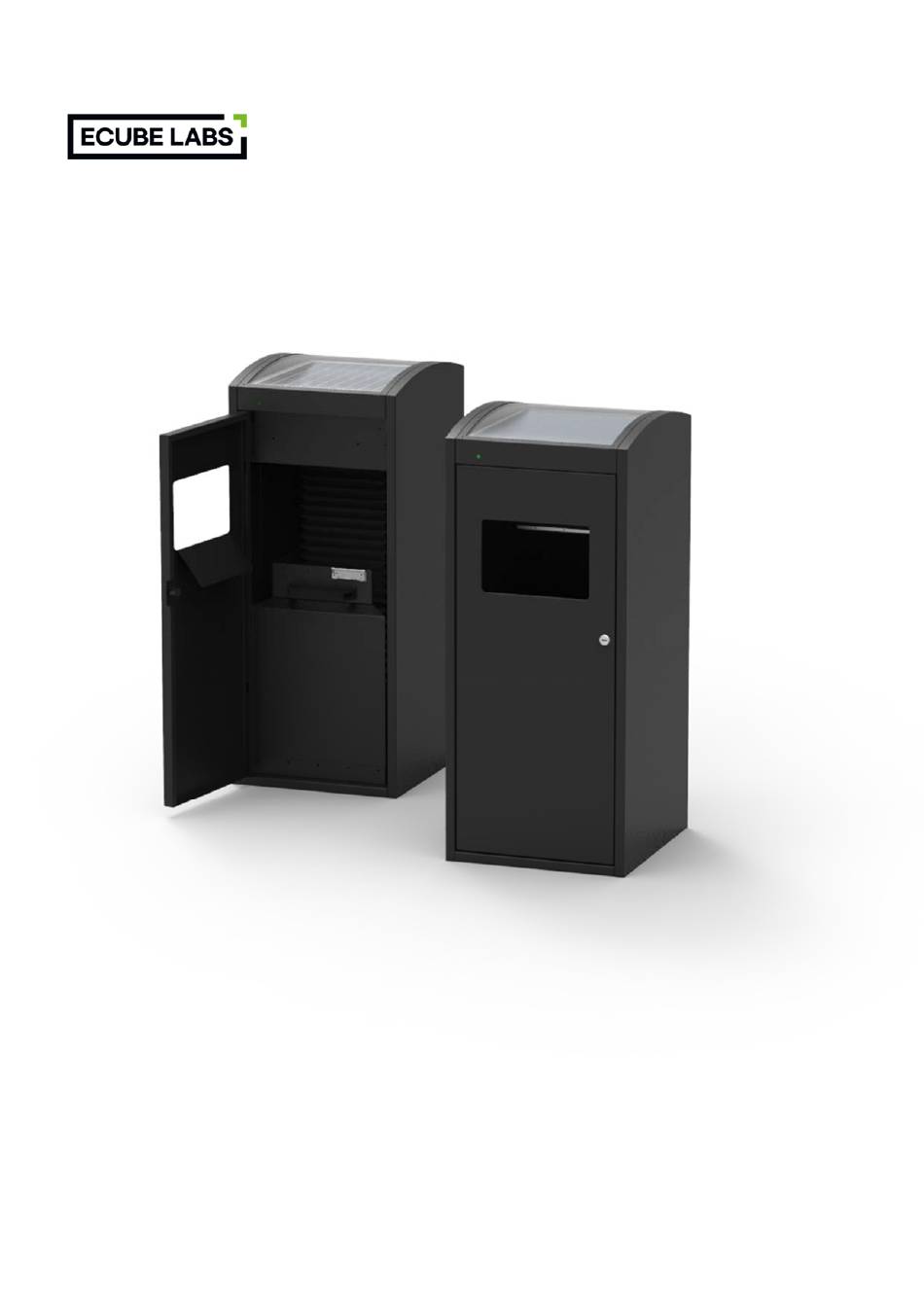

3. Product Information CleanCUBE is a solar-powered waste bin that uses an automatic on-site compactor to increase its waste capacity by up to 500%. utilizing intelligent sensors, CleanCUBE monitors waste fill-level and operational status and provides this information to the user through CleanCityNetworks (CCN).
Page 7: Safety And Protection Features
3.2 Safety and Protection Features CleanCUBE is designed with several safety features to protect the user and service personnel while using the product. These safety features are: Safety sensors on both sides of aperture: these sensors detect objects or hands passing •...
Page 8: Transportation And Selection Of Installation Site
4. Transportation and Selection of Installation Site 4.1 Initial Inspection Upon receiving your CleanCUBE, perform a visual inspection of the packaging before accepting the delivery from the shipping company. If the packaging appears to be damaged or in poor condition, unpack the unit and inspect it for possible damages in front of a representative from the shipping company.
Page 9 Ensure that the forks are placed fully through the pallet before lifting. • After lifting the unit, do not make any sudden movements that may cause the unit to fall off the • forklift. After transporting the unit to the designated location, gradually lower the unit to the ground. •...
Page 10: Selection Of Installation Site
4.3 Selection of Installation Site To facilitate installation and minimize installation time, we recommended selecting a site for the unit before its installation. When selecting a site, consider the following factors for the unit’s optimal performance: Select an open site such that sunlight can hit directly above the unit. There should be no obstructions •...
Page 11: Installation And Initial Operational Inspection
5. Installation and Initial Operational Inspection 5.1 Levelling CleanCUBE has four adjustable feet that can be used to level itself on slightly uneven or sloped installation sites. After installation, if the unit is tilted or slightly leaning to one side, use the adjustable feet to stabilize the unit in an upright position.
Page 12: Connecting The Battery
Using excessive force to tilt the unit may make it difficult to support the tilted position and cause it to tip over. Failure to level the CleanCUBE may result in an unstable unit, which may potentially lead the unit to tip over and cause injury or damage. 5.2 Connecting the Battery The CleanCUBE is typically shipped with its battery installed and connected.
Page 13: Turning The Power On
After receiving the product, please make sure to charge the battery (via solar or AC). Long-term storage of the product without use may discharge and kill the battery. If necessary, please contact the manufacturer for assistance. When it is time to replace the battery, get assistance from the manufacturer. Inappropriate battery use may affect the product’s performance.
Page 14: Initial Operational Inspection
After installing the battery please follow the instructions below to turn on the product. Open the front door and then open the top cover. Locate the ON/OFF switch and turn the unit ON. Wait 1~2 minutes for the status indicator light to turn on (system is booting). When the status indicator light flashes green quickly, wait another 1~2 minutes (communicating).
Page 15: Inner Bin Use
6.1 Inner Bin Use The inner bin must be placed inside the CleanCUBE and the bag must fit appropriately for the product to operate normally and measure the bin’s fill-level accurately. If you are using an inner bin (wheelie bin) that was not provided by the manufacturer, obtain the manufacturer’s assistance when placing the inner bin inside the CleanCUBE.
Page 16: Waste Collection
6.2 Waste Collection Please follow the instructions below to collect waste from the product: Use your key to unlock and open the front door (be sure that the unit is not performing a compaction when opening the door). Pull out the product’s inner bin (or wheelie bin) and empty it. The waste bin (inner bin) containing compacted waste may be 3~6 times heavier than non-compacted waste.
Page 17: Quarterly And Annual Maintenance
If you clean the product interior with high water pressure, the water may reach the product’s electronics and cause a malfunction. 6.4 Quarterly and Annual Maintenance After installing CleanCUBE, quarterly maintenance checks are recommended. Here is a checklist: Check that the locking device on the front door is operating appropriately. Check the levelling of the unit and change the adjustable feet as necessary.
Page 18 • Consult the dealer or an experienced radio/TV technician for help. Part15.21 statement Changes or modifications not expressly approved by the manufacturer (or party responsible) for compliance could void the userʼs authority to operate the equipment This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1)this device may not cause interference, and (2) this device must accept any interference, including interference that may cause...
