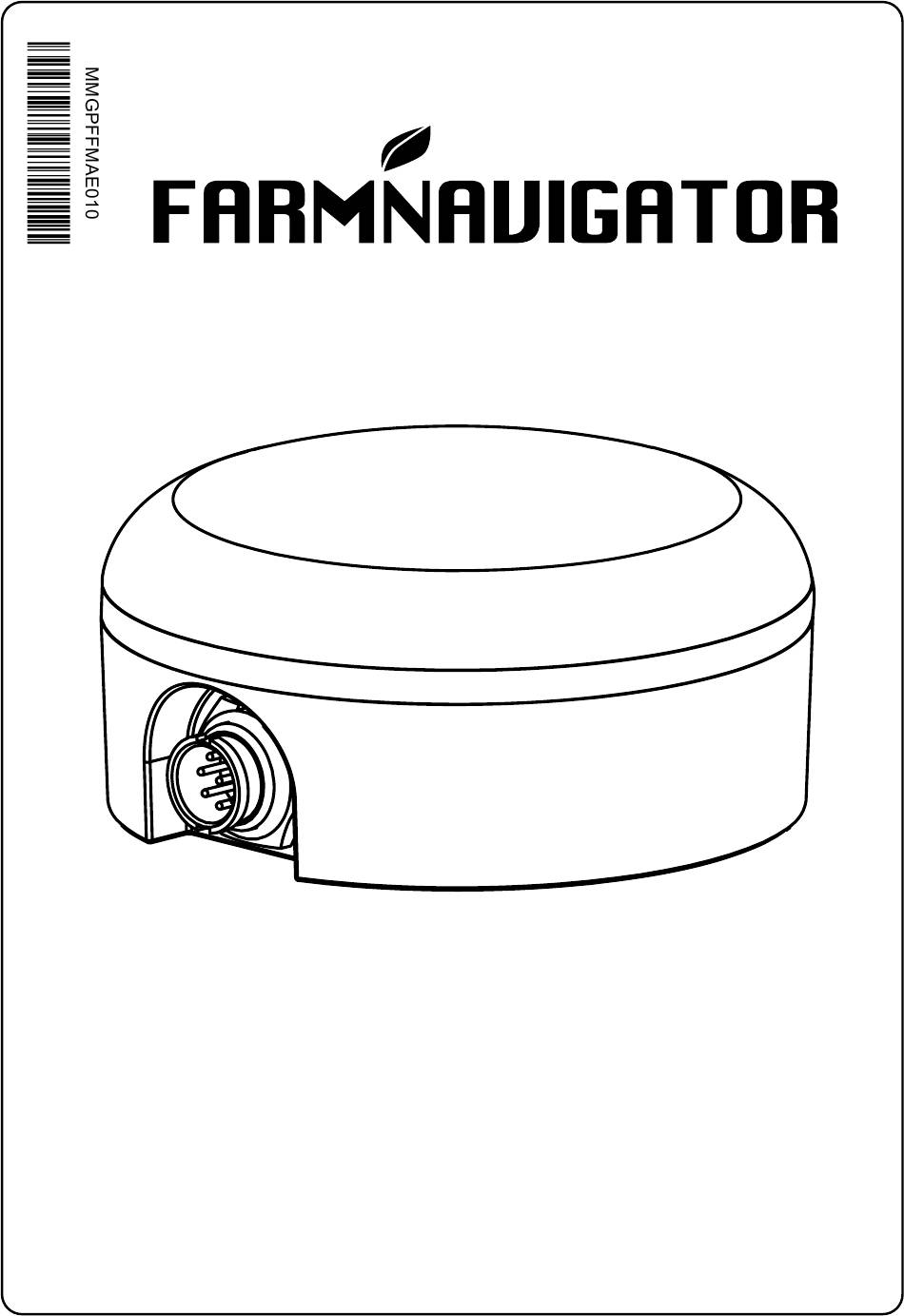

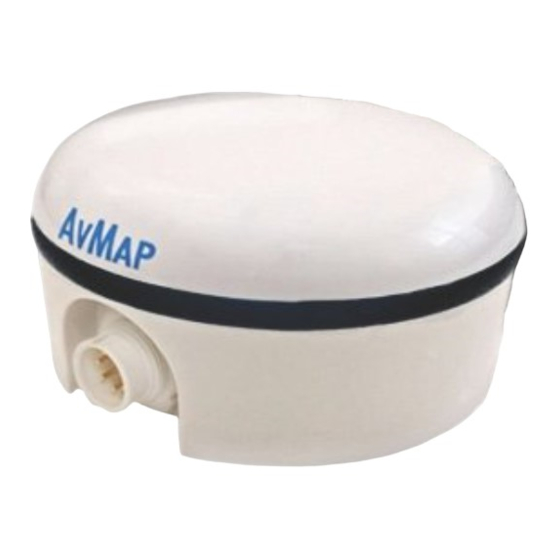

- Page 1 GNSS RECEIVERS INSTALLATION MANUAL...
-
Page 2: Technical Specifications
1. Technical specifications • Dimensions: ᴓ 98 mm x H 50 mm • Storage Temperature: -30 °C / +80 °C • Weight: 240 g without power cable • Waterproof: IP67 • Supply voltage: 10-35 Vdc • RS232 baud rate: configurable •... - Page 3 2. How to properly install the receiver on the tractor In order to achieve the highest accuracy, the receiver must be installed following the instructions below. This is requested for models embedding a fully inertial platform able to provide accurate dynamic vehicle information and precise terrain compensation (Turtle PRO2, Turtle RTK, 1MINUTE RTK).
- Page 4 3. How to use the receiver with Farmnavigator products Connect the power cable to the Farmnavigator’s "GPS Antenna" connector and you are ready to use your receiver. Follow the instructions available in the Farmnavigator's user manual in order to check the satellite signals on your G7 Farmnavigator.
- Page 5 4. How to use the receiver with third-party devices The receiver can be used with any third-party device compatible with serial communication and NMEA 0183 messaging (RS232 protocol). 4.1 Third-party devices connection scheme To connect the receiver to a third-party device, simply connect your device to the DB9 connector end of the power cable according to the Pin-Out presented below.
- Page 6 Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Czech Republic, Romania, UK, Spain, Slovakia, Slovenia, Sweden, Switzerland. Contact support@avmap.it for info about Internet services in other countries. C. NTrip client The NTrip Client is the software element used by the receiver to get the RTK correction...
-
Page 7: Simplified Eu Declaration Of Conformity
5. Simplified EU declaration of conformity Hereby, AvMap Srlu, Viale Zaccagna 6, 54033 Carrara (MS), Italy declares that the radio equipment in the following table is in compliance with Directive 2014/53/EU. Turtle SMART UX0GTG20AM, UXAGTG20AM Turtle PRO2 UX0GTG31AM, UXAGTG31AM Turtle RTK... - Page 8 AvMap Srl v.le Zaccagna 6, 54033 Carrara (MS), Italy www.avmap.it support@avmap.it www.farmnavigator.com...
