Installation and Operating Manual

Data protocol converter

Gateway WEM-KNX

83320602 ▪ 1/2021-02

Table of Contents

Need help?

Do you have a question about the WEM-KNX and is the answer not in the manual?

Questions and answers

Summary of Contents for Weishaupt WEM-KNX

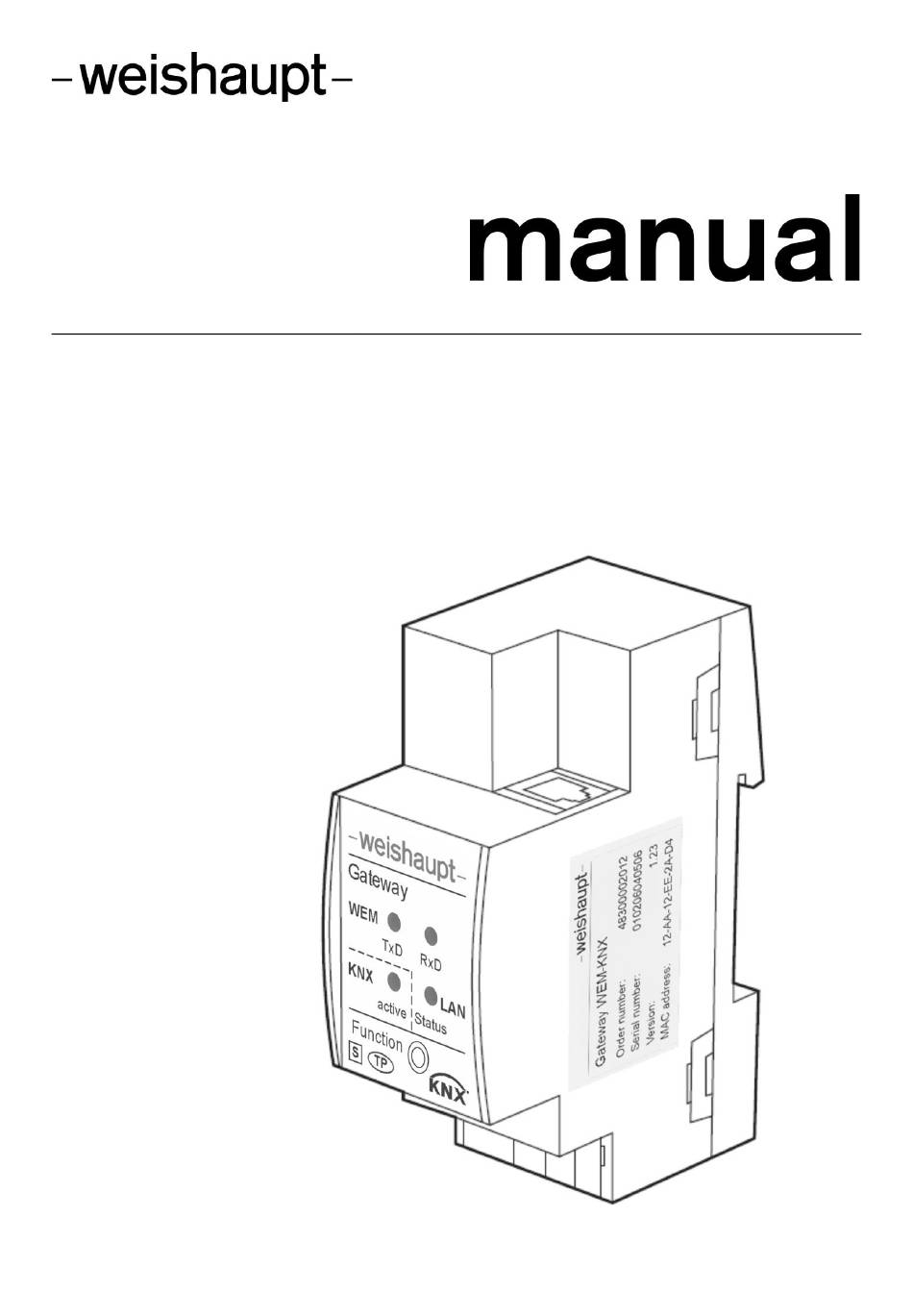

Page 1 Installation and Operating Manual Data protocol converter Gateway WEM-KNX 83320602 ▪ 1/2021-02...
Page 2: Table Of Contents
Installation and Operating Manual Data protocol converter Gateway WEM-KNX User notes ........................5 1.1 Target group ....................... 5 1.2 Symbols ........................5 1.3 Warranty and Liability ....................6 Safety ......................... 7 2.1 Proper use ........................7 2.2 Security measures ...................... 7 2.3 Disposal ........................
Page 3 Installation and Operating Manual Data protocol converter Gateway WEM-KNX 7.5.1 Access via IP network, IP address and MAC address ........27 7.5.2 WEM system table ....................27 7.6 Firmware update ....................... 28 7.7 Programming mode ....................29 7.8 Reset the device ....................... 29 Commissioning ......................
Page 4 Installation and Operating Manual Data protocol converter Gateway WEM-KNX 4-36 83320602 ▪ 1/2021-02 ▪ Ext. PHauner...
Page 5: User Notes
The notes in the corre- sponding sections must be observed. It is supplemented by the short manual for the WEM-KNX Gateway. 1.1 Target group This operating manual is intended for operators and qualified specialists. It must be ob- served by all persons who use the device.
Page 6: Warranty And Liability
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 1 User notes 1.3 Warranty and Liability Warranty and liability claims for personal injury and property damage are excluded if they are due to one or more of the following causes: ▪...
Page 7: Safety
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 2 Safety 2 Safety 2.1 Proper use The gateway is intended for DIN rail assembly and installation in a control cabinet (plus applicable regulations) as well as continuous operation together with a KNX power sup- ply.
Page 8: Product Description
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 3 Product description 3 Product description The WEM system consists of several different devices (WTC, SG, etc.), hereinafter re- ferred to as WEM devices. Each of these WEM devices contains one or more modules (module 1, module 2, etc.).
Page 9: Technical Specifications
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 4 Technical specifications 4 Technical specifications 4.1 Supply Input voltage 21...30 V DC SELV Current consumption < 20 mA 4.2 Housing Dimensions (HxWxD) 90 x 36 x 71 mm Mounting (IEC60715)
Page 10: Assembly And Disassembly
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 5 Assembly and disassembly 5 Assembly and disassembly The device is intended for the DIN rail assembly in distribution boxes. Only mount on suitable top-hat rails (TH35) and use a suitable tool according to IEC60715 for assembly.
Page 11: Installation
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 6 Installation 6 Installation Procedure ▶ Mount the device on the rail. ▶ Connect the gateway to the IP network with an Ethernet cable. ▶ Strip the wires of the bus cable and equip them with a KNX terminal for TP.
Page 12: Operation
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 7 Operation 7 Operation 7.1 Control elements LED display Buttons / connectors WEM TxD Ethernet/IP socket WEM RxD Function button KNX active Programming button LAN status KNX TP connector Programming LED 7.2 LED display (normal operation)
Page 13: Configuring With Ets
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 7 Operation 7.3 Configuring with ETS The ETS can be used to configure the gateway, its connection settings and the WEM/KNX data conversion. For this purpose, the "Bus Router" application is available as an ETS database and devices of the WEM system can be searched in ETS.
Page 14: Ets Parameters
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 7 Operation 7.4 ETS parameters 7.4.1 WEM devices In order to enable data conversion for individual WEM devices, the gateway must know the number of active WEM devices and the addresses of the modules they contain. The registration of devices/modules can be done automatically or manually.
Page 15: Automatic Wem Device Search
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 7 Operation 7.4.2 Automatic WEM device search After downloading the application into the gateway by ETS, the automatic device search with address storage can be used to determine and store the number of active WEM de- vices and module addresses of the WEM system.
Page 16: General Settings
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 7 Operation 7.4.3 General settings IP configuration WEM In order to connect to the WEM system, the IP address of the WEM system device must be entered here. If DHCP is active in the system device, always make sure that the IP address of the system device assigned by the DHCP server corresponds to the IP ad- dress entered here.
Page 17: Parameters Of The Individual Wem Devices (Wtc, Sg, Etc.)
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 7 Operation 7.4.5 Parameters of the individual WEM devices (WTC, SG, etc.) Activation of group object/communication object sending For each of the WEM devices, the first thing to do is to activate the parameter and object sending.
Page 18: Communication Objects For Wtc
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 7 Operation 7.4.6 Communication objects for WTC Object name Object function Data type C R W T U Actualiz. Boiler temperature Actual value DPT9.001 - s(≥10s) Operating phase Burner Burner off DPT1.002...
Page 19 Installation and Operating Manual Data protocol converter Gateway WEM-KNX 7 Operation Object name Object function Data type C R W T U Actualiz. Pump performance Set output value DPT5.001 - m(≥60s) internal pump 19-36 83320602 ▪ 1/2021-02 ▪ Ext. PHauner...
Page 20: Communication Objects For Sg
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 7 Operation 7.4.7 Communication objects for SG Object name Object function Data type C R W T U Actualiz. System Upcoming error DPT1.002 - m(≥60s) System mode Standby DPT1.001 X X X X X m(≥60s)
Page 21 Installation and Operating Manual Data protocol converter Gateway WEM-KNX 7 Operation Object name Object function Data type C R W T U Actualiz. Pre-flow set Special level DPT9.001 X X X X X m(≥60s) temperature Su/Wi change-over Function/Off DPT1.002 X X X X X m(≥60s)
Page 22 Installation and Operating Manual Data protocol converter Gateway WEM-KNX 7 Operation Object name Object function Data type C R W T U Actualiz. Status Heating circuit 1 Comfort DPT1.002 X X - m(≥60s) Status Heating circuit 1 Normal DPT1.002 - m(≥60s) Status Heating circuit 1 Night setback DPT1.002...
Page 23: Communication Objects For Em-Hk
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 7 Operation 7.4.8 Communication objects for EM-HK Object name Object function Data type C R W T U Actualiz. Set Operating mode Standby DPT1.002 X X X X X m(≥60s) Set Operating mode Time program 1 DPT1.002...
Page 24 Installation and Operating Manual Data protocol converter Gateway WEM-KNX 7 Operation Object name Object function Data type C R W T U Actualiz. Status Input H1: DPT1.002 - m(≥60s) Night setback Status Input H1: Standby DPT1.002 - m(≥60s) Status Input H1: DPT1.002...
Page 25: Communication Objects For Em-Ww
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 7 Operation 7.4.9 Communication objects for EM-WW Object name Object function Data type C R W T U Actualiz. WW set temperature Normal DPT9.001 X X X X X m(≥60s) WW set temperature Night setback DPT9.001...
Page 26: Communication Objects For Em-Sol
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 7 Operation 7.4.10 Communication objects for EM-Sol Object name Object function Data type C R W T U Actualiz. Collector temperature Actual value DPT9.001 - s(≥10s) Storage temperature Actual value DPT9.001 - m(≥60s)
Page 27: Web Frontend
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 7 Operation 7.5 Web frontend Here, the firmware can be updated and all current device/system information (addresses, descriptions, IP settings) are shown. Also, in order not to have to press the on-device programming button on site, the programming mode of the gateway can be activated and deactivated in the web frontend (remote function).
Page 28: Firmware Update
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 7 Operation 7.6 Firmware update The web frontend must be used to make a firmware update and download the appropri- ate firmware file into the gateway. Procedure ▶ Under Update, click on 'Start' ✓...
Page 29: Programming Mode
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 7 Operation 7.7 Programming mode In order not to have to press the programming button on site or on the device, the pro- gramming mode of the gateway can also be activated and deactivated via the remote function in the web frontend.
Page 30: Commissioning
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 8 Commissioning 8 Commissioning Procedure ▶ Connect the gateway to KNX TP. ✓ Gateway works with its factory default settings. ▶ Connect the gateway to the IP network. ▶ Program the individual address (after commissioning/reset: 15.15.255).
Page 31: Download The Ets Application Program
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 8 Commissioning 8.2 Download the ETS application program Download to the gateway After downloading the individual address into the device, the application program with having the configuration set can be downloaded into the device. For downloading only the application program into the device via ETS download, the programming button does not have to be pressed.
Page 32: Maintenance
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 9 Maintenance 9 Maintenance The device is maintenance-free and its housing must not be opened. If necessary, clean the device with a dry cloth. 32-36 83320602 ▪ 1/2021-02 ▪ Ext. PHauner...
Page 33: Notes
Installation and Operating Manual Data protocol converter Gateway WEM-KNX 10 Notes 10 Notes 33-36 83320602 ▪ 1/2021-02 ▪ Ext. PHauner...
Page 34 Installation and Operating Manual Data protocol converter Gateway WEM-KNX 10 Notes Notes 34-36 83320602 ▪ 1/2021-02 ▪ Ext. PHauner...
Page 35 Installation and Operating Manual Data protocol converter Gateway WEM-KNX Keyword index Automatic WEM device search ........15 Commissioning ..............30 Communication objects ............ 18 Configuring ..............13, 27 DIN rail assembly ............. 10 Disposal ................7 ETS ................14, 30 ETS application program ..........
Page 36 Max Weishaupt GmbH ▪·88475 Schwendi Weishaupt close by? Addresses, telephone numbers etc. can be found at www.weishaupt.de We reserve the right to make changes. All rights reserved. The complete program: Reliable technology and prompt, professional service Wall-hung condensing boilers W Burners...
