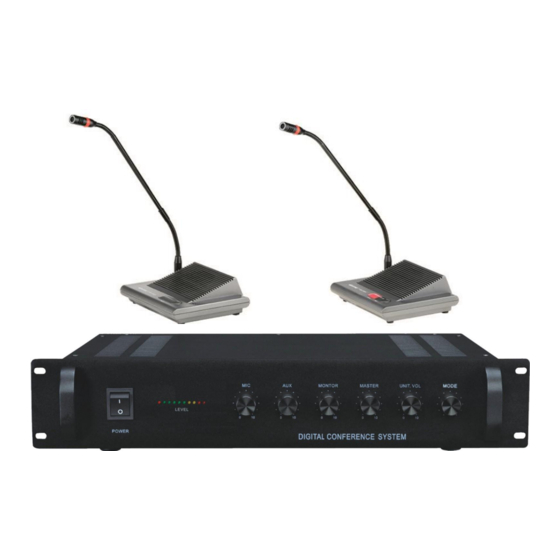

- Page 1 OWNER'S MANUAL MULTI-FUNCTIONAL CONFERENCE SYSTEM EM-600 SERIES...
- Page 2 Brief introduction This system designed by the latest digital technology in accordance with IEC914 and ISO standards. It’s a high effective Multi-functional meeting system for a meeting or conference, and it’s easy to setting-up, debugging and using without training. 1.0 System Configuration Main unit, Chairman Unit, Delegate unit, SYSTEM Cable.
- Page 3 1. Power switch 2. Wire MIC volume control 3. AUX input volume control 4. Monitor 5. Master volume control 6. Microphone volume control 7. MIC on number restriction (SET.)----1/2/3/5/free configurable 8. AUX IN 9. MASTER OUT /REC OUT 10. BAL OUT 11.
- Page 4 3.3 Schematic diagram of the meeting microphone 1. Unidirectional electret MIC 2. Annular red indicator lamp. 3. (TALK) ON/OFF button 4. Built-in loudspeaker 5. 8P DIN connection interface 6. Earphone jack. 7. Priority button. Chairman unit can turn down delegate MIC by press the priority button.
- Page 5 13. Turn on one microphone; debug the volume by VOL control in the front panel of main unit to make sure the system volume is suitable for speaking and listening. 14. Please test the function of main unit one by one first. 4.1 Operation of the delegate unit Turn on the microphone by press the button (TALK), the red indicator is on, and then the inner speaker is off, you can make a speech.
- Page 6 Caution: Please prevent the equipment dripping by water, do not put the liquid articles such as vase on the equipment. The power switch of the equipment is monopole; please pullout the plug if the will not be used for a long time. The switch has already been turn on when the power indicator lamp is on, and the switch has already been turn of when the power indicator lamp is off.
