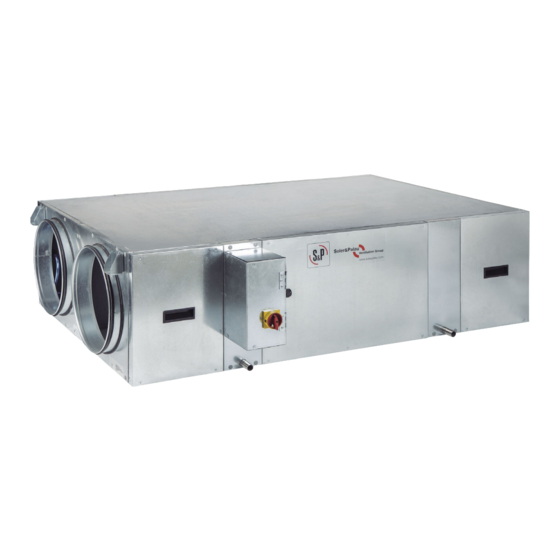

- Page 1 CAD COMPACT ECOWATT...
-
Page 3: Table Of Contents
INDEX 1. INTRODUCTION ............................4 2. SAFETY REGULATIONS AND “CE” MARKING ..................4 3. GENERAL INSTRUCTIONS ........................4 4. UNIT LABELLING ............................4 5. HANDLING ..............................5 6. INSTALLATION ............................5 6.1. Introduction ............................5 6.1.1. Outdoor installation........................6 6.2. Dimensions and free space for maintenance ..................8 6.3. Mounting process of an additional supply fi lter ................9 6.4. -
Page 4: Introduction
1. INTRODUCTION Thank you for purchasing this appliance. It has been manufactured in full compliance with applicable safety regulations and EU standards. Please read this instruction book carefully, as it contains important information for your safety during the installation, use and maintenance of this product. Keep it at hand for future reference. -
Page 5: Handling
5. HANDLING The CAD COMPACT ECOWATT units are delivered fi xed with screws to the pallets. The handling machines will be adapted to the load and the lifting conditions. In all cases, the lifting will be done at the device’s base. The centre of gravity is located at the centre of the unit. The device must be carefully manipulated only in the horizontal position. -
Page 6: Outdoor Installation
To prevent the transmission of vibrations from the unit to the rest of the installation, it is necessary that the installer use specifi c isolation elements, as well as fl exible couplings between the water connec- tions and the pipelines. Model Total weight of unit Anti vibration kit support... - Page 7 List of necessary accessories needed for outdoor mounting: Model Kit feet Roof CAD COMPACT 500 KIT PIES CAD COMPACT TPP-CAD COMPACT 500 CAD COMPACT 900 KIT PIES CAD COMPACT TPP-CAD COMPACT 900 CAD COMPACT 1300 KIT PIES CAD COMPACT TPP-CAD COMPACT 1300 CAD COMPACT 1800 KIT PIES CAD COMPACT TPP-CAD COMPACT 1800...
-
Page 8: Dimensions And Free Space For Maintenance
6.2. DIMENSIONS AND FREE SPACE FOR MAINTENANCE a) CAD-COMPACT 600 to 1800 models TOP VIEW CONFIGURATION RESULT OF SIMPLE BY DEFAULT (FACTORY SUPPLY) MODIFICATION ON SITE FAN ACCESS FAN ACCESS FAN ACCESS FAN ACCESS FILTER FILTER FILTER FILTER ACCESS ACCESS ACCESS ACCESS ELECTRICAL CABINET... -
Page 9: Mounting Process Of An Additional Supply Filter
b) CAD-COMPACT 3200 and CAD-COMPACT 4500 models TOP VIEW CONFIGURATION RESULT OF SIMPLE BY DEFAULT (FACTORY SUPPLY) MODIFICATION ON SITE FAN ACCESS FAN ACCESS FAN ACCESS FAN ACCESS FILTER FILTER FILTER FILTER ACCESS ACCESS ACCESS ACCESS ELECTRICAL CABINET OUTDOOR AIR INTAKE SUPPLY NEW AIR EXTRACT INDOOR AIR EXHAUST INDOOR AIR... -
Page 10: Range Specifications
6.4. RANGE SPECIFICATIONS Model Diameter Nominal Effi ciency Electrical Maximum Maximum Weight connections airfl ow heat recovery power supply absorbed current** (kg) 150Pa** unit* power** (mm) (kW) CAD-COMPACT 500 82,2 1/230V, 50-60Hz 0,31 CAD-COMPACT 900 82,0 1/230V, 50-60Hz 0,45 CAD-COMPACT 1300 1.120 82,3 1/230V, 50-60Hz... -
Page 11: Electrical Connection
6.6. ELECTRICAL CONNECTION The CAD-COMPACT ECOWATT range are supplied without a complete operating control integrated in the unit. The electrical components included in the unit are supplied wired in an electrical cabinet located in one side of the unit. To access the electrical terminal block and conveniently make the electrical con- nection of the accessories it is advisable to remove the connection board, follow the following sequence: 1. -
Page 12: Fan Operation Without Speed Regulation. Operation At Maximum Speed
Control wiring The wiring will depend on the needs of each installation as well as the accessories used for it. The following sections show some of the wiring used for the most common regulations: 6.6.2. Fan operation without speed regulation. Operation at maximum speed In case that electrical accessories are not used, to regulate the fans speed, it is possible to force their maximum speed by bridging the terminals + 10V and 0-10V on each fans. -
Page 13: Connecting Electrical Accessories
6.6.3. Connecting electrical accessories With the existing accessories is possible to perform the fans control as well as the automatic control in VAV (variable airfl ow) and COP (constant pressure) modes. Recommended accessories depending on the unit size and the control mode Model Accessories for the Accessories for... -
Page 14: Vav Control (Variable Airfl Ow), With Co Sensor Or Similar
Independent control of supply and extract fans 6.6.3.2. VAV Control (variable airfl ow), with CO sensor or similar CAD-COMPACT units are equipped with EC motors. The motors have specifi c terminals for sen- ding a regulation signal to control fan speed (0-10V). The 0V signal corresponds to the fan stop, while the signal of 10V corresponds to fan maximum speed. -
Page 15: 4.Cop Control (Constant Pressure)
2º Perform the electrical connection and regulator confi guration, following the instructions of the CONTROL AERO-REG accessory. 3º Reconfi gure the pressure transmitter. So that the regulation is correct and the transmitters correctly visualize the airfl ow, it is necessary that it is confi gured to work in airfl ow mode with a range of 9,999 m Adjustment to work in airfl... -
Page 16: Pressure Switch Connection
To perform the speed regulation in COP mode, it is necessary to use the accessory CONTROL AERO- REG and the external pressure sensor TDP-D. In the CONTROL AERO-REG instruction booklet it is contained the necessary information to carry on the electrical connection of the different compo- nents. - Page 17 ELECTRIC CABINET GREEN / VERDE Extract WHITE / BLANCO Filter ( P) Control pressure GREEN / VERDE Supply WHITE / BLANCO Filter ( P) Control pressure In any case, it is recommended to use a CONTROL CAD-REG or CONTROL AERO-REG control accessory that, in addition to the fi...
-
Page 18: Reverse Outdoor Air / Indoor Air Side
6.7. REVERSE OUTDOOR AIR / INDOOR AIR SIDE In models CADB-HE-D 04 to CADB-HE-D 33 it is possible to reverse the supply and extract air sides. TERMINAL BOX POSITION / EXTRACT AIR MAINTENANCE FREQUENCY CONVERTER FRESH AIR WATER CONNECTIONS DEFAULT CONFIGURATION (factory supplied) SYMMETRICAL CONFIGURATION (confi... -
Page 19: Inspection, Maintenance And Cleaning
7. INSPECTION, MAINTENANCE AND CLEANING 7.1. FILTERS REPLACEMENT The registers ubication for fi lters maintenance depends on the model and version. The exact ubication of the fi lters is identifi ed by a label in the profi le that indicates the type of fi lter and its characteristics. FALLING OBJECTS By loosening the screws that hold the panels, they will be released. -
Page 20: Heat Exchanger
7.3. HEAT EXCHANGER To perform the heat exchanger cleaning it is necessary to remove it from the unit. The disassembly can be easily done from the lateral panel: Core disassembly sequence per side To disassemble of the heat exchanger follow the following sequence: •... -
Page 21: Operation Anomalies
8. OPERATION ANOMALIES 8.1. GENERAL ANOMALIES Anomaly Cause Solution Diffi cult to start. Reduced power supply voltage. Check motor specifi cation plate. Insuffi cient static torque of motor. Close the air inlets to reach the maximum speed. Change the motor is necessary. Contact the S&P Post-Sales service. - Page 24 S&P SISTEMAS DE VENTILACIÓN, S.L.U. S&P SISTEMAS DE VENTILACIÓN, S.L.U. C. Llevant, 4 C. Llevant, 4 Polígono Industrial Llevant Polígono Industrial Llevant 08150 Parets del Vallès 08150 Parets del Vallès Barcelona - España Barcelona - España Tel. +34 93 571 93 00 Tel.
