Ambiente WF0701LSR Instructions

Instructions:
How to install a stainless steel water wall
with plastic reservoir
1. Attach both stainless steel bracket/feet on
the bottom of the water wall. (Left and right
side).
2. Place plastic lid on top of plastic reservoir.
3. Position your water wall in the middle of the
plastic lid. Mark the holes up. (Need two
people to lift and hold the feature in place.)
4. Take the wall down and drill 4 holes (2 for
each bracket) and bolt the steel feet onto the

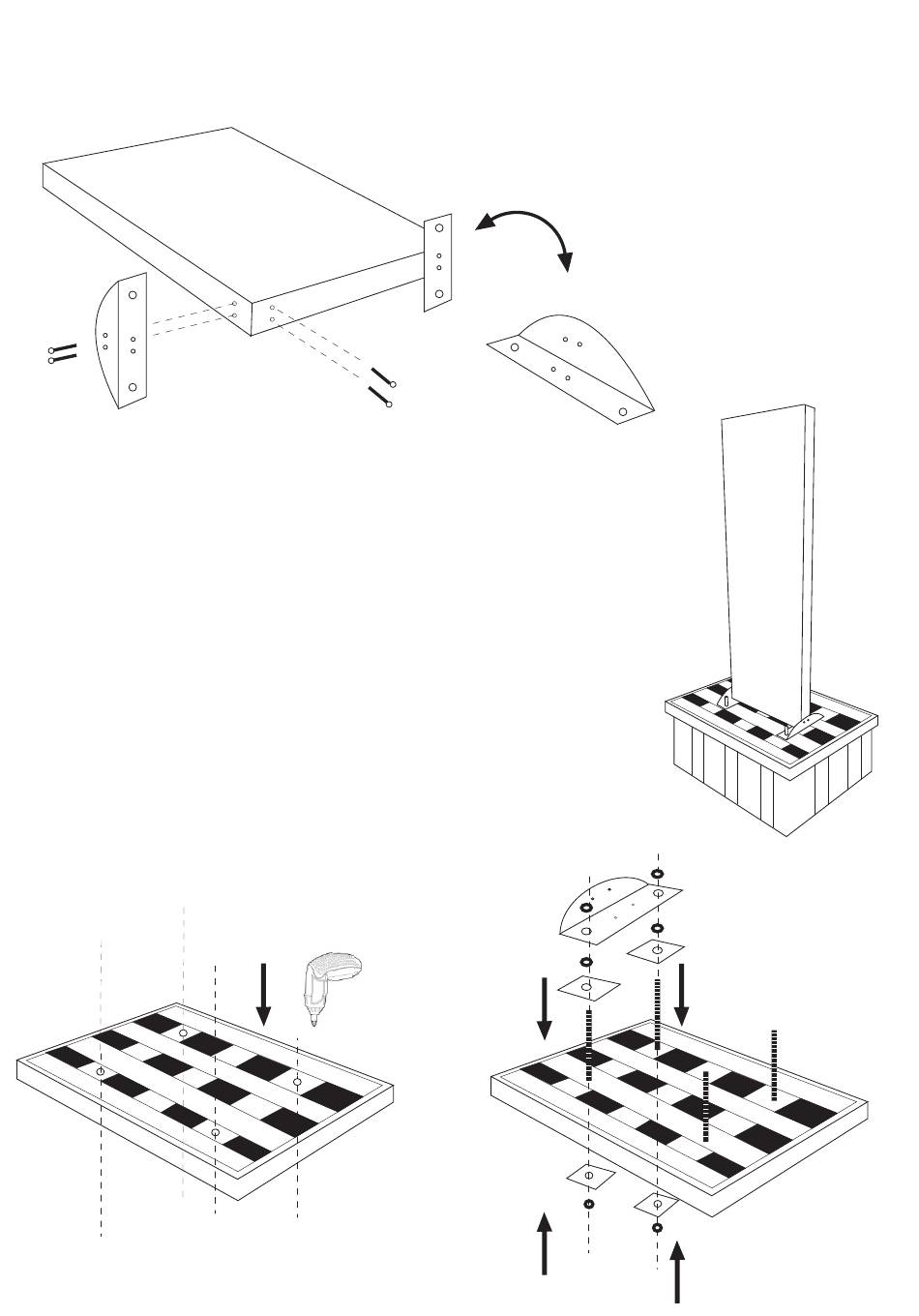

plastic lid. Please view diagram below.
Bolt the underside first and bolt the bracket
with wall last.

Contents

1 x Water wall
1 x Hose
1 x Pump
1 x Flow
adjuster
1 x Plastic grid
1 x Hose Clamp
1 x Rectangular reservoir
2 x Steel feet
4 x Metal rod
8 x Plate washers
16x Nuts
