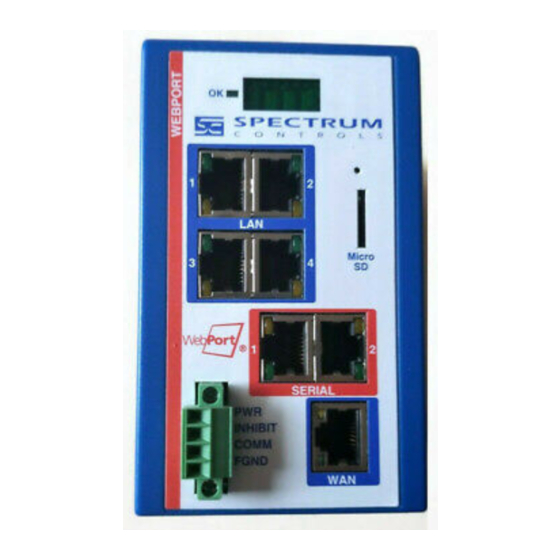

Spectrum Controls WebPort WP-R-3G-SW-0 Quick Start

Quick Start
1
For Internet
Connections
via Ethernet:
Internet
Connect an Ethernet cable from
the WAN port to your Internet service
3
Connect Power Supply
Wire size: 22-14 gauge (2 mm) stranded
Tightening torque, min 0.22 Nm (2 in/lbs.)
+24 VDC
Common
To optional
wide area
disconnect
Ground
Required from User: • Internet connection (for WAN connectivity)
• SIM card from cellular provider and cell antenna (for cellular connectivity)
• Device rating: 24VDC 0.38A (24 VDC power supply)
• All cables and wiring
Spectrum Controls, Inc. | 1705 132nd Ave NE | Bellevue, WA 98005 USA | www.spectrumcontrols.com
OR
For Internet
Connections
via Cellular:
Insert a SIM
card from
your cellular
provider
Internet
2
Screw your Connect PC to LAN Port
antenna into
place or
Connect an Ethernet cable
connect a
from the LAN port to your PC.
cable to a
Do not connect to the WAN port.
remote
antenna
4
Log In to WebPort
Models Covered: WP-R-3G-SW-0, WP-ET-SW-0*, WP-R-3G-SW-I, WP-R-4G-SW-AT
What's Next? See the other side to register your WebPort to the cloud.
Questions? Access our built-in online help.
Ambient Temperature Range: Ta 0-60C
Type your LAN IP address into your browser.
Then, enter the default username and password.
Username: admin
Password: spectrum
Create a new password for your account.
Your LAN IP address
will scroll across the
dot matrix display.
Copyright ©2017 Spectrum Controls, Inc., All rights reserved. Part No. 0100169-08 Rev A Revised 6/2019
Internet
