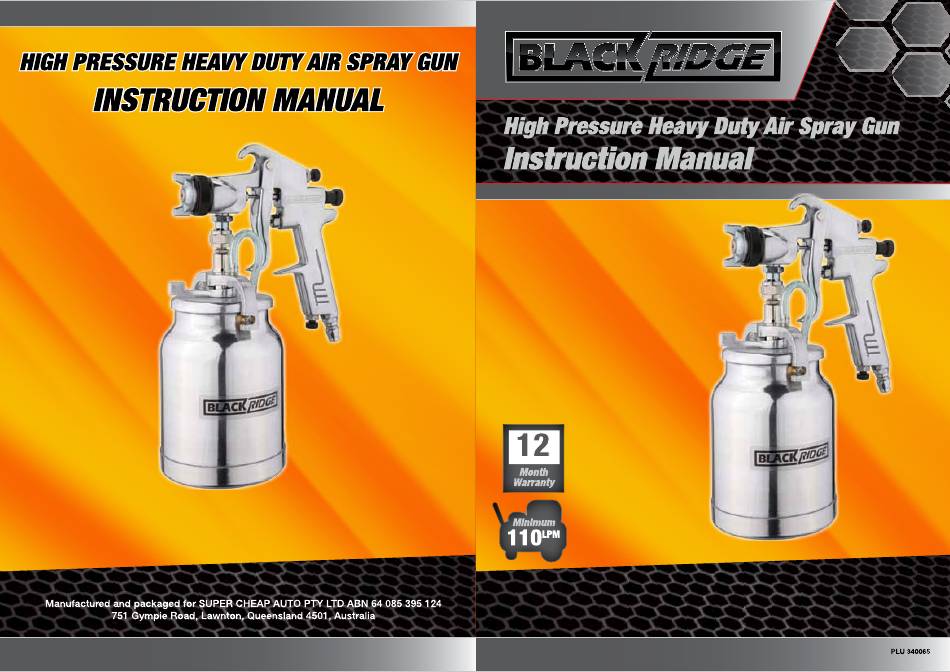

Summary of Contents for Black Ridge S-770S
- Page 2 Additional information may be requested of you to process your claim. Should you not be able to provide proof of purchase with a receipt or a bank statement, identification Model: S-770S showing your name, address and signature may be required to process your claim. Standard Nozzle: 2.0mm (nozzle size range: 1.5-2.0mm)
- Page 3 • Connect the air source hose to the gun. Make sure the air pressure does not • Wear eye protectIon. Always wear appropriate eye protection when exceed 50 PSI (3.45 BAR). operating a spray gun. • Hold the gun perpendicular to the spraying area and then move it parallel several •...
- Page 4 maIntenance parts lIst • Pour remaining paint into another container and then clean paint cup and air nozzle. Spray a small amount of thinner to clean the passage. Incomplete cleaning will cause an adverse pattern shape. Clean thoroughly, immediately after use. •...
- Page 5 no. description quantity no. description quantity NOTE: Sealing Screw O Ring 6x2.0 When spray painting consider the size of the job and the size of your air Sealing Gasket Needle Socket compressor being used. When spray painting large jobs like a fence or car, a Belt Air Valve Spring Needle Seat Drive Air compressor is recommended.
Need help?
Do you have a question about the S-770S and is the answer not in the manual?
Questions and answers
i have a 10 litre black ridge spray unit to know how to set it up
To set up the Black Ridge S-770S spray unit:
1. Connect the air source hose to the spray gun.
2. Ensure air pressure does not exceed 50 PSI (3.45 BAR).
3. Hold the gun perpendicular to the spraying area.
4. Move the gun parallel to the surface several times.
5. Start the spray stroke before pulling the trigger.
6. Release the trigger before ending the stroke.
Wear appropriate clothing and eye protection, and always use the right tool for the job.
This answer is automatically generated
